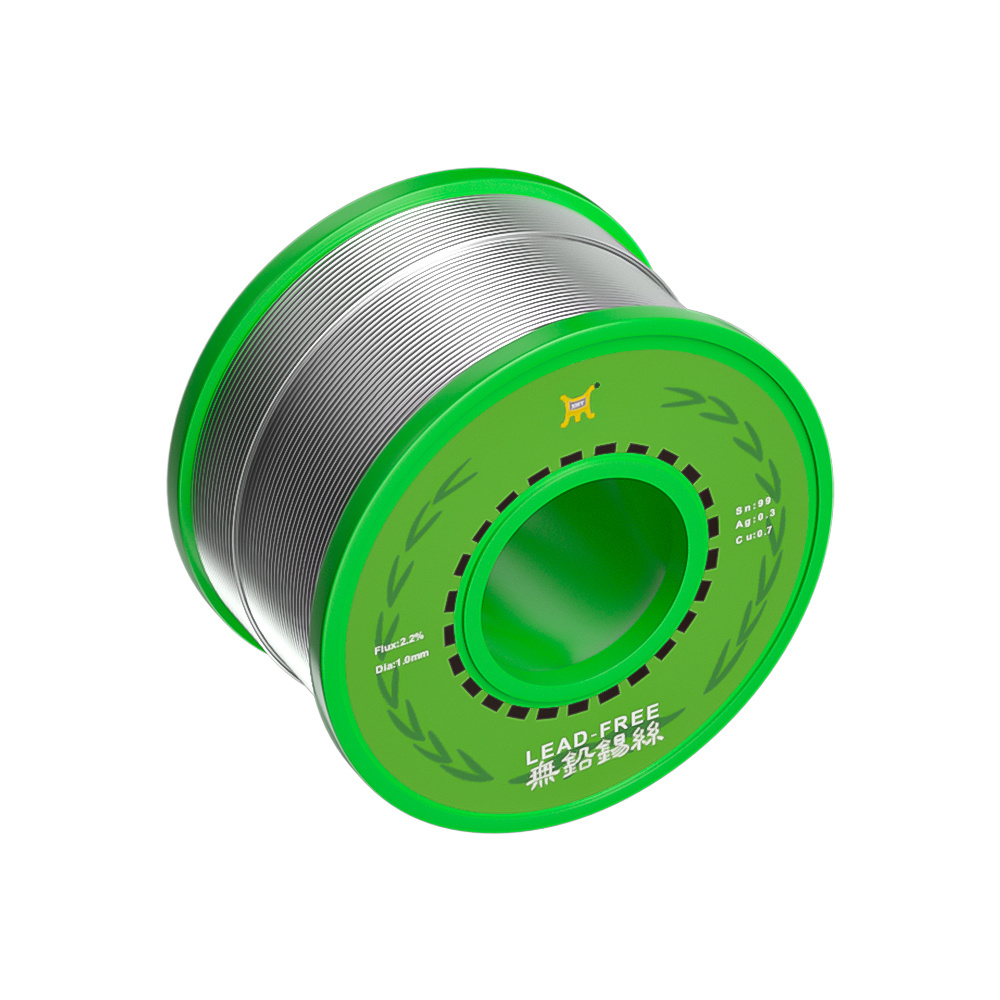

D0.12mm-D2.0mm 2%-2.2% rosin solid core Sn99Ag0.3Cu0.7 lead-free solder tin wire for electric soldering welding
D0.12mm-D2.0mm 2%-2.2% rosin solid core Sn99Ag0.3Cu0.7 lead-free solder tin wire for electric soldering welding
D0.12mm-D2.0mm 2%-2.2% rosin solid core Sn99Ag0.3Cu0.7 lead-free solder tin wire for electric soldering welding
D0.12mm-D2.0mm 2%-2.2% rosin solid core Sn99Ag0.3Cu0.7 lead-free solder tin wire for electric soldering welding
D0.12mm-D2.0mm 2%-2.2% rosin solid core Sn99Ag0.3Cu0.7 lead-free solder tin wire for electric soldering welding
D0.12mm-D2.0mm 2%-2.2% rosin solid core Sn99Ag0.3Cu0.7 lead-free solder tin wire for electric soldering welding
D0.12mm-D2.0mm 2%-2.2% rosin solid core Sn99Ag0.3Cu0.7 lead-free solder tin wire for electric soldering welding
D0.12mm-D2.0mm 2%-2.2% rosin solid core Sn99Ag0.3Cu0.7 lead-free solder tin wire for electric soldering welding

D0.12mm-D2.0mm 2%-2.2% rosin solid core Sn99Ag0.3Cu0.7 lead-free solder tin wire for electric soldering welding

FOB Reference Price: Get Latest Price
≥10 Kilograms
US $51.07
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight:
10g/roll-1000g/roll
Flux Content:
2%-2.2%
Place of Origin:
Guangdong, China
Brand Name:
XHT
Model Number:
Su99Ag0.3Cu0.7
Application:
Soldering,Welding
Product name:
Soldering welding wire
Type:
Lead-free soldering tin wire
Composition:
Sn99Ag0.3Cu0.7
Flux content:
2.2%
Advantage:
Excellent Ductility
Melt point:
217℃
Feature:
Excellent Welding Performance
Package:
Green spool
Spool materials:
Plastic

Quick Details

Material:
Su:99%,Ag:0.3%,Cu:0.7%
Diameter:
0.12mm-2.0mm
Melting Point:
217℃
Weight:
10g/roll-1000g/roll
Flux Content:
2%-2.2%
Place of Origin:
Guangdong, China
Brand Name:
XHT
Model Number:
Su99Ag0.3Cu0.7
Application:
Soldering,Welding
Product name:
Soldering welding wire
Type:
Lead-free soldering tin wire
Composition:
Sn99Ag0.3Cu0.7
Flux content:
2.2%
Advantage:
Excellent Ductility
Melt point:
217℃
Feature:
Excellent Welding Performance
Package:
Green spool
Spool materials:
Plastic
Lead-Free Solder Tin Wire
The solder wire has good wettability, fast tin loading speed, no rosin splashing during soldering, uniform rosin distribution in the wire, continuous core, small smoke, no odor, no volatile gas harmful to health, less scum of soldering iron head, no tangle of tin wire, no blockage of conduit, transparent rosin, no discoloration, high insulation resistance, low residue and no cleaning during soldering. 1. Pure tin raw material, little impurity content, bright and neat appearance of tin wire;
2. It is made of high quality pure white transparent hydrogenated rosin, free of cleaning, less residue, bright solder joint, less ion residue, clean and beautiful, high insulation resistance and high abrasion resistance;
3. International standard flux and vacuum sealing production process, good versatility, fast soldering, short wetting time, large spreading area, maximum solder activity, make copper and nickel welding materials used at the same time, greatly improve the use efficiency;
4. Environment friendly and tasteless flux, with fresh smell, less smoke, no reach controlled chemicals, no spatter during welding, less smoke and fresh smell;
5. Independent research and development and unique flux production process, the machine automatic solder smooth, no repair, as long as slightly adjust the proportion of rosin core, can be used for machine automatic solder, no tin, no repair
6.Reduce the thickness of IMC layer, make the solder joint strong and durable, strong mechanical resistance, and form a thin layer of transparent protective film on the surface of the solder joint, avoid the direct contact between the solder joint and air, keep the performance of the solder joint stable
7. One time drag welding with small spacing.
Specifications
Material
Flux
Wire Diameter
g/Roll
Roll Size
Sn99.3Cu0.7

2.0%-2.2%(Customized)
0.12mm,0.3mm,0.5mm,
0.6mm,0.8mm,1.0mm,
1.2mm,1.5mm,2.0mm
(Customized)
10g-50g/roll,
50g-200g/roll.
200-500g/roll,
500g-1000g/roll
(Customized)
45mm(D)*23mm(H),
55mm(D)*30mm(H),
55mm(D)*55mm(H),
70mm(D)*70mm(H)

Sn99Ag0.3Cu0.7
2.0%-2.2%(Customized)
0.12mm,0.3mm,0.5mm,
0.6mm,0.8mm,1.0mm,
1.2mm,1.5mm,2.0mm
(Customized)
10g-50g/roll,
50g-200g/roll.
200-500g/roll,
500g-1000g/roll
(Customized)
45mm(D)*23mm(H),
55mm(D)*30mm(H),
55mm(D)*55mm(H),
70mm(D)*70mm(H)
Sn96.5Ag3Cu0.5
2.0%-2.2%(Customized)
0.12mm,0.3mm,0.5mm,
0.6mm,0.8mm,1.0mm,
1.2mm,1.5mm,2.0mm
(Customized)
10g-50g/roll,
50g-200g/roll.
200-500g/roll,
500g-1000g/roll
(Customized)
45mm(D)*23mm(H),
55mm(D)*30mm(H),
55mm(D)*55mm(H),
70mm(D)*70mm(H)
Sn96.5Ag3.5
2.0%-2.2%(Customized)
0.12mm,0.3mm,0.5mm,
0.6mm,0.8mm,1.0mm,
1.2mm,1.5mm,2.0mm
(Customized)
10g-50g/roll,
50g-200g/roll.
200-500g/roll,
500g-1000g/roll
(Customized)
45mm(D)*23mm(H),
55mm(D)*30mm(H),
55mm(D)*55mm(H),
70mm(D)*70mm(H)
Sn99Ag0.5Cu0.5
2.0%-2.2%(Customized)
0.12mm,0.3mm,0.5mm,
0.6mm,0.8mm,1.0mm,
1.2mm,1.5mm,2.0mm
(Customized)
10g-50g/roll,
50g-200g/roll.
200-500g/roll,
500g-1000g/roll
(Customized)
45mm(D)*23mm(H),
55mm(D)*30mm(H),
55mm(D)*55mm(H),
70mm(D)*70mm(H)
Performance
Material
Melting Point
Tensile Strength
Elongation
Expansion
Sn99.3Cu0.7
227℃
30
45%
70%
Sn99Ag0.3Cu0.7
217℃
40
58%
78%
Sn96.5Ag3Cu0.5
217℃
40
58%
78%
Sn96.5Ag3.5
222℃
38
54%
75%
Sn99Ag0.5Cu0.5
217℃
40
58%
78%
