Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Voltage:
-
AC380V/50HZ, 3PH
-
Dimension(L*W*H):
-
3200*2150*1850mm
-
Power (kW):
-
5
-
Weight (KG):
-
1500
-
Item:
-
1325 cnc router
-
color:
-
white (You can customize)
-
Working Area:
-
1300*2500*200mm
-
Spindle power:
-
3.0KW air cooling spindle ( Water for choose )
-
Inverter:
-
3.7KW Delta or Fuling Inverter
-
Drive and Motor:
-
Stepper motors and drivers
-
Transmission:
-
XY-axis:rack and gear Z-axis:ball screw
-
Controller:
-
DSP
-
Software:
-
Artcam/Type3
-
Guild Rail:
-
Taiwan HIWIN Square Linear Rail
-
After-sales Service Provided:
-
Online support
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Showroom Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
-
Marketing Type:
-
New Product 2021
-
Certification:
-
CE certification
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Voltage:
-
AC380V/50HZ, 3PH
-
Dimension(L*W*H):
-
3200*2150*1850mm
-
Power (kW):
-
5
-
Weight (KG):
-
1500
-
Item:
-
1325 cnc router
-
color:
-
white (You can customize)
-
Working Area:
-
1300*2500*200mm
-
Spindle power:
-
3.0KW air cooling spindle ( Water for choose )
-
Inverter:
-
3.7KW Delta or Fuling Inverter
-
Drive and Motor:
-
Stepper motors and drivers
-
Transmission:
-
XY-axis:rack and gear Z-axis:ball screw
-
Controller:
-
DSP
-
Software:
-
Artcam/Type3
-
Guild Rail:
-
Taiwan HIWIN Square Linear Rail
-
After-sales Service Provided:
-
Online support
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Showroom Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
-
Marketing Type:
-
New Product 2021
-
Certification:
-
CE certification
Hot selling! high quality aluminum profile T-slot talle with water tank low cost pcb prototype machine

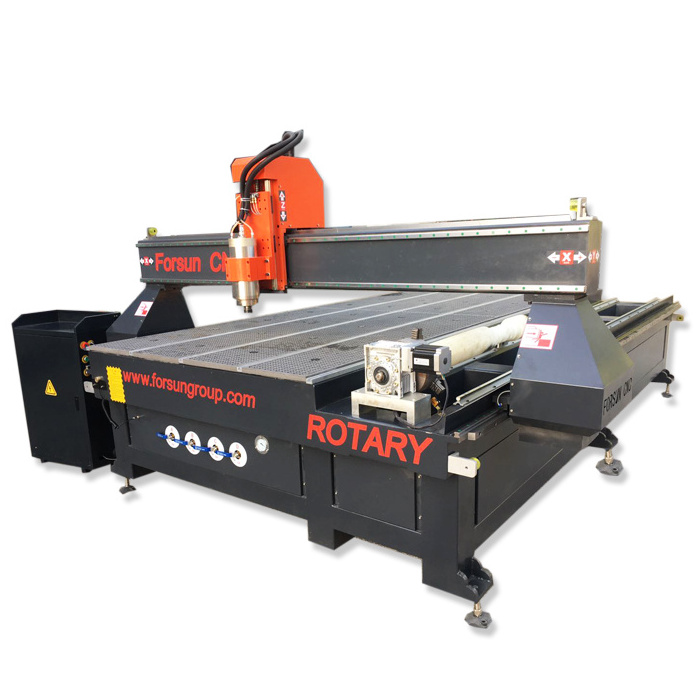

What is the feature of 1325 cnc router?
♦ 1300x2500x200mm working size
♦ 3.0kw water cooling spindle
♦ T-slot vacuum working table
♦ HIWIN Linear guide
♦ DSP controller online
♦ Stepper motor and driver
♦ Beta interver
♦ Rotary axis
♦ Automatic Tool Calibration
♦ ArtCam software
WHAT are the Option of our CNC?
♥ Vacuum System
♥ Dust Collector system
♥ AC Servo motors
♥ HSD Spindle
Technical Parameters of 1325 cnc machine
|
NO. |
Items |
Parameters |
Option |
||
|
1 |
Working Area |
XYZ |
1300*2500*200mm |
≤5000mm |
|
|
3 |
Table Type |
Vacuum table |
T-Slot Extrusion PVC |
||
|
4 |
Accuracy |
Working Accuracy |
±0.03/300mm |
||
|
Repositioning Accuracy |
±0.02/300mm |
||||
|
6 |
Drive system |
X,Y with Rack and Pinion Z with lead screw |
|||
|
7 |
Speed |
MAX Traveling Speed |
32000mm/min |
||
|
MAX Working Speed |
15000mm/min |
||||
|
8 |
Spindle |
Spindle Power |
3.0 KW water cooling spindle |
Italian HSD Spindle |
|
|
Spindle Speed |
0-24000r/min Stepper |
Servo |
|||
|
10 |
Drive and Motor |
||||
|
12 |
Working Voltage |
AC380V/50Hz |
AC220V/60Hz |
||
|
14 |
Operating System |
DSP |
NC Stuidio |
||
|
15 |
Net Weight/Gross Weight |
1060 KG/1180 KG |
|||
|
16 |
Packing size |
3750*2150*1850mm
|
|||
WHAT is the Benefit of woodworking cnc router ?
1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair,
doors and windows.
2) The wood products: voice box, game cabinets, computer tables, sewing machines
table, instruments.
3) Plate processing:
insulation part, plastic chemical components, PCB, inner body
of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other
carbon mixed compounds.
4) Decorate industry:
Acrylic, PVC, MDF, artificial stone, organic glass, plastic and
soft metals such as copper, aluminum process.
HOW we Pack our cnc router?
What is the Services of our cnc router ?
Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.
Why choose us?
Customer visit our cnc router
Q1:How long is the delivery time of this cnc milling machine?
For standard machines, it would be 7-15 days;
For non-standard machines and customized machines according to client s specific requirements,
it would be 15 to 30 days.
Q2: What mode of payment for this cnc milling machine?
T/T, 50% deposit and the balance 50% should be paid before shipment.
Q3: If some problems happened to this cnc milling machine during warranty
period, what should i do?
We will supply free parts in machine warranty period if machine have some problem. While we
also supply free after-service forever,so any doubts,just let us know,we will give you solutions in 30 minutes.
|
