Quick Details
-
Application:
-
Sports Venues
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHONGLIAN
-
Model Number:
-
Glass Wool
-
Type:
-
Fiberglass, Glass Wool Products
-
Product Name:
-
fiber glass wool
-
Color:
-
Yellow
-
Thickness:
-
25-150 mm
-
Density:
-
10-48kg/m3
-
Width:
-
1.2m
-
Length:
-
5-30m
-
Function:
-
Thermal Preservation
-
Surface:
-
Aluminum Foil Surface(customizable)
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Sports Venues
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHONGLIAN
-
Model Number:
-
Glass Wool
-
Type:
-
Fiberglass, Glass Wool Products
-
Product Name:
-
fiber glass wool
-
Color:
-
Yellow
-
Thickness:
-
25-150 mm
-
Density:
-
10-48kg/m3
-
Width:
-
1.2m
-
Length:
-
5-30m
-
Function:
-
Thermal Preservation
-
Surface:
-
Aluminum Foil Surface(customizable)

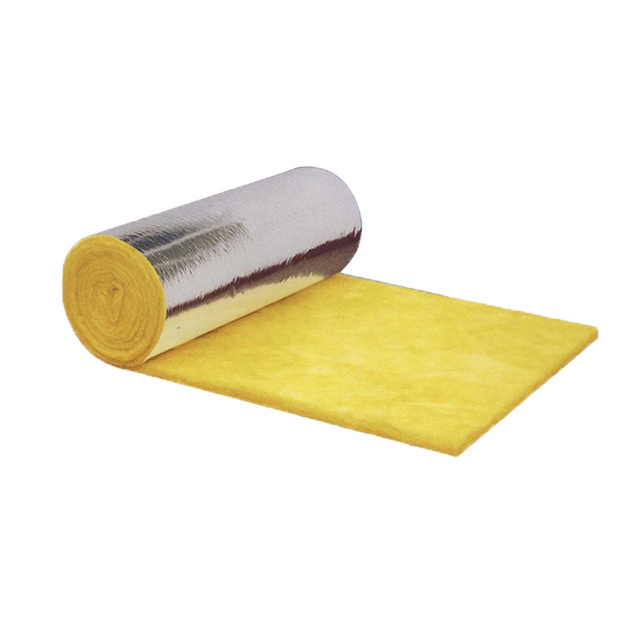

heat insulation fiberglass sound insulation fireproof glass wool with aluminium foil
Glass Wool widely used in industrial plants, warehouses, public facilities, exhibition centers, shopping centers, cold stores and a variety of indoor playgrounds, sports grounds and other buildings.
Distinctive advantages:
* CE certificate Grade A1 fireproof
* Unique technology; rebound degree after compressive packing is up to 99.2%.
* Soft and long glass fibers can maximally lessen flying catkins in the construction.
* Sound absorption and noise reduction; it can effectively prevent sound from spreading.
* Grade A1 incombustible materials.
* Easy for construction; cutting at will.
* Antisepsis, ageing resistance, and anticorrosion, ensuring a healthy environment.
* Low moisture absorption; stable physical properties.
|
Product specification: |
||||
|
Product |
Length(mm) |
Width(Diameter)(mm) |
Thickness(mm) |
Density(kg/m3) |
|
Blanket in roll |
10000-30000 |
1200 (600/400) |
25-150 |
10,12,16,20,24,32 ,40,48 |
|
Boards (Slab) |
1200-2200 |
600-1200 |
20-100 |
24-96 |
|
Pipe Sections |
1000 |
15-400 |
20-100 |
45-90 |
|
Note: Products of special specification can be made upon customer requests Different type of facing can be applied upon customer request |
||||
Technical Parameters:
|
item |
unit |
index |
measured value |
remarks |
|
bulk density |
kg/m 3 |
10-96 |
10-96 |
GB/T 13350-2000 |
|
average diameter of fibers |
m |
< 8.0 |
4.0-6.0 |
GB/T 13350-2000 |
|
moisture resistivity |
% |
> 98 |
> 98.5 |
JISA9512-2000 |
|
thermal conductivity |
W/m.k |
0.049-0.042 |
0.045-0.032 |
GB/T 13350-2000 |
|
incombustibility |
|
incombustible |
up to standard (Grade A) |
GB/T 13350-2000 |
|
sound absorption coefficient |
|
|
1.03product reverberation positioning 24kg/m 3 2000HZ |
GB/J47-83 |
|
Max. working temperature |
|
400 |
410 |
GB/T 13350-2000 |
