Quick Details
-
Production Capacity:
-
High Speed
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
JCX
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
5250*3230*2530mm
-
Weight:
-
3500 kg
-
X-axis travel:
-
Width 3200mm
-
Y- axis travel:
-
Length 2000mm
-
Blade diameter:
-
600mm
-
Motor power:
-
18KW(also can be customized)
-
Motor:
-
water comes out from the center of the motor
-
Cutting thickness:
-
within 50mm
-
Control system:
-
Update the latest five axis system
-
Driving mode:
-
High precision servo control
Quick Details
-
Type:
-

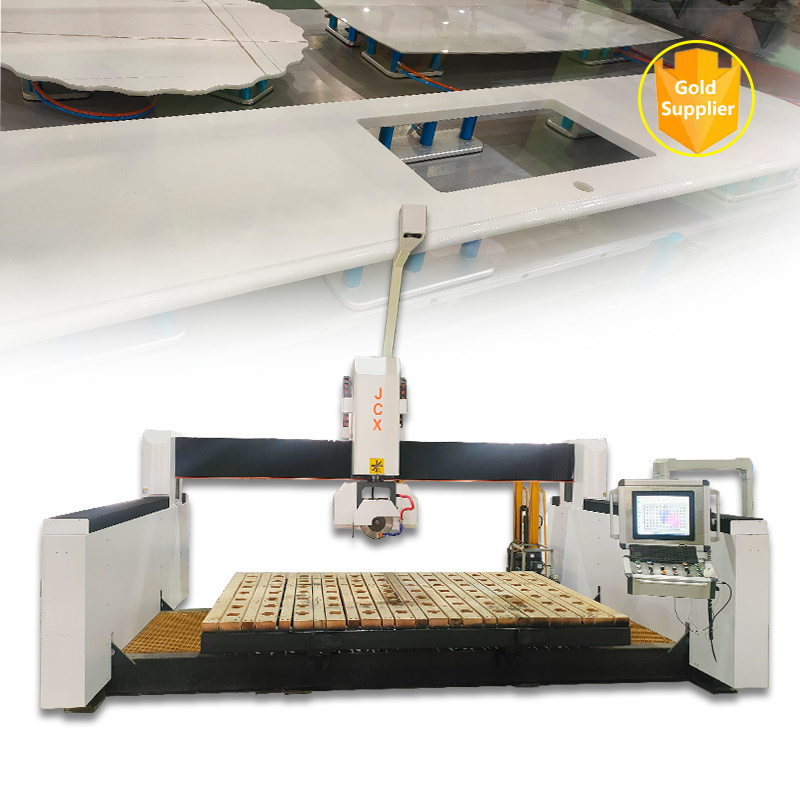

Stone Cutting Machine
-
Power:
-
11KW
-
Cutting thickness (max):
-
50mm
-
Production Capacity:
-
High Speed
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
JCX
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
5250*3230*2530mm
-
Weight:
-
3500 kg
-
X-axis travel:
-
Width 3200mm
-
Y- axis travel:
-
Length 2000mm
-
Blade diameter:
-
600mm
-
Motor power:
-
18KW(also can be customized)
-
Motor:
-
water comes out from the center of the motor
-
Cutting thickness:
-
within 50mm
-
Control system:
-
Update the latest five axis system
-
Driving mode:
-
High precision servo control
|
X-axis travel
|
Width 3200mm
|
|
Y- axis travel
|
Length 2000mm
|
|
Blade diameter
|
600mm
|
|
Bed frame
|
Seamless welding ,aging treatment, five
faces milling machine processing
|
|
Surface treatment
|
High temperature spray to prevent paint from falling off
|
|
Cutting thickness
|
within 50mm
|
|
Transmission mode
|
High wear resistant widened square rail
+ X,Y axis gear rack , Z axis ball screw
|
|
Transmission mode
|
High wear resistant widened square rail + imported high precision ball screw
|
|
Driving mode
|
High precision servo control
|
|
Cutting motor
|
Saw + tools ,
waterproof and high temperature resistant
|
|
Motor
|
water comes out from the center of the motor
|
|
Cutting speed
|
1-2500mm/min （based on thickness of material）
|
|
Cutting efficiency
|
8 hours can cut 300 square meters of stone products with 400mm blade diameter
|
|
Motor power
|
18KW（also can be customized ）
|
|
Control system
|
Upgrade the latest five axis system(poly3+cad)
|
|
Programming mode
|
Modify data directly in operating system
|
|
Platform rotation angle
|
0-85 degrees
|
|
Head rotation angel
|
0-360 degrees
|
|
Head tilt angel
|
Any angel within 0-90 degrees
|
|
Engravable head length
|
10-13cm
|
|
Vacuum manipulation
|
With vacuum manipulation function
|
|
Table
|
Hydraulic, thickened wooden table ，add universal wheel
|
|
Oiling method
|
Automatic oiling and lubrication
|
|
Tools box
|
One saw blade, wrench, wearing parts
|
|
Dimensions
|
L 5250mm, W3230mm, H 2530mm
|
|
Weight
|
3500kg
|
PS: All the working area and specifications can be customized according to your requests.
