Quick Details
-
Model:
-
STW 700
-
Frequency:
-
5-5.8GHz
-
Transmission Power:
-
20dBm
-
Interface:
-
SDI/MINI USB
-
Color:
-
Black & Gold
-
Application:
-
audio video transmission/film producction
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ST VIDEO
-
Model Number:
-
STW 700
-
Model:
-
STW 700
-
Frequency:
-
5-5.8GHz
-
Transmission Power:
-
20dBm
-
Interface:
-
SDI/MINI USB
-
Color:
-
Black & Gold
-
Application:
-
audio video transmission/film producction
HD SDI HDMI Wireless Video Transmission System
(It use for wireless video audio transmission in a shooting. It is widely used in film production, live broadcast shooting activities.)
5-5.8GHz
Full HD 1080p
300-700m Long-range
11 channels
Plug Play
Through Wall
No Latency
No compression
1 transmitter to multiple receivers
Spare parts are available with cheaper price

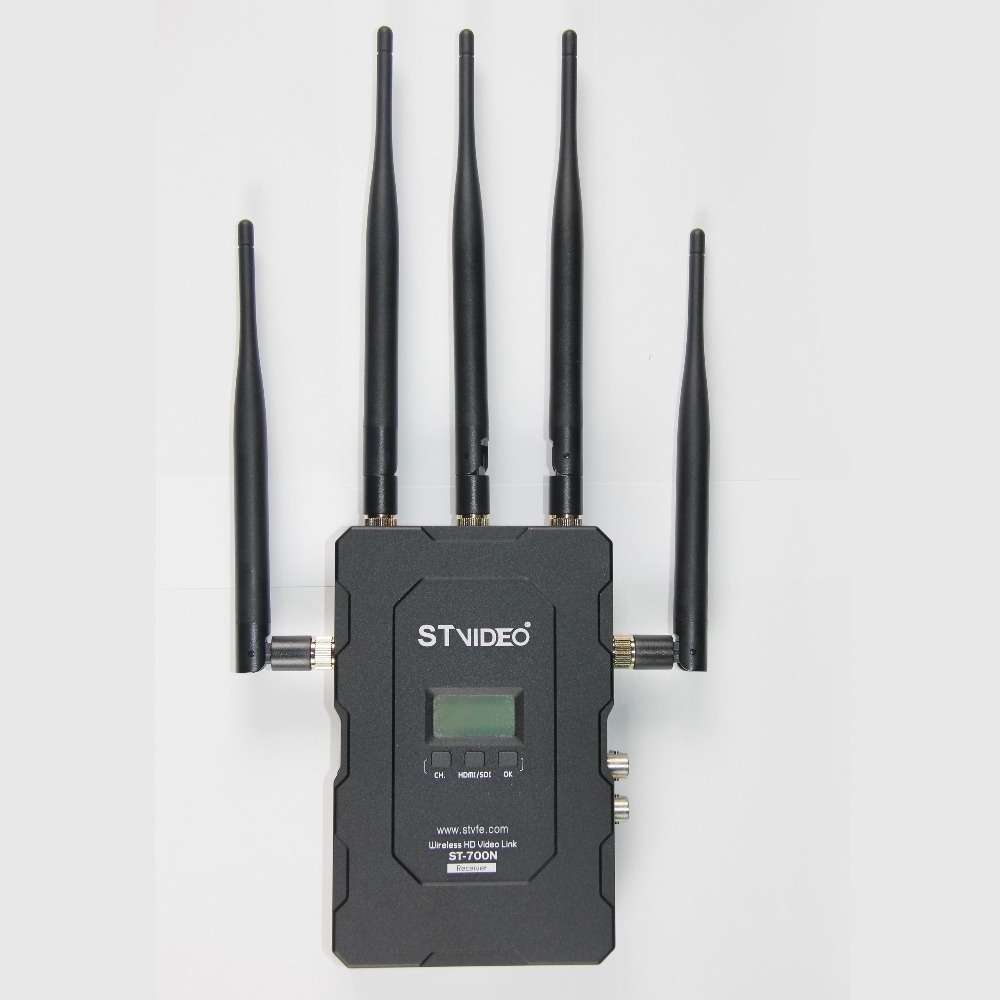

Wireless HD Transmitter & Wireless HD Receiver:
Specifications:
- Frequency : 5-5.8GHz
- TX Transmission Power : 20dBm
- Antenna of transmitter: External antenna×2
- Antenna of receiver : External antenna×5
- RX Transmission Power : -70dBm
- Band width : 40MHz
- Video Formats : 1080p 23.98/24/25/30/50/60 , 1080psf23.98/24/25 , 1080i50/59.94/60 , 720p 50/59.94/60 , 576p 576i 480p 480i
- Audio Fromats : PCM, DTS-HD, Dolby TrueHD
- Transmission Distance : 300m-700m(line of sight)
- Interface : HDMI IN;SDI IN; SDI LOOP; Mini USB; LEMO(OB/2core); POWER IN; RPSMA Antenna; Power Switch
- Mounting Interface : 1/4 inch screw, V-mount
- LCD screen dispaly : Frequency;Channel;etc.
- Working Voltage : DC 6V-17V
- Power Consumption : 7-8W
- Temperature : -10~50Celcius (Working), -40~80Celcius (Storage)
Features:
- Support SDI/HDMI output from digital movie camera, HD video camera and other professional devices.
-
Real-time wireless HD video transmission with very low latency less than 1ms.
-
Wireless transmission distance :300-700meters (
Line of sight
).
-
Built-in LCD screen displays device status and information.
-
No software needed, full hardware for plug&play.
Functions:
- Aminon clip, WHDI (no delay and no compression).
MIMO ( Multiple-Input Multiple-Output ) technology.
OFDM ( Orthogonal Frequency Division Multiplexing ) modulation to realize a better wireless transmission effect
- It support standard V-mount, 1/4screw and hot shoe for transmitter installment.
Images
Packing content
Crush resistance packing case
Other HD Wireless transmission system
100m (HDMI) / 120m-200m (HDMI/SDI)
