Quick Details
-
Voltage:
-
380V/220V/440V
-
Current:
-
50A
-
Rated Capacity:
-
50000uA
-
Rated Duty Cycle:
-
50%
-
Dimensions:
-
customized
-
Use:
-
welding/solding/handing
-
DOF:
-
6
-
Driving Mode:
-
AC servo driving
-
Effective Load (kg):
-
6-165
-
Repeat Positioning Accuracy (mm):
-
±0.05
-
Motion Range (°):
-
±360
-
Max Speed (°/S):
-
270
-
Moving Radius (mm):
-
893
-
Machine Weight:
-
75kg
-
Certification:
-
CE, Rosh
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hwashi
-
Weight (KG):
-
500
-
Voltage:
-
380V/220V/440V
-
Current:
-
50A
-
Rated Capacity:
-
50000uA
-
Rated Duty Cycle:
-
50%
-
Dimensions:
-
customized
-
Use:
-
welding/solding/handing
-
DOF:
-
6
-
Driving Mode:
-
AC servo driving
-
Effective Load (kg):
-
6-165
-
Repeat Positioning Accuracy (mm):
-
±0.05
-
Motion Range (°):
-
±360
-
Max Speed (°/S):
-
270
-
Moving Radius (mm):
-
893
-
Machine Weight:
-
75kg
-
Certification:
-
CE, Rosh

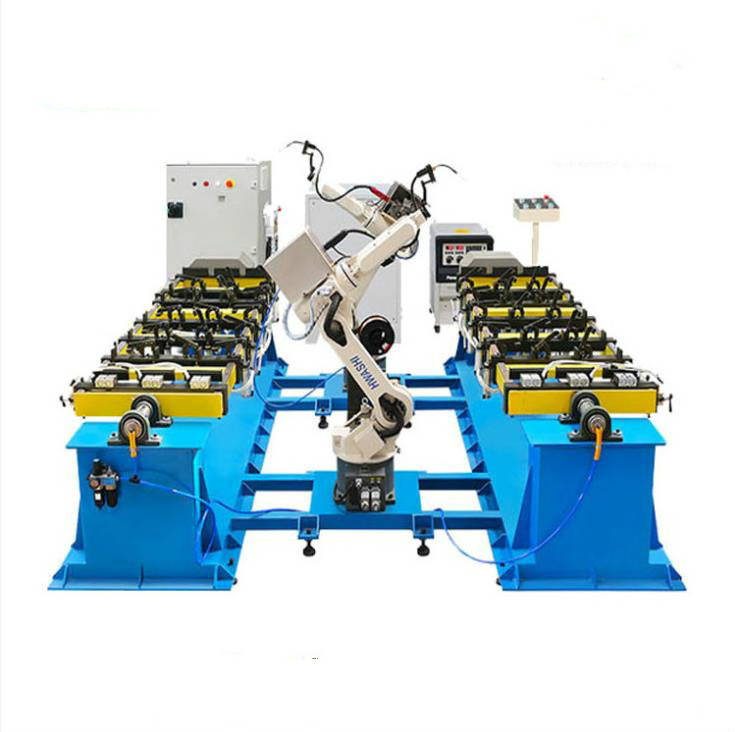

HWASHI CNC System 6 Axis tig mig Aluminium & Steel automated Scaffolding Welding Robot Price
Whatsapp: +8618680389568
Wechat: willsteed
Scaffolding samples
Descriptions:
|
Vertical Reach |
To mounting face |
885mm |
|
To wrist center |
820mm |
|
|
Axis Rotation |
J1 |
±175° |
|
J2 |
+64°/-142° |
|
|
J3 |
+165°/-73° |
|
|
J4 |
±178° |
|
|
J5 |
±132° |
|
|
J6 |
±720° |
|
|
Max Horizontal Reach |
1722mm |
|
|
Allowed torque |
J4 |
42 N*m |
|
J5 |
42 N*m |
|
|
J6 |
20 N*m |
|
|
Allowed Inertia |
J4 |
1.18 kg . m |
|
J5 |
1.18 kg . m |
|
|
J6 |
0.5 kg . m |
|
|
Environment |
Temperature |
0-45℃ |
|
Humidity |
20~80% RH(no condensation) |
|
|
Other |
Keep away from: Flammable/corrosive gases Flammable/corrosive Solvents Water or oil and powder dust Sources of electric noise |
|
|
Weight |
200-250 kg |
|
|
Safety Regulations Arm |
IP65 |
|
|
Safety Regulations Electric cabinet |
IP43 |
|
Any questions or request, please let me know, I am sure to help!!!
