Product name:
-
ODF Fiber Optic Distribution Frame Patch Panel
-
CABLE Type:
-
G657A G652D
-
Connector Type:
-
FC SC ST LC
-
Insertion Loss:
-
SM≤0.3db MM≤0.4db
-
Return Loss:
-
SM:≥50dB(PC) (≥55dB UPC) ≥ 60dB(APC) MM:≥35dB
-
Working temperature:
-
-40℃ ~+85℃
-
Ports:
-
2-288
-
Chassis type:
-
19 inches 1/2/3/4 U Drawer type
-
Chassis Material:
-
Cold Rolled Steel or Aluminum
-
Durability:
-
≥1000 times
Quick Details
-
Type:
-
Fiber optic patch panel
-
Model Number:
-
SM MM
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Wanchuang&OEM
-
Use:
-
FTTH,CATV,FTTX,etc.
-
Warranty Time:
-
3 year
-
Product name:
-
ODF Fiber Optic Distribution Frame Patch Panel
-
CABLE Type:
-
G657A G652D
-
Connector Type:
-
FC SC ST LC
-
Insertion Loss:
-
SM≤0.3db MM≤0.4db
-
Return Loss:
-
SM:≥50dB(PC) (≥55dB UPC) ≥ 60dB(APC) MM:≥35dB
-
Working temperature:
-
-40℃ ~+85℃
-
Ports:
-
2-288
-
Chassis type:
-
19 inches 1/2/3/4 U Drawer type
-
Chassis Material:
-
Cold Rolled Steel or Aluminum
-
Durability:
-
≥1000 times
Product Description
Customizable

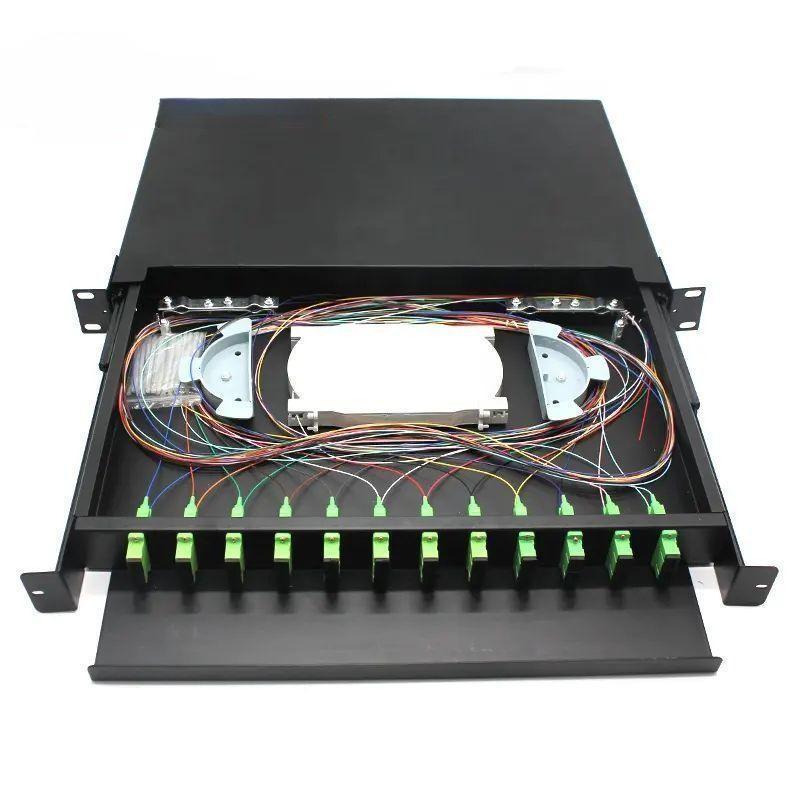

FTTH 8 12 24 32 48 96 144 port Wall Mounted and rack-mounted Optical ODF Fiber Optic Distribution Frame Patch Panel
Description
ODF is mainly used for cable inlet, grounding and fixing and the splicing between the terminal end and pigtail. Users can select unit or ring flange amount according to their practical needs.
Application
* 1.Telecommunications subscriber loop
* Fiber to the home (FTTH)
* LAN/WAN
* CATV
Features
* Applied to various of optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.
* With splice trays in the box and integrate heat sealing and wiring into one.
* Apply double-sided structured optical fiber splice tray to make full use of the two sides of the board.
* It’s suitable for ribbon or non-ribbon optical fiber cable.
* Every tray can be clamped with 12FC/SC/ST adaptors.
* Install adaptors on the face side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent eyes from being damaged by laser light at the same time.
ODF is mainly used for cable inlet, grounding and fixing and the splicing between the terminal end and pigtail. Users can select unit or ring flange amount according to their practical needs.
Application
* 1.Telecommunications subscriber loop
* Fiber to the home (FTTH)
* LAN/WAN
* CATV
Features
* Applied to various of optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.
* With splice trays in the box and integrate heat sealing and wiring into one.
* Apply double-sided structured optical fiber splice tray to make full use of the two sides of the board.
* It’s suitable for ribbon or non-ribbon optical fiber cable.
* Every tray can be clamped with 12FC/SC/ST adaptors.
* Install adaptors on the face side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent eyes from being damaged by laser light at the same time.
Specification
|
Product name
|
ODF Fiber Optic Distribution Frame Patch Panel
|
|
Fiber Type
|
SM MM
|
|
Warranty Time
|
3 year
|
|
Type
|
Sliding Fixed
|
|
CABLE Type
|
G657A G652D
|
|
Connector Type
|
FC SC ST LC
|
|
Insertion Loss
|
SM≤0.3db MM≤0.4db
|
|
Return Loss
|
SM:≥50dB(PC) (≥55dB UPC) ≥ 60dB(APC) MM:≥35dB
|
|
Mating Durability
|
≤0.2db
|
|
Tensile Strength
|
70N
|
|
Working temperature
|
-40℃ ~+85℃
|
|
Ports
|
2-288
|
|
Chassis type
|
19 inches 1/2/3/4U Drawer type
|
|
Chassis Material
|
Cold Rolled Steel or Aluminum
|
|
Durability
|
≥1000 times
|
|
ODF product structure
|
Cable ties, mounting ear screws, and spiral wrap tube
|
Packing & Delivery
Packaging detail:
5pcs/Carton
(your request is available )
Delivery time
:7-30 days after payment(According to the quantity)
