Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ROUTERSTAR
-
Voltage:
-
AC380V 50/60HZ
-
Dimension(L*W*H):
-
3150*2100*1600mm
-
Power (kW):
-
9
-
Weight (KG):
-
1200
-
Product name:
-
China ATC CNC router engraving machine for wooden door side drilling
-
Control system:
-
DSP A15
-
Spindle:
-
4.5 kw air cooling spindle
-
Application:
-
Woodworking furniture
-
Transmission:
-
Gear Rack
-
Working area:
-
1300x2500mm
-
Software:
-
Artcam
-
vacuum table button:
-
manual control
-
vacuum zone:
-
6 zones
-
dust collector:
-
3kw double bag
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ROUTERSTAR
-
Voltage:
-
AC380V 50/60HZ
-
Dimension(L*W*H):
-
3150*2100*1600mm
-
Power (kW):
-
9
-
Weight (KG):
-
1200
-
Product name:
-
China ATC CNC router engraving machine for wooden door side drilling
-
Control system:
-
DSP A15
-
Spindle:
-
4.5 kw air cooling spindle
-
Application:
-
Woodworking furniture
-
Transmission:
-
Gear Rack
-
Working area:
-
1300x2500mm
-
Software:
-
Artcam
-
vacuum table button:
-
manual control
-
vacuum zone:
-
6 zones
-
dust collector:
-
3kw double bag

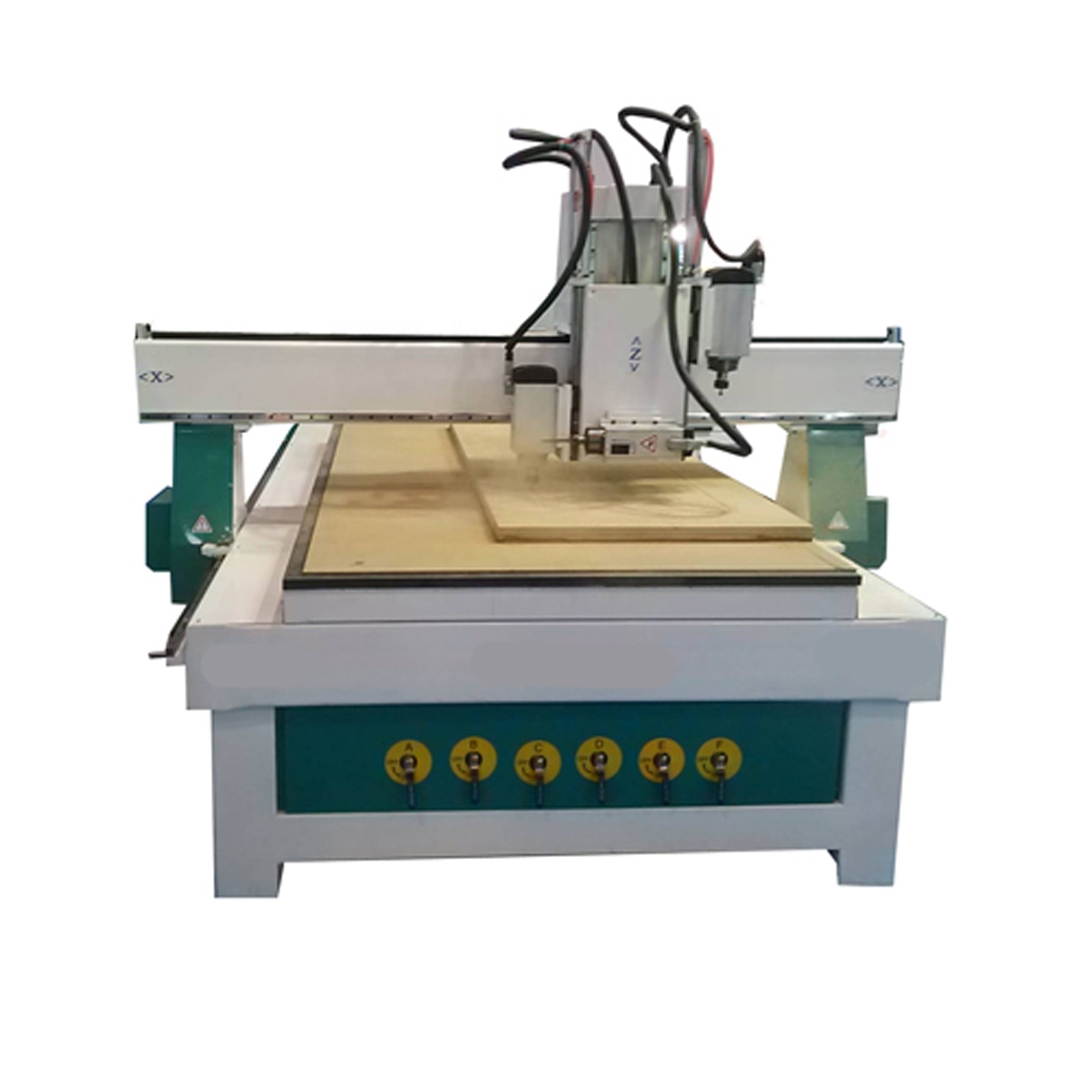

China ATC CNC router engraving machine for wooden door side drilling
1. pictures:
2. Application:
Wood furniture industry, furniture decoration industry, wood crafts making industry, large area p late pla ne carving, solid wood, Solid wood art murals, MDF Paint-free doors, composite doors, cabinet windows door, bedside cabinets, screen carving etc.
Mould industry: can engrave all kinds of molds, wooden molds, aviation wooden molds, propellers, automotive foam molds and other non-metallic.
Advertising industry: Acrylic cut, name plate make, photo frame making, foam model make,
3.Machine parts details:
COnfiguration:
1300*2500*200mm size
Helical gear for XY axis, Z axis TBI ballscrew
China servo motor and driver: higher precision , less working noise,
4.5kw air cooling spindle,*3:air cooling spindle more suitable for cold area which the water pump easy freeze. two vertical spindle for flat cutting and carving, one horizental spindle for side drilling.
3.7kw F&L inverter
Vacuum table with 5.5kw water pump: suitable for large lots plate processing, more easier to stable the plate.
DSP A11 control system
Dust collector 3kw double bag
Highlight of this model:
It is with 3 spindles which can automatic changing tools.
More suitable for making one drawing but need 3 kinds of cutter can complete.
Reduced the procedure that change the tools frequently with the single spindle cnc router machine, save time, do more work for you.
Meantime, it belong to an high cost-performance cnc router compared with the real ATC cnc router(Linear type and Disc type), save cost for you!
Optional parts:
4. Parameters:
|
Model Number |
P rocessing length |
P rocessing width |
M achine size |
P ackage size |
|
TJ1325AT-3 cnc router |
2500mm |
1300mm |
3.1 *2.1*1.5m |
3.2*2.2*1.7m |
|
D riving motor |
D river |
T able type |
|
C ontrol system |
|
Micro step motor 450B (Japan servo optional) |
S tep driver Yako 2811 (Japan servo optional) |
V acuum table with pump |
|
DSP 3 axis
|
|
XY axis T ransmission way |
Z axis transmission way |
O rbit |
Machine body material |
D ust collect |
|
Helical gear |
TBI ballscrew |
Taiwan Hiwin square orbit |
Welding steel pipe |
with |
|
C arving spindle power |
C arving spindle speed |
F requency converter for carving spindle |
M ax moving speed |
M ax cuting speed |
|
3.5kw air cooling C&S brand |
0-18000r/min |
China F&L brand 3.7kw |
35m/min |
15-25m/min |
|
Max carving speed |
W orking efficiency |
P ower supply |
Net weight |
Gross Weight |
|
15-20mm/min |
0.02mm |
AC380V 50HZ (can custom 220V) |
1500kgs |
1600kgs |
5. Working samples:
6. working videos:
1. All detailed consulting service before sale.
2. 12 month quality guarantee time after sale, the machine main parts ( excluding the consumable parts ) broken which is not caused by manmade, we will send you a new one for free during the guarantee term(but need you help return back the old part).
3. Free training at our factory.
4. will supply you parts at cost price.
5. 24 hours on line service each day, free technique support all lifespan.
our staff can come to your place for training or adjust
