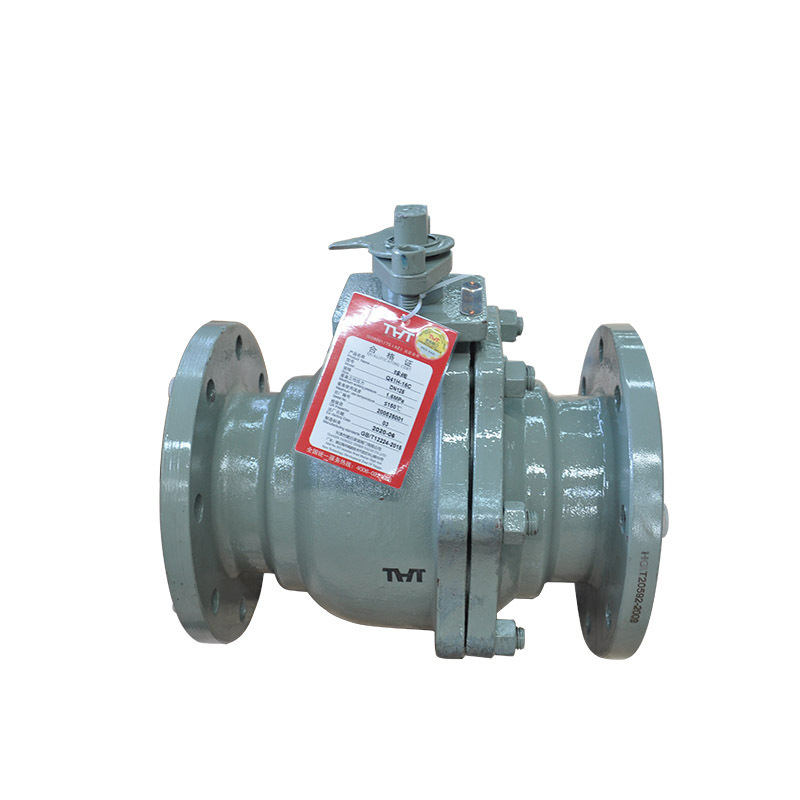

Quick Details
-
Model Number:
-
Q41F-16C
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
Body material:
-
Carbon Steel
-
Connection:
-
Flange Ends
-
Certificate:
-
ISO9001:2008 CE
-
operation:
-
manual
-
nominal pressure:
-
pn16/ 25/ 40
-
Medium:
-
water, oil , gas, etc.
-
temperature:
-
medium temperature
-
sealing:
-
hard sealing
-
ball:
-
floating ball
Quick Details
-
Port Size:
-
DN15-DN250
-
Warranty:
-
12 Months
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
Q41F-16C
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
Body material:
-
Carbon Steel
-
Connection:
-
Flange Ends
-
Certificate:
-
ISO9001:2008 CE
-
operation:
-
manual
-
nominal pressure:
-
pn16/ 25/ 40
-
Medium:
-
water, oil , gas, etc.
-
temperature:
-
medium temperature
-
sealing:
-
hard sealing
-
ball:
-
floating ball
Product Description
Product Description
Specification:
1.size:1/2"-10".
2PN: 150LB/300LB/900LB
3. End connection: flange end
4. Suitable temperature: ≤150°C.
2PN: 150LB/300LB/900LB
3. End connection: flange end
4. Suitable temperature: ≤150°C.
5.Suitable medium:
water gas and oil ect.
6.
Design standard: API 6D
7.
Face-to-face dimension confirm to ANSI B16.1
8.
Flange: ANSI B16.5
9.
Test as API695.
|
Pressure test:
|
|
|
|
|
|
|
||||||
|
Nominal Pressure
|
Strength test
|
|
Water-seal test
|
|
Gas seal test
|
|
||||||
|
|
MPa
|
Lbf/in2
|
MPa
|
Lbf/in2
|
MPa
|
Lbf/in2
|
||||||
|
150
|
3.1
|
450
|
2.2
|
315
|
0.5~0.7
|
60~100
|
||||||
|
300
|
7.8
|
1125
|
5.6
|
815
|
|
|
||||||
|
600
|
15.3
|
2225
|
11.2
|
1630
|
|
|
||||||
|
900
|
23.1
|
3350
|
16.8
|
2440
|
|
|
||||||
|
1500
|
38.4
|
5575
|
28.1
|
4080
|
|
|
||||||
|
2500
|
64.6
|
9367
|
47.4
|
6873
|
|
|
||||||
|
No.
|
Parts Name
|
Carbon steel series
|
Stainless steel series
|
Cryogenic steel series
|
Sulphur resistant series
|
|
||||
|
|
|
|
|
|
Carbon steel series
|
Stainless steel series
|
||||
|
1
|
Body
|
A216 WCB
|
A351-CF8,CF8M,CF3,CF3M
|
A352 LCB,LCC
|
GB/T 12229 A216 WCB
|
A351 CF8M
|
||||
|
2
|
Seat
|
PTFE,RPTFE,Sintering carbon fibre,Metal+Rubber groupware
|
|
|
|
|
||||
|
3
|
Ball
|
A105+
|
A351-CF8,CF8M,CF3,CF3M
|
A352 LCB,LCC+ENP
|
A105+HCr/ENP
|
A351 CF8M+ENP
|
||||
|
|
|
HCr/ENP
|
|
|
|
|
||||
|
4
|
Spring
|
INCONEL 750
|
|
|
|
|
||||
|
5
|
Stud Bolt
|
A193 B7
|
A193 B8,B8M
|
A320 L7
|
A193 B7M
|
A193 B8M
|
||||
|
6
|
Gasket
|
Flexible graphite+Stainless steel
|
|
|
|
|
||||
|
7
|
Nut
|
A194 2H
|
A194 8M
|
A194 4
|
A194 2HM
|
A194 8M
|
||||
|
8
|
Bonnet
|
A216 WCB
|
A351-CF8,CF8M,CF3,CF3M
|
A352 LCB,LCC
|
GB/T 12229 A216 WCB
|
A351 CF8M
|
||||
|
9
|
Stem
|
A182 F6a
|
A182 F304/316
|
A182 F6a
|
A182 F304
|
A182 F316
|
||||
|
10
|
Bush
|
Metal+PTFE; Sintering carbon fibre
|
|
|
|
|
||||
|
11
|
Packing Gasket
|
A182 F6a
|
|
A182 F6a
|
A182 F6a
|
|
||||
|
12
|
Packing
|
Flexible graphite,PTFE
|
|
|
|
|
||||
|
13
|
Packing Gland
|
A216 WCB
|
A351-CF8,CF8M
|
A351-CF8
|
GB/T 12229 A216 WCB
|
A351 CF8M
|
||||
|
14
|
Screw
|
A193 B7
|
A193 B8,B8M
|
A320 L7
|
A193 B7M
|
A193 B8M
|
||||
|
15
|
Positioner
|
GB/T 700 Q235A+Zn(Cr)
|
|
|
|
|
||||
|
16
|
Handle
|
A216 WCB
|
|
|
|
|
||||
|
17
|
Hold Ring
|
GB/T 1222 65Mn
|
|
|
|
|
||||
