Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YingDa Machinery
-
Voltage:
-
as the local voltage
-
Dimension(L*W*H):
-
Size customization
-
Weight (KG):
-
2500 kg
-
Product name:
-
Large inclination belt conveyor conveying coal/grain equipment
-
Application:
-
Coal Mining,Grain
-
Belt material:
-
PVC PU Rubber Steel Rubber
-
Usage:
-
Material Conveying
-
Frame Material:
-
Cabon Steel
-
Feature:
-
Wear Resistant
-
Length:
-
Customized 1~30m
-
Speed:
-
1.0-1.5m/s
-
Belt width:
-
500/650/800/1000/1200/1400mm
-
Motor:
-
Adjust Speed Motor
Quick Details
-
Power:
-
3kw-75kw
-
Warranty:
-
1 Year
-
Width or Diameter:
-
500mm-1200mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YingDa Machinery
-
Voltage:
-
as the local voltage
-
Dimension(L*W*H):
-
Size customization
-
Weight (KG):
-
2500 kg
-
Product name:
-
Large inclination belt conveyor conveying coal/grain equipment
-
Application:
-
Coal Mining,Grain
-
Belt material:
-
PVC PU Rubber Steel Rubber
-
Usage:
-
Material Conveying
-
Frame Material:
-
Cabon Steel
-
Feature:
-
Wear Resistant
-
Length:
-
Customized 1~30m
-
Speed:
-
1.0-1.5m/s
-
Belt width:
-
500/650/800/1000/1200/1400mm
-
Motor:
-
Adjust Speed Motor

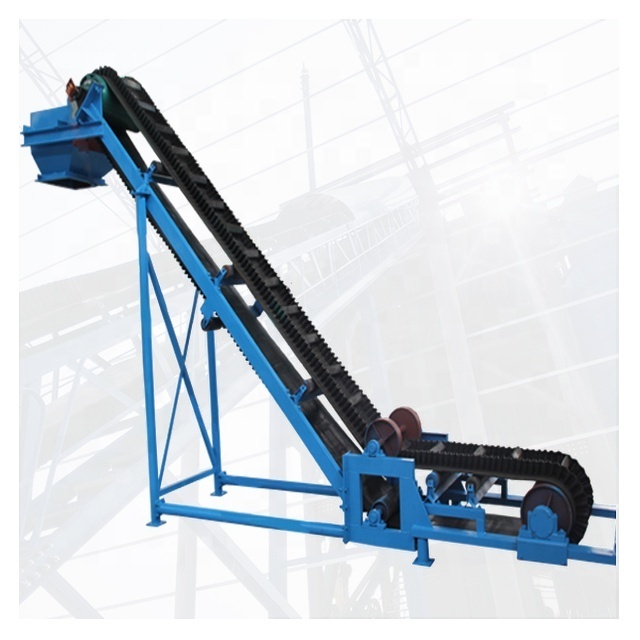

Large inclination belt conveyor conveying coal/grain equipment
Summary:
Wastewater treatment sludge cleated belt conveyor is mainly used for conveying bulk materials in large inclination angle. The inclination angle can reach from 0° to 90°(the best angle is below 70°).
Main Application:
Wastewater treatment sludge cleated belt conveyor is mainly used in arbor, metallurgy, mining, electricity, coal, foundries, construction, food, cement works, fertilizer, etc.
Technical Parameters:
|
Belt width |
Flange high |
Diaphragm spacing |
Angle of inclination |
||||||||||
|
30 ° |
40 ° |
50 ° |
60 ° |
70 ° |
90 ° |
||||||||
|
mm |
mm |
mm |
Delivery value(m 3 /h) speed of belt=1m/s |
||||||||||
|
500
|
80 |
126 |
39 |
31 |
25 |
20 |
17 |
10 |
|||||
|
120 |
252 |
52 |
40 |
32 |
26 |
21 |
- |
||||||
|
160 |
378 |
65 |
52 |
42 |
34 |
28 |
17 |
||||||
|
800 |
120 |
129 |
99 |
76 |
60 |
49 |
40 |
- |
|||||
|
160 |
252 |
136 |
110 |
88 |
72 |
58 |
36 |
||||||
|
200 |
378 |
148 |
114 |
91 |
74 |
61 |
37 |
||||||
|
1200 |
160 |
252 |
223 |
180 |
144 |
117 |
96 |
59 |
|||||
|
200 |
378 |
250 |
193 |
154 |
126 |
103 |
63 |
||||||
|
240 |
378 |
342 |
280 |
224 |
183 |
149 |
91 |
||||||
|
300 |
504 |
410 |
352 |
290 |
237 |
198 |
118 |
||||||
|
1400 |
200 |
252 |
299 |
231 |
185 |
151 |
123 |
75 |
|||||
|
240 |
378 |
422 |
345 |
276 |
225 |
184 |
113 |
||||||
|
300 |
348 |
512 |
440 |
363 |
296 |
241 |
148 |
||||||
|
400 |
504 |
780 |
709 |
634 |
549 |
451 |
277 |
||||||
