Underslung single girder overhead cranes are sometimes called under running crane/single girder underslung crane/under running bridge crane. Commonly used in factory buildings without load-bearing columns, but the roof can be load-bearing.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Huasui
-
Weight (KG):
-
4500 kg
-
Product Name:
-
Single girder under slung overhead bridge crane for workshop
-
Load capacity:
-
1-20t
-
Material:
-
Q345B
-
Work Duty:
-
A3/A4
-
Power supply:
-
380V50HZ Three-phase or as require
-
OEM:
-
Availalble
Quick Details
-
Max. Lifting Height:
-
25M
-
Span:
-
3m-16m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huasui
-
Weight (KG):
-
4500 kg
-
Product Name:
-
Single girder under slung overhead bridge crane for workshop
-
Load capacity:
-
1-20t
-
Material:
-
Q345B
-
Work Duty:
-
A3/A4
-
Power supply:
-
380V50HZ Three-phase or as require
-
OEM:
-
Availalble
Products Description

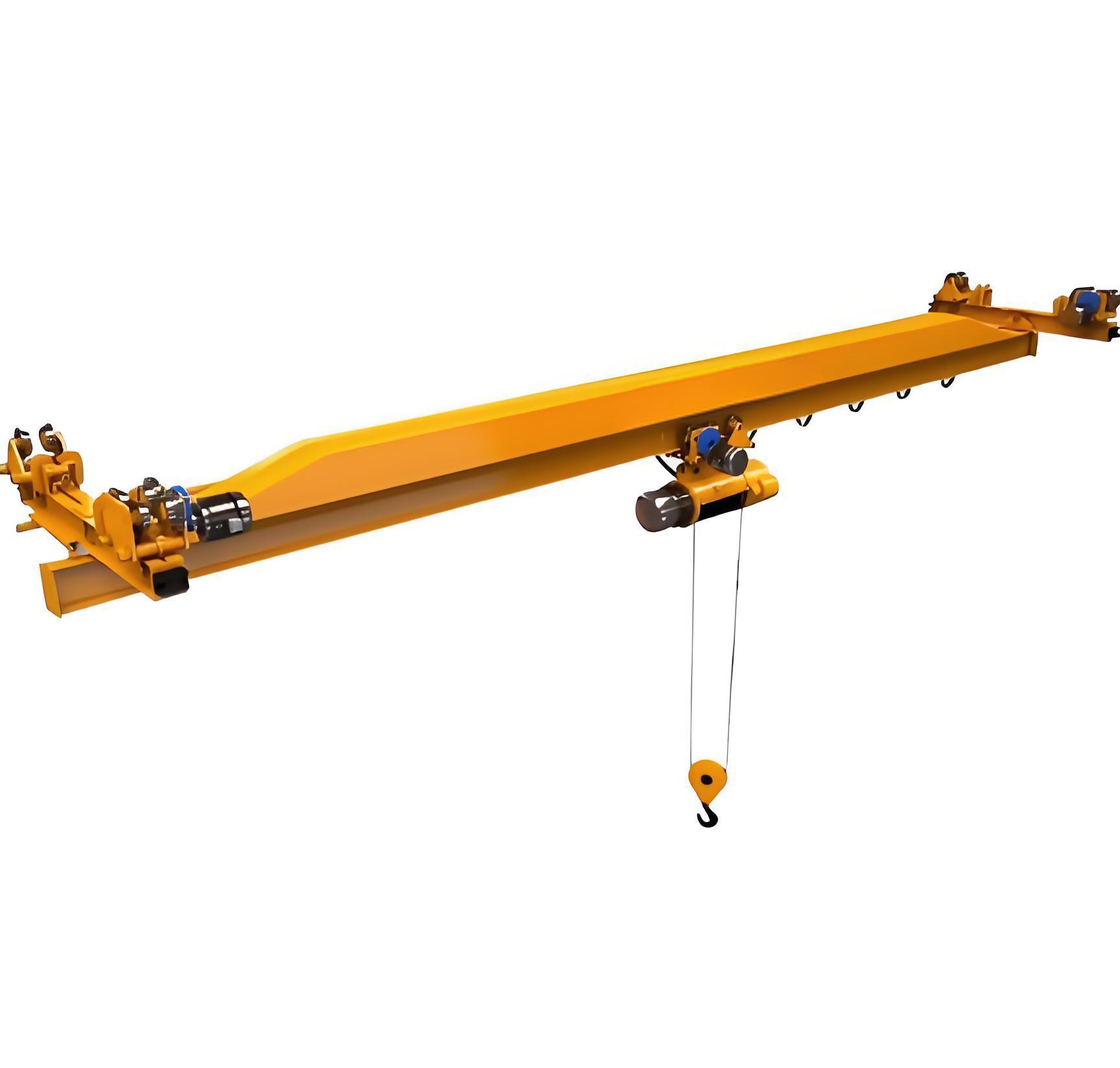

Underslung Single Girder Overhead Crane
* Capacity: 0.5ton/1ton/2ton/3ton/5ton/10ton
* Span length: 3m-16m
* Lifting height: 6m/9m/12m/18m/24m/30m
* Work duty: A3/A4,
* Rated voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
* Crane control mode: Ground control / Remote control
* Traveling speed: 20-30m/min
* Span length: 3m-16m
* Lifting height: 6m/9m/12m/18m/24m/30m
* Work duty: A3/A4,
* Rated voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
* Crane control mode: Ground control / Remote control
* Traveling speed: 20-30m/min
5ton Underslung single girder overhead crane on test run in customer's plant
Under running cranes in standard capacities up to 10 tons. Special configurations can be designed to accommodate up to 32 tons.Underhung cranes offer excellent side approaches, close headroom and can be supported on runways hung from existing building members if adequate.
Details Images
Main Girder
Main girder is the main bearing part of the crane, its structure is made of U-shaped groove, inclined cover plate, rib plate and I beam steel plate, its upper arc is ((1/1000～1.4/1000)S, when the rated lifting weight and the hoist's self-weight are located in the middle of the span, the degree of camber caused is not lower than the horizontal line, and there is no permanent deformation
during normal operation.
during normal operation.
End Girder
End girder is located at both ends of the main beam, is bolted to the main beam by flange plats. It's box structure, composed of U-shaped groove, lower cover plate, reinforcement plate, and rib plates formed by steel plate rolling or welded steel plates. The end girder has the characteristics of light structure, good rigidity, beautiful appearance and good welding performance.
Electric hoist
Electric hoist is to be used on single girder overhead crane, each electric hoist will perform dynamic and static load test, rise and drop pressure tests. The baking paint process is adopted to enhance the adhesion of the paint film and improve the appearance quality. Assembly line ensures product quality.
Parameter List
|
Products
|
Span/M
|
Lifting Height/M
|
Power Supply Voltage
|
|
1 ton single girder overhead crane
|
3-16
|
6-30
|
220V-660V, 50-60Hz, 3ph AC
|
|
2 ton single girder overhead crane
|
3-16
|
6-30
|
220V-660V, 50-60Hz, 3ph AC
|
|
3 ton single girder overhead crane
|
3-16
|
6-30
|
220V-660V, 50-60Hz, 3ph AC
|
|
5 ton single girder overhead crane
|
3-16
|
6-30
|
220V-660V, 50-60Hz, 3ph AC
|
|
10 ton single girder overhead crane
|
3-16
|
6-30
|
220V-660V, 50-60Hz, 3ph AC
|
Making Process
Company information
FAQ
A: What is the best crane for my need?
B: We can customize all kinds of crane according to your requirements, so don't worry about your needs, just tell us your demands,and we can design and manufacture your own crane based on your needs.
A:Which industries do you service?
A:Which industries do you service?
B: We service many industries including machinery, metallurgy, electric power, railway, water conservancy, port, aviation,
military, auto, shipbuliding, petroleum, chemical, tabulation, coal, steel fabricators, pre-cast concrete.steel warehouse, marble
and stone and other fields.
A:Which areas do you service?
military, auto, shipbuliding, petroleum, chemical, tabulation, coal, steel fabricators, pre-cast concrete.steel warehouse, marble
and stone and other fields.
A:Which areas do you service?
B: We have very big market in China local market, at the same time, we have exported our cranes to all over the world, including
European, Africa, Middle-East, Asia, North American, South America and so on. Totally more than 95 countries all over the world.
A: What types of overhead cranes do you supply?
B: We are a leading suppiler of overhead cranes and we can offer different types including the single girder top running crane,the single girder underslung crane and the double girders top ruuning crane.
A:Which cranes are most suitable for outdoors?
B: The gantry crane range is most suitable for outdoor type work. There are different types, including the single girder gantry crane and double girder gantry crane.
A:What international certifications has your company passed?
European, Africa, Middle-East, Asia, North American, South America and so on. Totally more than 95 countries all over the world.
A: What types of overhead cranes do you supply?
B: We are a leading suppiler of overhead cranes and we can offer different types including the single girder top running crane,the single girder underslung crane and the double girders top ruuning crane.
A:Which cranes are most suitable for outdoors?
B: The gantry crane range is most suitable for outdoor type work. There are different types, including the single girder gantry crane and double girder gantry crane.
A:What international certifications has your company passed?
B: Our crane has passed CE, lSO, GOST, SGS, TUV, BV, and so on.
