Quick Details
-
Brand Name:
-
KEEPLINK
-
Model Number:
-
KP-9000-85-4XG8GC16GT-HR-V
-
Place of Origin:
-
Guangdong, China
-
Power Supply:
-
DC12-58V/AC 100-240V 50-60HZ
-
Packet forwarding rate:
-
95.23Mpps
-
operating temperature:
-
-40°C ~ +75°C
-
Power consumption:
-
<36W
-
MTBF:
-
100000 hours
-
Warranty Period:
-
5 years
-
Weight:
-
3.6KG
-
Dimension:
-
440*245*44mm( W*L*H)
-
Installation:
-
Rack
-
Certification:
-
CE RoHS FCC CCC
Quick Details
-
Transmission Rate:
-
10G
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
160G
-
Brand Name:
-
KEEPLINK
-
Model Number:
-
KP-9000-85-4XG8GC16GT-HR-V
-
Place of Origin:
-
Guangdong, China
-
Power Supply:
-
DC12-58V/AC 100-240V 50-60HZ
-
Packet forwarding rate:
-
95.23Mpps
-
operating temperature:
-
-40°C ~ +75°C
-
Power consumption:
-
<36W
-
MTBF:
-
100000 hours
-
Warranty Period:
-
5 years
-
Weight:
-
3.6KG
-
Dimension:
-
440*245*44mm( W*L*H)
-
Installation:
-
Rack
-
Certification:
-
CE RoHS FCC CCC

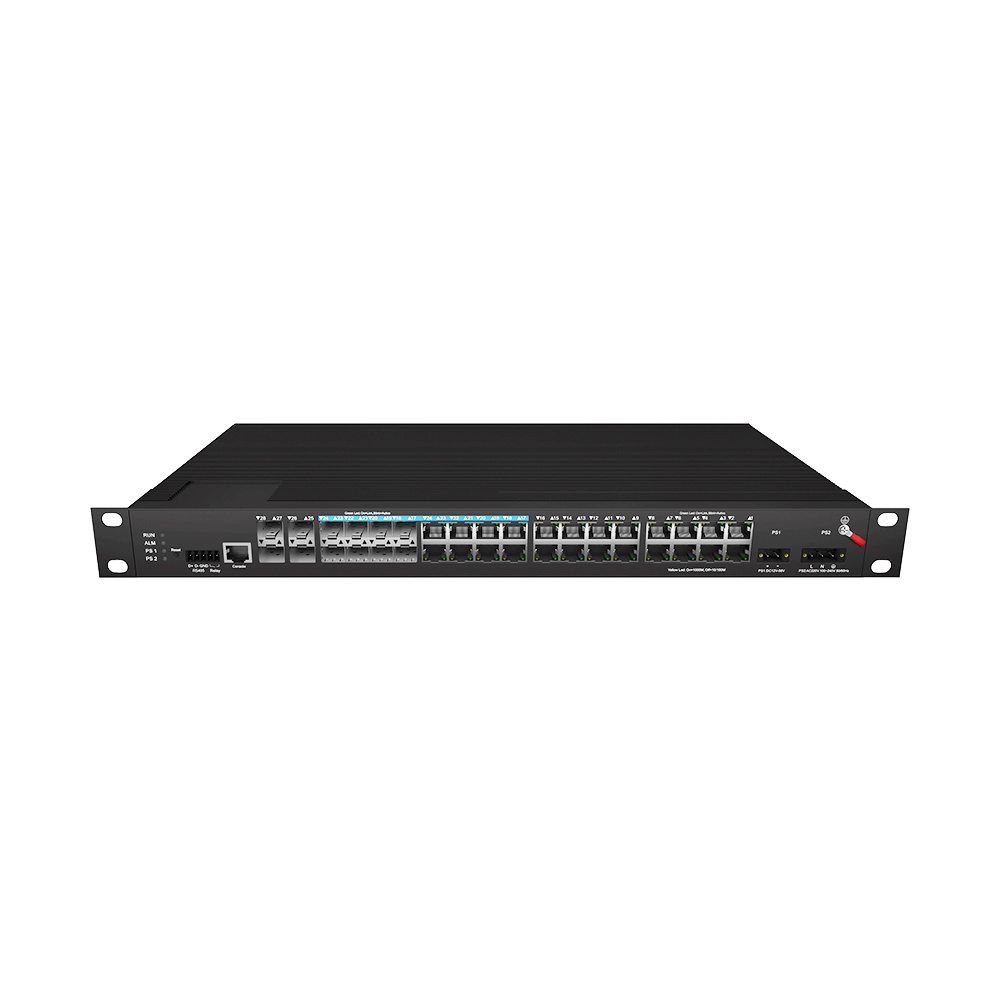

4 10Gb Fiber Optic to Ethernet
32 Port Industrial grade IP40 aggregation switch
Part munber: KP-9000-85-4XG8GC16GT-HR-V,
4*10G SFP, 8*1000M Combo, 16*10/100/1000M Base-T
Main Features:
- DC12~58V/AC100-240V 50/60Hz(Non-PoE)
- Surge protection for power 4KV/2KV(AC); 8KV/8KV(DC) , for Ethernet port 4KV/2KV , anti-static 8KV~15KV
- Alumimum body, IP40, -40~75°C working temperature
- PoE support 802.3af&at , support short circuit protection.
- Support undervoltage alarm(<12V) , overvoltage alarm(>58V)
- Management function : Support Telnet, Web management, SNMP, Ring network, management IPv4/IPv6, SMNP v1/v2c/v3
| Electrical Specification | |
| Input voltage | DC12~58V/AC100-240V(Non-PoE) |
| Power consumption | <36W(Non-PoE) |
| L2 Switching | |
| Switch capacity | 160G |
| Packet forwarding rate | 95.23Mbps |
| Mac address table | 16K |
| Forwarding delay | <10us |
| Buffer | 12M |
| MDX/MIDX | Support |
| Flow control | Support |
| Jumbo Frame | 10K bytes |
| Spanning tree | STP/RSTP/MSTP |
| Ring protocol | ERPS |
| Multicast | IGMP snooping |
| Storm control | Support |
| Interface counter | Support |
| QINQ | Support |
| 802.1X | Support |
| MAC authentication | Support |
| Port isolation | Support |
| RMON | Support |
| NTP client | Support |
| DHCP client | Support |
| Ping/tracert test | Support |
| Dying gasp | Support |
| DDM | Support |
| Management | |
| CLI | Support |
| Console | Support |
| Management IP | IPv4/IPv6 |
| Telnet/SSH | Support |
| WEB management | Support |
| USer management | Support |
| SNMP | SNMPv1/v2c/v3 |
| System log | Support |
| Configuaration file download and upload | Support |
| Uograde firmware | Support |
| EMI & Ingress Protection | |
| IP level | IP40 |
| Surge protection for power |
AC:IEC61000-4-5Level3(4KV/2KV)(8/20us)
DC:IEC61000-4-5LevelX(8KV/8KV)(8/20us) |
| Surge portextion for Ethernet port | IEC 61000-4-5 Level 4(4KV/2KV)(10/700us) |
| RS | IEC 61000-4-3 Level 3(10V/m) |
| EFI | IEC 61000-4-4 Level 3(1V/2V) |
| CS | IEC 61000-4-6 Level 3(10V/m) |
| PFMF | IEC 61000-4-8 Level 4(30A/m) |
| DIP | IEC 61000-4-11 Level 3(10V) |
| ESD | IEC 61000-4-2 Level 4(8K/15K) |
| Free fall | 0.5m |
| Certification | |
| Certification | CE, FCC, RoHS, CCC |
