Quick Details
-
Brand Name:
-
DJYOKE
-
Model Number:
-
HL-9-12W-300MA-NZ
-
Output Frequency:
-
0
-
Output Current:
-
300mA
-
Warranty:
-
2 Years
-
Efficiency:
-
82%
-
Size:
-
40*17*16mm
-
Usage:
-
Electronic Products
-
SHIPPING WAY:
-
DHL\UPS\Fedex\TNT\EMS\ARAMEX
-
Quality:
-
100%Factory
-
Feature:
-
Low Cost
-
Type:
-
Constant Current
-
Protections:
-
Short Circuit
-
Application:
-
LED Lighting Driver
Quick Details
-
Input Voltage:
-
85-265v
-
Output Voltage:
-
27-36v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DJYOKE
-
Model Number:
-
HL-9-12W-300MA-NZ
-
Output Frequency:
-
0
-
Output Current:
-
300mA
-
Warranty:
-
2 Years
-
Efficiency:
-
82%
-
Size:
-
40*17*16mm
-
Usage:
-
Electronic Products
-
SHIPPING WAY:
-
DHL\UPS\Fedex\TNT\EMS\ARAMEX
-
Quality:
-
100%Factory
-
Feature:
-
Low Cost
-
Type:
-
Constant Current
-
Protections:
-
Short Circuit
-
Application:
-
LED Lighting Driver
Main products
product details

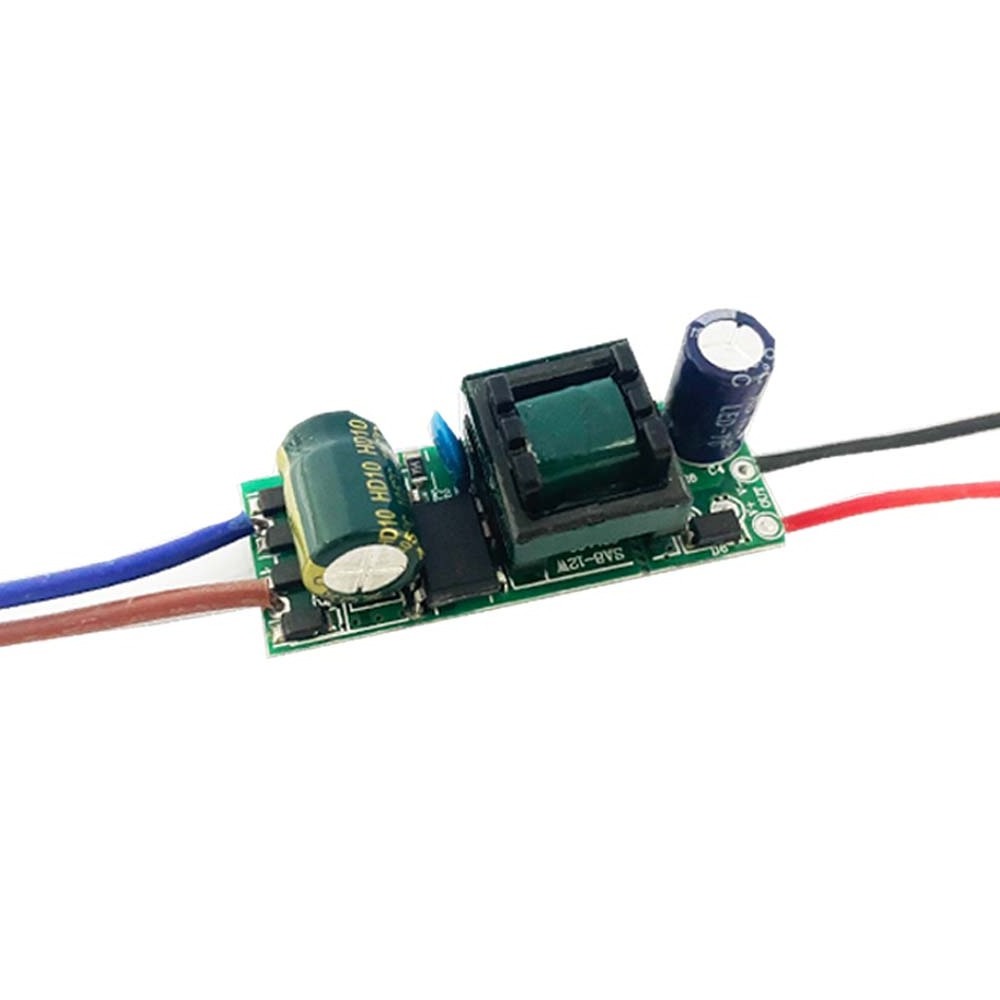

Top quality 9-12W led power supply DC 27-36V 300mA inner constant current LED driver power supply board 03
Top pcb design 9-12W DC 27-36V 300mA inner constant current LED driver power supply board 4n
|
1.Input parameters
|
Parameters
|
Unit
|
Test description
|
Minimum
|
Typical
|
Maximum
|
||||
|
|
Input Voltage
|
V(AC)
|
Normal
|
85
|
220
|
265
|
||||
|
|
Input frequency
|
HZ
|
Normal
|
43
|
50
|
65
|
||||
|
|
Power factor
|
PF
|
Normal
|
0.573
|
0.6
|
0.66
|
||||
|
|
Input Inrush Current
|
A
|
Cold start under normal conditions
|
|
|
|
||||
|
2.Output parameters
|
Parameters
|
Unit
|
Minimum
|
Typical
|
Maximum
|
|
||||
|
|
Output current
|
MA
|
259
|
300
|
300
|
|
||||
|
|
Output voltage
|
V
|
27
|
36
|
36
|
|
||||
|
|
Output ripple
|
MV
|
|
|
|
|
||||
|
|
Constant current accuracy
|
%
|
1%
|
3%
|
5%
|
|
||||
|
3.Overall performance
27V 300MA Test data
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage(V)
|
Power consumption(W)
|
Output voltage(V)
|
Output current(MA)
|
Power Factor
|
Efficiency
|
||||
|
|
85
|
9.8
|
27
|
281
|
0.635
|
0.77
|
||||
|
|
100
|
9.4
|
27
|
282
|
0.66
|
0.81
|
||||
|
|
110
|
9.4
|
27
|
284
|
0.657
|
0.82
|
||||
|
|
120
|
9.3
|
27
|
285
|
0.656
|
0.83
|
||||
|
|
170
|
9.9
|
27
|
293
|
0.627
|
0.80
|
||||
|
|
220
|
9.9
|
27
|
299
|
0.598
|
0.82
|
||||
|
|
240
|
9.9
|
27
|
302
|
0.584
|
0.82
|
||||
|
|
265
|
10
|
27
|
305
|
0.573
|
0.82
|
||||
|
|
|
|
|
|
|
|
||||
|
30V 300MA Test data
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage(V)
|
Power consumption(W)
|
Output voltage(V)
|
Output current(MA)
|
Power Factor
|
Efficiency
|
||||
|
|
85
|
10.6
|
30
|
276
|
0.622
|
0.78
|
||||
|
|
100
|
10.5
|
30
|
282
|
0.654
|
0.81
|
||||
|
|
110
|
10.5
|
30
|
284
|
0.657
|
0.81
|
||||
|
|
120
|
10.4
|
30
|
285
|
0.655
|
0.82
|
||||
|
|
170
|
10.9
|
30
|
294
|
0.636
|
0.81
|
||||
|
|
220
|
11
|
30
|
299
|
0.602
|
0.82
|
||||
|
|
240
|
11
|
30
|
302
|
0.594
|
0.82
|
||||
|
|
265
|
11
|
30
|
305
|
0.577
|
0.83
|
||||
|
33V 300MA Test data
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage(V)
|
Power consumption(W)
|
Output voltage(V)
|
Output current(MA)
|
Power Factor
|
Efficiency
|
||||
|
|
85
|
11.2
|
33
|
268
|
0.62
|
0.79
|
||||
|
|
100
|
11.5
|
33
|
282
|
0.645
|
0.81
|
||||
|
|
110
|
11.5
|
33
|
284
|
0.653
|
0.81
|
||||
|
|
120
|
11.3
|
33
|
285
|
0.658
|
0.83
|
||||
|
|
170
|
12
|
33
|
293
|
0.634
|
0.81
|
||||
|
|
220
|
12.1
|
33
|
299
|
0.608
|
0.82
|
||||
|
|
240
|
12.1
|
33
|
302
|
0.597
|
0.82
|
||||
|
|
265
|
12.2
|
33
|
305
|
0.584
|
0.83
|
||||
|
36V 300MA Test data
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage(V)
|
Power consumption(W)
|
Output voltage(V)
|
Output current(MA)
|
Power Factor
|
Efficiency
|
||||
|
|
85
|
11.7
|
36
|
259
|
0.622
|
0.8
|
||||
|
|
100
|
12.6
|
36
|
282
|
0.637
|
0.81
|
||||
|
|
110
|
12.5
|
36
|
284
|
0.65
|
0.82
|
||||
|
|
120
|
12.4
|
36
|
285
|
0.653
|
0.83
|
||||
|
|
170
|
12.9
|
36
|
293
|
0.639
|
0.82
|
||||
|
|
220
|
13.2
|
36
|
299
|
0.611
|
0.82
|
||||
|
|
240
|
13.2
|
36
|
302
|
0.6
|
0.82
|
||||
|
|
265
|
13.5
|
36
|
305
|
0.589
|
0.81
|
||||
|
4. Using environment
Parameters
|
Parameters
|
Unit
|
Test description
|
Minimum
|
Typical
|
Maximum
|
|
|
Working ambient temperature
|
℃
|
Full load operation
|
-18
|
+40
|
+60
|
|
|
Storage ambient temperature
|
℃
|
|
-25
|
25
|
+75
|
