Quick Details
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CYCJET
-
Marking Head Brand:
-
OUYA
-
Weight (KG):
-
200 KG
-
Core Components:
-
Laser Controller
-
Product name:
-

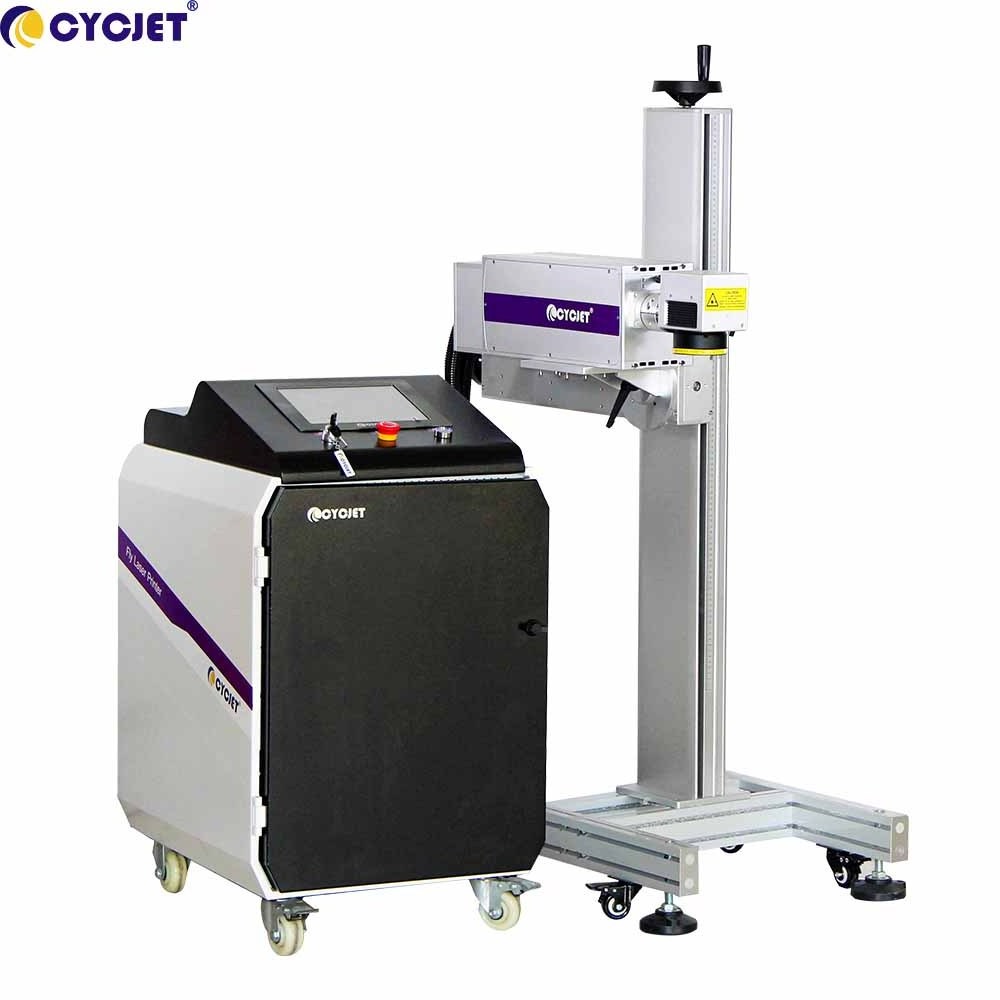

CYCJET LU5F UV Laser Printer
-
Laser Power:
-
10W
-
Laser Wavelength:
-
355nm
-
Marking Speed:
-
7000mm/s
-
After-sales Service Provided:
-
Online support
-
Marking Depth:
-
≤0.03mm
Quick Details
-
Working Accuracy:
-
0.003mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Diode
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CYCJET
-
Marking Head Brand:
-
OUYA
-
Weight (KG):
-
200 KG
-
Core Components:
-
Laser Controller
-
Product name:
-
CYCJET LU5F UV Laser Printer
-
Laser Power:
-
10W
-
Laser Wavelength:
-
355nm
-
Marking Speed:
-
7000mm/s
-
After-sales Service Provided:
-
Online support
-
Marking Depth:
-
≤0.03mm
Specifications
Description:
With the laser technology continuous development, the UV laser source output power up to 40W. The high power UV laser marking machine can satisfy many new applications which low power laser can not achieved. For example high speed online coding, Glass & Plastic Inner Carving, Electronic parts cleaning, PCB Cutting, PCB Marking, Drilling.
Compare to other laser source, UV laser printer has high electro-optical conversation rate, high quality laser beam, and with tiny spot size, ultra-fine marking. The core part crystal has longer service life than before, stable operation, high accuracy positioning & high efficiency working , even after long time running. The compact design is easy to install and assemble, working smoothly and stable. The UV laser marking quality is perfect, because of the UV laser beam carry less heat power, so the heat-affected zone is smaller, thermal effect is less, the material will not deformed and not burnt. The marking effect is fine and can be repeatedly processed, and the high-precision & tiny spot ensures the perfect marking result, and it is no contact marking, so the marking effect is permanent.
Compare to other laser source, UV laser printer has high electro-optical conversation rate, high quality laser beam, and with tiny spot size, ultra-fine marking. The core part crystal has longer service life than before, stable operation, high accuracy positioning & high efficiency working , even after long time running. The compact design is easy to install and assemble, working smoothly and stable. The UV laser marking quality is perfect, because of the UV laser beam carry less heat power, so the heat-affected zone is smaller, thermal effect is less, the material will not deformed and not burnt. The marking effect is fine and can be repeatedly processed, and the high-precision & tiny spot ensures the perfect marking result, and it is no contact marking, so the marking effect is permanent.
|
Item |
LU10F UV Fly Laser Printer |
|
||
|
Perforrmance |
Frame Material
|
ALUM.
|
||
|
|
Laser Device
|
UV Laser Device
|
||
|
|
Power
|
10w
|
||
|
|
Laser Wavelength
|
355 nm
|
||
|
|
Galvanometer
|
High Precision dual dimensional scanning system
|
||
|
|
deflection
|
High Precision dual dimensional scanning system
|
||
|
|
Marking speed
|
≤12000mm/s
|
||
|
|
Master Control
|
Highly integrated board with 10 inch Color Touch screen
|
||
|
|
Operating System
|
LINUX based with High Speed Pipe Marking Software
|
||
|
|
Cooling
|
Water Cooling System
|
||
|
Marking Specifications |
Focus Distance
|
Focus 190mm
|
||
|
|
Marking line type
|
Dot matrix, bold, vector all in one(both dot matrix and vector)
|
||
|
|
Minimum line width
|
0.01mm
|
||
|
|
Repeated positioning accuracy
|
0.003mm
|
||
|
|
positioning
|
0.003mm
|
||
|
|
Marking Area
|
Standard 110mm×110mm(Customized available)
|
||
|
|
Marking height
|
Standard Character height 110mm
|
||
|
|
Marking Length
|
Unlimited
|
||
|
|
Positioning mode
|
Red light positioning and focusing
|
||
|
|
Number of characters
|
Any line(multi-line) within marking range
|
||
|
|
Line Speed
|
Standard 0~230m/min (depends on material &text)
|
||
|
Support type |
Typeface
|
Chinese , English, available to customized
|
||
|
|
Marking
|
Number, logo, image, letter, serials number, system date & time,etc...
|
||
|
|
File format
|
CNF/PLT
|
||
|
|
Bar code
|
CODE39,CODE128,CODE126,QR,Z-Code
|
||
|
Others |
Power Supply
|
100-220V/50-60HZ
|
||
|
|
Power Consumption
|
800W
|
||
|
|
Net Weight
|
88kg
|
||
|
|
Oversize
|
140cm X 135cm X 75cm
|
||
|
Environmental Requirement
|
|
0℃-45℃; humidity≤95%; non-condensing; no shaking
|
||
|
The Quality Standard of CYCJET UV Laser Marking Machine |
|
|
||
|
GB 7247-87
|
|
Radiation safety of laser products, requirements for equipment classification and user's Guide
|
||
|
GB10320-88
|
|
Electrical safety of laser equipment and facilities
|
||
|
ISO 9000-3
|
|
International software standards
|
||
|
GB/T12123-89
|
|
Sales packaging process
|
||
|
IEC 536
|
|
Classification of electrical and electronic equipment for protection against electric shock
|
||
