2. The device is isolated by anti-static bags, and the power cord and other accessories are packed separately. The outer handle of the box is convenient for extraction.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KEEPLINK
-
Model Number:
-
KP-9000-28GCPM-C4-ACR
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Network switch- 24 port managed PoE switch
-
Operating temperature:
-
-10°C ~ +50°C
-
Power Input:
-
AC 100-240V 50/60Hz
-
PoE power:
-
Max 280W
-
L2 switching:
-
Telnet, CLI, Web managed, SNMP etc. supoort
-
L3 Switching:
-
IPv4, IPv6, Static routes, ARP, Look back support
-
Security:
-
802.1x, Mac/Web based, Dos,ARP support
-
Dimension (WxHxD):
-
440 mm x 284 mm x 44 mm
-
Weight:
-
non-poe 2.8KG, poe 3.4KG
-
Installation:
-
Rack mounted
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
56G
-
Brand Name:
-
KEEPLINK
-
Model Number:
-
KP-9000-28GCPM-C4-ACR
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Network switch- 24 port managed PoE switch
-
Operating temperature:
-
-10°C ~ +50°C
-
Power Input:
-
AC 100-240V 50/60Hz
-
PoE power:
-
Max 280W
-
L2 switching:
-
Telnet, CLI, Web managed, SNMP etc. supoort
-
L3 Switching:
-
IPv4, IPv6, Static routes, ARP, Look back support
-
Security:
-
802.1x, Mac/Web based, Dos,ARP support
-
Dimension (WxHxD):
-
440 mm x 284 mm x 44 mm
-
Weight:
-
non-poe 2.8KG, poe 3.4KG
-
Installation:
-
Rack mounted

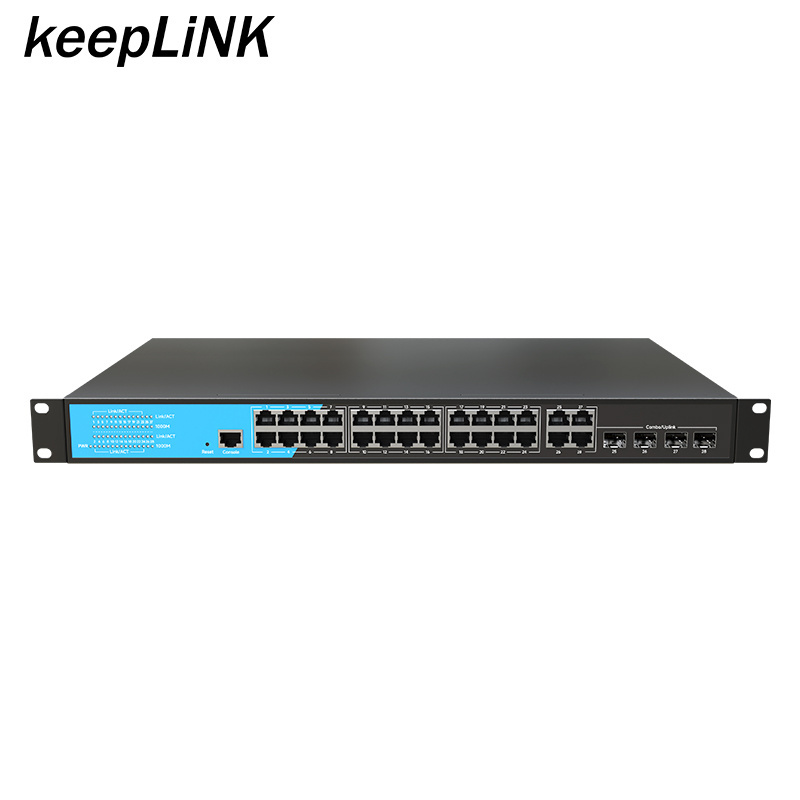

L2 L3 switching 24 port managed network Ethernet switch 4 gigabit combo with 24 port 10 100 1000 PoE&PoE+ AC power supply
Leading
manufacturer of
industrial and enterprise ethernet switches...
Intelligent IoT Cabinet,
4G router, PoE splitter, Fiber optical transceiver,
Fiber patch cable,
Media Converter
...
WE ARE AIM
TO BE YOUR BEST INDUSTRIAL NETWORKS SOLUTION PROVIDER
IN CHINA !
Product Description
Keeplink Industrial Ethernet Switch.
Why buy our devices ?
1. 4 port combo with 24 port gigabit Ethernet/ PoE ports
2. Ring, Star, Bus, Tree, Hybird network protocol support
3. AC100-240V wide range power supply
4. PoE match IEEE802.3af&at standard, max 280W POE support, single port support 15W and 30W
5. VLAN, protocol/Voice VLAN, GVRP, LACP, Flow, DHCP server, port statics, EEE, LLDP, MLD, MVR L2 switching support
6. L3 switching IPv4, IPv6, static routes, ARP, Loopback interface function support
7. Security function management channel configuration, AAA, 802.1x, MAC/WEB based, DoS, ARP, DHCP snooping, IP source guard, port security, strom control support
8. 2-4KV surge protection
9. Source manufacture, fast lead time 1-3 working days for the sample, 3-5 working days for the quanitty within 100pcs
Plug and play, small and exquisite appearance, suitable for various home environments and enterprise use environments.
..
.
|
Provider Mode Ports
|
|
|
|
Fixed Ports
|
24 x 10/100/1000 Base-TX, 4*1000 SFP/RJ45 Combo
|
|
|
Management Port
|
1* Console
|
|
|
LED Indicators
|
PWR, SYS, Link/ACT LED
|
|
|
Network Topology
|
|
|
|
Network Topology
|
Ring/ Star/ Bus/ Tree/ Hybrid topology support
|
|
|
Electrical Specifications
|
|
|
|
Input voltage
|
AC 100-240V 50/60Hz
|
|
|
Power consumption
|
≤300W(POE), 400W POE is optional
|
|
|
Main board power
|
Main board power
|
|
|
PoE Support
|
|
|
|
PoE port
|
1-24
|
|
|
PoE Protocol
|
802.3af，802.3at
|
|
|
Pin Assignment
|
1,2+; 3,6-
|
|
|
PoE Management
|
Support
|
|
|
Layer 2 Switching
|
|
|
|
Switching capacity
|
56Gbps
|
|
|
Packet forwarding rate
|
41.616Mpps
|
|
|
MAC address table
|
8K
|
|
|
Buffer
|
4.1M
|
|
|
Forwarding delay
|
<10us
|
|
|
MDX/MIDX
|
Support
|
|
|
VLAN
|
256
|
|
|
VLAN type support
|
GVRP VLAN, Protocol VLAN, Voice VLAN, Surveillance VLAN, MAC VLAN
|
|
|
Ethert channel/ 802 .3ad
|
Support
|
|
|
LACP
|
Support
|
|
|
Interface Speed
|
Support
|
|
|
Flow Control
|
Support
|
|
|
Jumbo frame
|
Support
|
|
|
DHCP Client
|
Support
|
|
|
SNTP Client
|
Support
|
|
|
Port Statistics
|
Support
|
|
|
EEE
|
Support
|
|
|
Ethernet Ring Protection Switching
|
Support
|
|
|
LLDP
|
Support
|
|
|
LLDP 802.1 TLV
|
Support
|
|
|
MSTP / RSTP / STP
|
Support
|
|
|
STP BPDU Filter
|
Support
|
|
|
STP BPDU guard
|
Support
|
|
|
STP Port Fast
|
Support
|
|
|
IGMP Snooping
|
Support
|
|
|
MLD Snooping
|
Support
|
|
|
MVR
|
Support
|
|
|
DHCP Server
|
Support
|
|
|
Layer 3 Route
|
|
|
|
IPv4/Ipv6 management
|
Support
|
|
|
Static Routes IPv4
|
32
|
|
|
Static Routes IPv6
|
32
|
|
|
ARP
|
Support
|
|
|
Loopback Interface
|
Support
|
|
|
DHCP/DNS Server
|
Support
|
|
|
DNS Client
|
Support
|
|
|
Management
|
|
|
|
Management function
|
User Management; System Log; Upgrade Firmware; Configuration File Download/Upload; SNMP; WEB; Console; CLI; Telnet/SSH; RMON
|
|
|
Security
|
|
|
|
Security function
|
Management channel configuration; AAA; 802.1X; MAC-Based; WEB-Based; DoS; ARP; DHCP Snooping; IP Source Guard; Port Security;
Protected Ports; Storm control |
|
|
Environment
|
|
|
|
Operate temperature
|
-10ºC to 50ºC
|
|
|
Storage temperature
|
-40ºC to 85ºC
|
|
|
Relative humidity
|
-40ºC to 85ºC
|
|
|
EMC & INGRESS PROTECTION
|
|
|
|
Surge protection for Power
|
Common-mode:4KV ; differential-mode:2KV
|
|
|
Surge protection for Ethernet port
|
Common-mode:6KV ; differential-mode:2KV
|
|
|
ESD
|
Contact: 8KV; Air: 15KV
|
|
Protective packaging
1. Packing List: Device; Power cord, Lugs & Screws, Certificate of conformity; User manual
