Quick Details
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GATS-G-100-4P
-
Rated Current:
-
16-100A
-
Frame current:
-
100
-
Product name:
-
Dual Power Automatic Transfer Switch ATS
-
Insulation Voltage:
-
AC 690V
-
Rated Voltage:
-
AC 400V
-
Rated frequency:
-
50/60Hz
-
Pole:
-
4P
-
Rated current in:
-
16A 20A 25A 32A 40A 50A 63A 100A
-
Guarantee:
-
2years
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
400V
-
Certification:
-
CE ISO CB ROHS
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GATS-G-100-4P
-
Rated Current:
-
16-100A
-
Frame current:
-
100
-
Product name:
-
Dual Power Automatic Transfer Switch ATS
-
Insulation Voltage:
-
AC 690V
-
Rated Voltage:
-
AC 400V
-
Rated frequency:
-
50/60Hz
-
Pole:
-
4P
-
Rated current in:
-
16A 20A 25A 32A 40A 50A 63A 100A
-
Guarantee:
-
2years
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
400V
-
Certification:
-
CE ISO CB ROHS

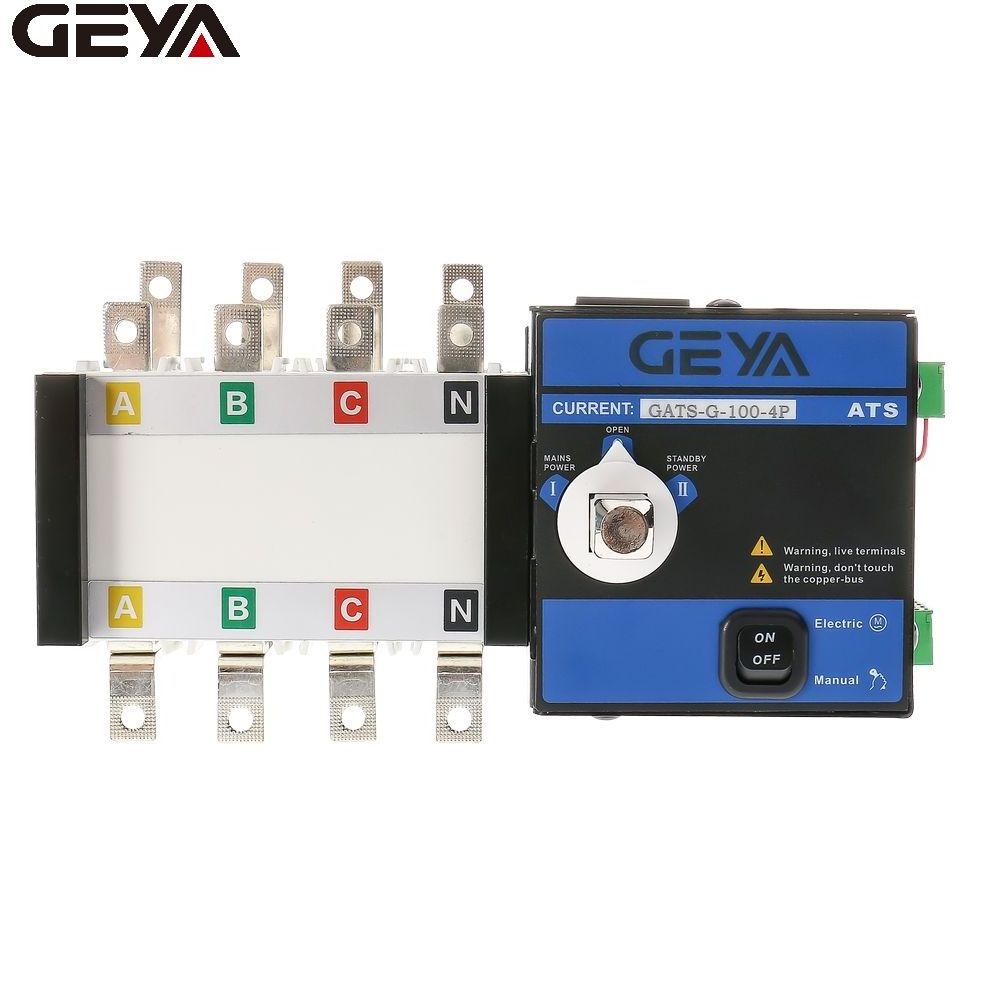

GEYA famous brand ats dual power Cheap price Automatic Transfer Switch 100amp ATS for diesel generator price
This link price is only for GATS-G-100-4P. if you need other specifications, please feel free to contact us!
Products Description
①Electrickeylock: Control the inside controlling line power supply of the switch, when the Electric lock opens, the switch could be operated automatically and remotely, when the electric lock closed, the switch could be operated by the handle only.
②Operating handle: When operating the switch by the operating handle, the electric lock must be closed.
③Mechanic padlock: When inspection, firstly turn the switch to the"0" position by the operation handle, then pull the padlock mechanism and close the padlock, then the inspection can be arranged:(Pull the mechanism padlock will cut off the inside controlling power supply of the switch. The switch couldn't be electric position and also couldn't be in manual operation.
④ Position indication: It means the position of the switch working estate(I,0, Ⅱ)
⑤Controlling voltage: AC220V
Product Paramenters
|
Frame class
|
|
100
|
|
|
Rated current In(A)
|
|
16/20/25/32/40/50/63/80/100
|
|
|
Rated insulation voltage(Ui)
|
|
690v
|
|
|
Rated concussion withstand voltage(Uimp
|
|
8kv
|
|
|
Rated working voltage(Ue)
|
|
AC400V
|
|
|
Using category
|
|
AC-33iB
|
|
|
Rated short-circuit connection capacity
|
|
8KA
|
|
|
Rated short-time withstand current(Icw)
|
|
5KA/30ms
|
|
|
Transfer time I- ⅡorⅡ-I
|
|
2.5s
|
|
|
Control voltage
|
|
DC24V、48V、110V, AC220V
|
|
|
Rated
frequency |
Start
|
30W
|
|
|
|
Normal
|
|
|
|
Weight(kg)4Pole
|
|
3.4
|
|
Packing List
|
Items
|
Specification
|
PCS/CTN
|
Item Size
(CM) |
Carton Size
(CM) |
G.W.
(KG) |
N.W.
(KG) |
|
|
|
|
|
|
|
|
|
GATS-G-100-4P
|
16-100A
|
6
|
25*15*14
|
38*30*36
|
25
|
24
|
|
GATS-G-160-4P
|
125-160A
|
4
|
45*36.5*48
|
45*36.5*48
|
25.2
|
24.2
|
|
GATS-G-250-4P
|
180-250A
|
2
|
46.3*44.2*29.5
|
46.3*44.2*29.5
|
19.25
|
18.25
|
|
GATS-G-400-4P
|
315-400A
|
1
|
50.5*30.5*33
|
50.5*30.5*33
|
17.85
|
16.85
|
|
GATS-G-630-4P
|
500-630
|
1
|
50.5*30.5*33
|
50.5*30.5*33
|
18.75
|
17.75
|
|
GATS-G-1000-4P
|
800-1000A
|
1
|
71*40*37
|
71*40*37
|
46.5
|
44.5
|
|
GATS-G-1250-4P
|
1250A
|
1
|
71*40*37
|
71*40*37
|
50
|
48
|
|
GATS-G-1600-4P
|
1600A
|
1
|
71*40*37
|
71*40*37
|
55
|
53
|
|
GATS-G-2000-4P
|
2000A
|
1
|
71*50*60
|
71*50*60
|
91
|
89
|
|
GATS-G-2500-4P
|
2500A
|
1
|
71*50*60
|
71*50*60
|
101
|
99
|
|
GATS-G-3200-4P
|
3200A
|
1
|
71*50*60
|
71*50*60
|
111
|
102
|
