Quick Details
-
Brand Name:
-
Kohon
-
Place of Origin:
-
Guangdong, China
-
Cross Reference:
-
None
-
Name:
-
Custom 7 Segment LED Display
-
Certificate:
-
ISO 9001:2015 / ROHS
-
Part NO.:
-
KHN408010AWB1D-2S
-
Display size (W x H x T):
-
71.5 x 25.7 x 7.5 mm
-
Digit height:
-
0.8 inch
-
Emitting color:
-
Blue and White
-
Brightness:
-
70-160 mcd @ 20 mA
-
Display details:
-
4 digits + colon + custom icons
-
Polarity configuration:
-
Common anode
-
Mounting type:
-
Through hole
Quick Details
-
D/C:
-
22XX
-
Package:
-
14 pins - DIP
-
Type:
-
LED Display
-
Brand Name:
-
Kohon
-
Place of Origin:
-
Guangdong, China
-
Cross Reference:
-
None
-
Name:
-
Custom 7 Segment LED Display
-
Certificate:
-
ISO 9001:2015 / ROHS
-
Part NO.:
-
KHN408010AWB1D-2S
-
Display size (W x H x T):
-
71.5 x 25.7 x 7.5 mm
-
Digit height:
-
0.8 inch
-
Emitting color:
-
Blue and White
-
Brightness:
-
70-160 mcd @ 20 mA
-
Display details:
-
4 digits + colon + custom icons
-
Polarity configuration:
-
Common anode
-
Mounting type:
-
Through hole
What is a 7 segment led display?
7 segment led display, or seven segment led display, is a form of optoelectronics display component for displaying numerals, decimal points, letters and symbols in all kinds of led digital indicators.
Emitting dual color blue white 0.8 inch 4 digit custom 7 segment led display for alarm clocks
1) Type: custom 4 digit 7 segment led display 0.8" digit height

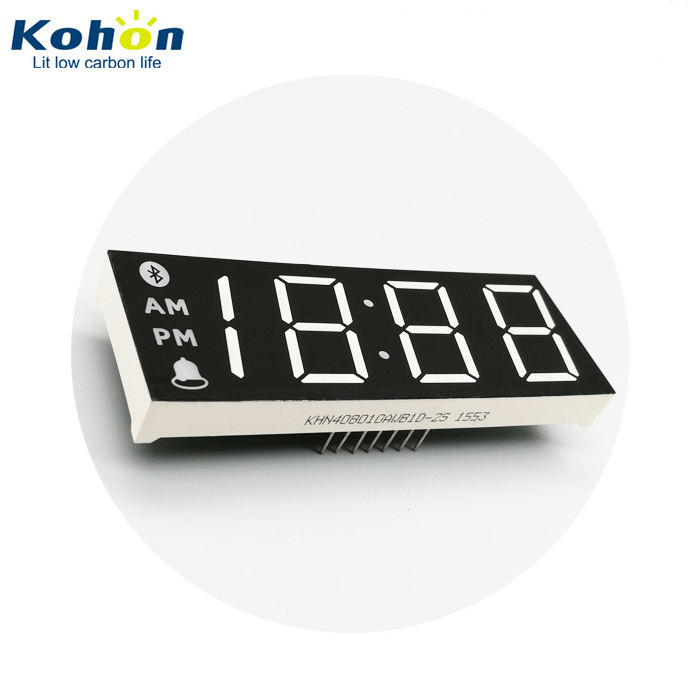

2) Image of display
3) 7 segment led display sizes and pins
4) 7 segment led display circuit diagram
5) 7 segment led display datasheet
Electrical and optical parameters:
| Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
| Luminous Intensity | I v | B: 70 | W: 200 | B: 160 | mcd | B: I f =20mA W: I f =5mA |
| Chromaticity Coordinate | λ d | / | X: 0.27 / Y: 0.30 | / | / | I f =5mA |
| Dominant Wavelength | λ d | 460 | / | 470 | nm | I f =20mA |
| Forward Voltage | V f | 2.7 | / | 3.6 | V | I f =20mA |
| Reverse Current | I r | / | / | 50 | μA | V r =5V |
| Forward Current(suggested) | I f | 1 | 2-5 | 15 | mA | / |
Absolute Maximum Ratings:
| Parameter | Rating | Unit |
| Reverse Voltage | 5 | V |
| Power Dissipation | 50 | mW/chip |
| Operation Temperature | -20 to +85 | °C |
| Storage Temperature | -20 to +85 | °C |
| Storage Humidity | 45%-85% | RH |
| Soldering Temperature(Wave soldering) | 260 °C in 3s, Iron soldering<360°C | |
| Peak IF(mA)(1/10 duty cycle 0.1ms pulse width) | 80 | mA/chip |
| Continuous Forwrd Current | 20 | mA/chip |
A. What we do
production-on-demand
B. Polarity configuration
Common Cathode , all of the cathode(negative terminals) of the segment led are connected and brought out to a common pin.
Common Anode , all of the anode(positive terminals) of the segment led are connected and brought out to a common pin.
C. How to choose 7 segment led display
- Digit quantity -- 1-digit, 2-digit, 3-digit, 4-digit, 5-digit, 6-digit and Customized;
- Digit height -- 0.2 inch to 5 inch;
- Emitting color -- red / yellow / blue / orange / white / yellow-green / pure green ;
- Surface color -- black, grey or red;
- Lens colors -- white, yellow, red, green, transparent;
- Polarity configuration -- common anode or common cathode ;
- Pin Configuration -- Through hole type, straight or bent pins, DIP or SIP package
