Quick Details
-
Brand Name:
-
OEM & ODM
-
Use:
-
FTTH
-
Warranty Time:
-
5 years
-
Applicable fiber:
-
SMF(ITU-G652), MMF(ITU-G651), NZDS(ITU-G655), DS(ITU-G653),EDF
-
PM fiber:
-
Panda, Bow-tie and Elliptical fiber
-
Endface direct view:
-
PAS and fiber endface direct view available
-
Cladding diameter:
-
80~125um
-
Coating diameter:
-
160~900um
-
Average splice loss:
-
SMF: 0.03dB, MMF: 0.05dB, NZDS:0.02dB, PMF 0.06dB
-
Extinction ratio:
-
-32dB (PANDA)
-
Cleaved length:
-
Standard 8~10mm
-
Alignment method:
-
Profile and Endface alignment
-
Splicing program:
-
40group
Quick Details
-

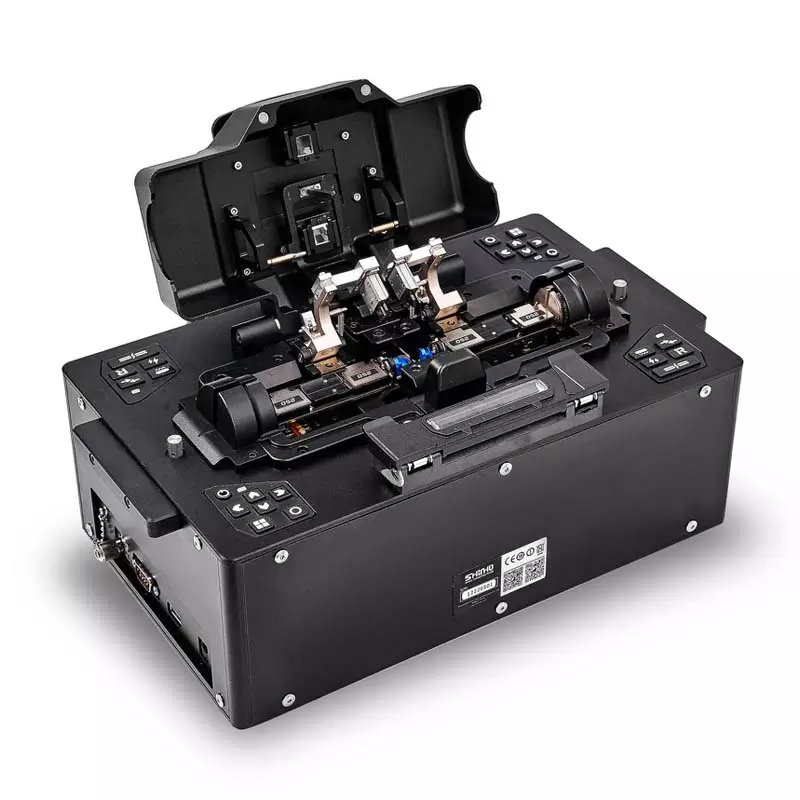

Type:
-
Fiber fusion splicer
-
Model Number:
-
S-12PM
-
Place of Origin:
-
China
-
Brand Name:
-
OEM & ODM
-
Use:
-
FTTH
-
Warranty Time:
-
5 years
-
Applicable fiber:
-
SMF(ITU-G652), MMF(ITU-G651), NZDS(ITU-G655), DS(ITU-G653),EDF
-
PM fiber:
-
Panda, Bow-tie and Elliptical fiber
-
Endface direct view:
-
PAS and fiber endface direct view available
-
Cladding diameter:
-
80~125um
-
Coating diameter:
-
160~900um
-
Average splice loss:
-
SMF: 0.03dB, MMF: 0.05dB, NZDS:0.02dB, PMF 0.06dB
-
Extinction ratio:
-
-32dB (PANDA)
-
Cleaved length:
-
Standard 8~10mm
-
Alignment method:
-
Profile and Endface alignment
-
Splicing program:
-
40group
|
Heating mode
|
|
Manual, Automatic
|
|
|
|||
|
Operation mode
|
|
Manual,Automatic
|
|
|
|||
|
Typical splice time
|
|
SMF/MMF: 15seconds; PM Fiber:45seconds
|
|
|
|||
|
Typical heating time
|
|
Typical 50s, could customize
|
|
|
|||
|
PM Splicing mode
|
|
Support splicing at 45 degree and 90 degree
|
|
|
|||
|
Fiber magnification
|
|
180X (X or Y view), 90X (X and Y view)
|
|
|
|||
|
Viewing display
|
|
Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
|
|
|
|||
|
Data storage
|
|
4000 groups data records
|
|
|
|||
|
Tension test
|
|
1.96N
|
|
|
|||
|
Interface
|
|
GUI menu interface, easy for operation
|
|
|
|||
|
Power supply
|
|
Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
|
|
|
|||
|
Terminal
|
|
USB 2.0 port, for software upgrading, records exporting
|
|
|
|||
