- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kechuang
-
Weight:
-
100 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
heater with robot arms
-
Usage:
-
Automatic Control Operation
-
Certification:
-
CE ISO
-
Function:
-
Stable
-
Power:
-
300kw
-
Model Number:
-
XZG300F
-
Product Keywords:
-
induction heater dual station
Quick Details
-
Type:
-
Induction Heater
-
Power Source:
-
Electric
-
Voltage:
-
380v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kechuang
-
Weight:
-
100 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
heater with robot arms
-
Usage:
-
Automatic Control Operation
-
Certification:
-
CE ISO
-
Function:
-
Stable
-
Power:
-
300kw
-
Model Number:
-
XZG300F
-
Product Keywords:
-
induction heater dual station
Products Description
|
Model
|
XZG-400SCN
|
|
Input voltage
|
380V ±10%
|
|
incoming current
|
≤880A
|
|
frequency
|
50-60Hz
|
|
Inverter frequency
|
1-20kHz
|
|
output power
|
≤400kw
|
|
control precision
|
5‰
|
|
Power output range
|
10%-100%
|
|
Inverter power factor
|
≥0.96
|
|
control mode
|
Constant current, constant power, constant temperature
|
|
Cooling water pressure
|
0.1-0.3MPa
|
|
environment temperature
|
5℃-45℃
|
Main characteristic

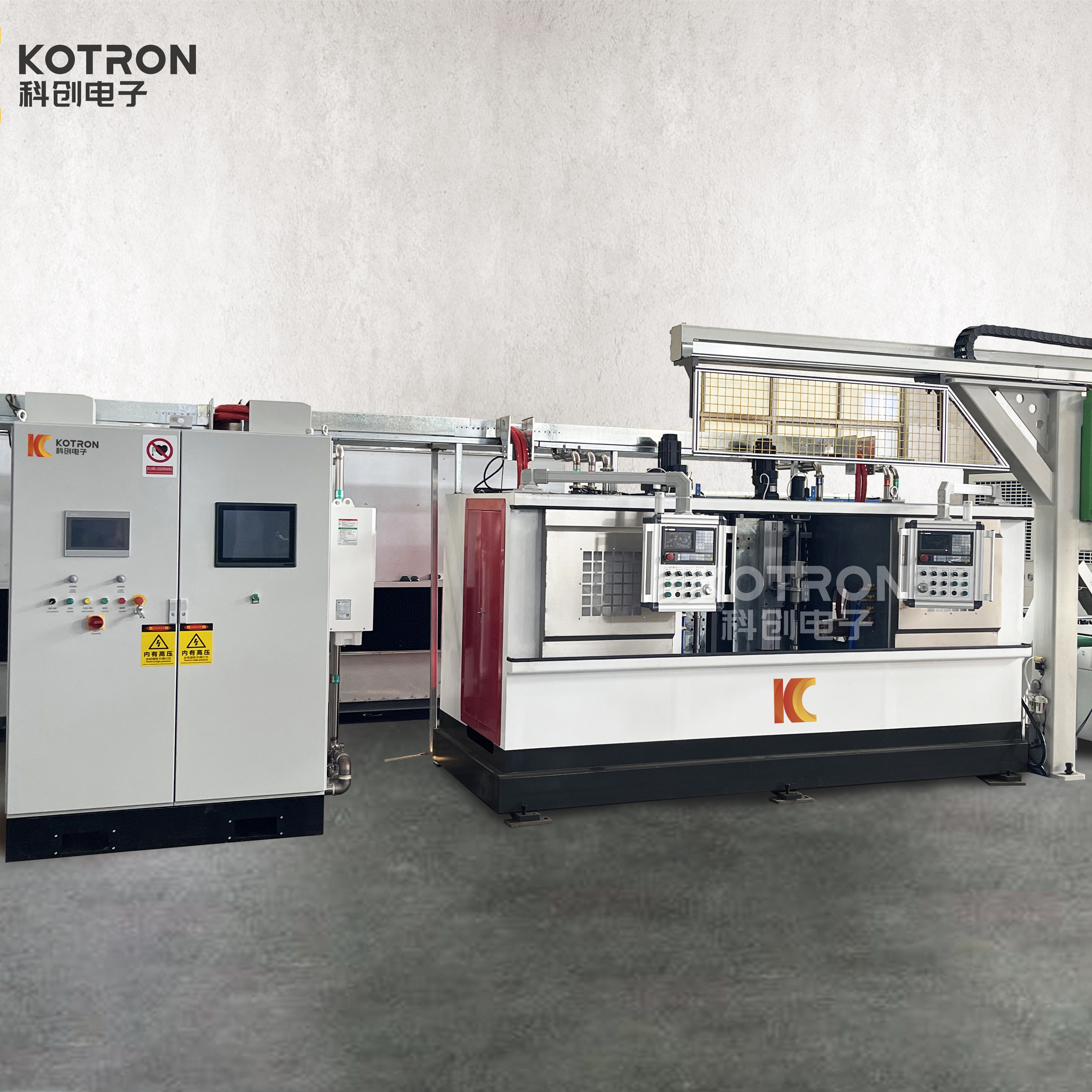

KK module quenching - Linear KK module quenching - Linear KK module quenching equipment.
KK MODULE is mainly through the modular design, ball screw and linear guide rail integrated together, so it can provide high precision, fast installation, selection, high rigidity, small size, space saving and other characteristics. The HIGH PRECISION BALL SCREW IS USED AS THE DRIVING MECHANISM, AND THE U-SHAPED TRACK IS USED AS THE GUIDING MECHANISM TO ENSURE THE PRECISION AND RIGIDITY. Both sides of the U-shaped track of KK module need high-frequency quenching to increase the wear resistance of the guide. Zhengzhou Kechuang Electronics Co., Ltd. specializes in customized KK module quenching - linear KK module linear KK module quenching equipment.
1. The SPECIAL NUMERICAL CONTROL SYSTEM FOR heat treatment is adopted, with advanced performance, easy debugging and use, which can meet the quenching needs of complex workpiece to the greatest extent.
2. Can realize the quenching mode: continuous scanning quenching, quenching at the same time, continuous scanning quenching (section according to the program Settings).
3. Typical workpiece used (in the corresponding size range) guide rail, table scanning quenching, etc.
4. Quench heating and cooling water control interfaces are reserved for the electrical control system. The quenching process and cooling process can be controlled according to the technological needs.
5. Easy to use and maintenance, low failure rate, no leakage phenomenon, to solve the old problems of machine tools.
6. The guide rail adopts linear bearing, which has high precision, low friction and long life. Lead screw with ball screw, light sound, fast speed.
Product Application
1.
Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools.
2.·Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel, aluminum wheel, valve,rock arm shaft,semi drive shaft, small shaft and fork.
3.Heat treatment for various electric tools, such as gear and axes.
4.Heat treatment for machine tools,such as lathe deck and guide rail. 5. Hardening for various hardware metal parts and machined parts, such as shaft,gear chain wheel, cam,chuck and clamp.
6. Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
7. Annealing of various stainless steel products, such as stainless steel basin,annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
·8. Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.
