Quick Details
-
Return Force (kN):
-
3150 kN
-
Place of Origin:
-
Shandong, China, Shandong, China
-
Brand Name:
-
KEWOSEN
-
Year:
-
2023
-
Voltage:
-
Customized
-
Weight (T):
-
11 T
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
Hot Product 2023
-
Product Name:
-
Three Beams and Four Columns Hydraulic Press Machine
-
Power Source:
-
Hydraulic Power
-
Keyword:
-
Metal Head Deep Drawing Machine hydraulic press machine
-
After-sales Service Provided:
-
Video Technical Support
-
Usage:
-
Wheelbarrow and Trolley Making Hydraulic Press Machine
-
Certification:
-
ISO9001 CE
-
Type:
-
4 Columns
-
Function:
-
Deep Drawing Press Machine
-
Advantage:
-
hydraulic press machine double press station
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
800
-
Ejector Force (kN):
-
630
-
Return Force (kN):
-
3150 kN
-
Place of Origin:
-
Shandong, China, Shandong, China
-
Brand Name:
-
KEWOSEN
-
Year:
-
2023
-
Voltage:
-
Customized
-
Weight (T):
-
11 T
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
Hot Product 2023
-
Product Name:
-
Three Beams and Four Columns Hydraulic Press Machine
-
Power Source:
-
Hydraulic Power
-
Keyword:
-
Metal Head Deep Drawing Machine hydraulic press machine
-
After-sales Service Provided:
-
Video Technical Support
-
Usage:
-
Wheelbarrow and Trolley Making Hydraulic Press Machine
-
Certification:
-
ISO9001 CE
-
Type:
-
4 Columns
-
Function:
-
Deep Drawing Press Machine
-
Advantage:
-
hydraulic press machine double press station
Product Description

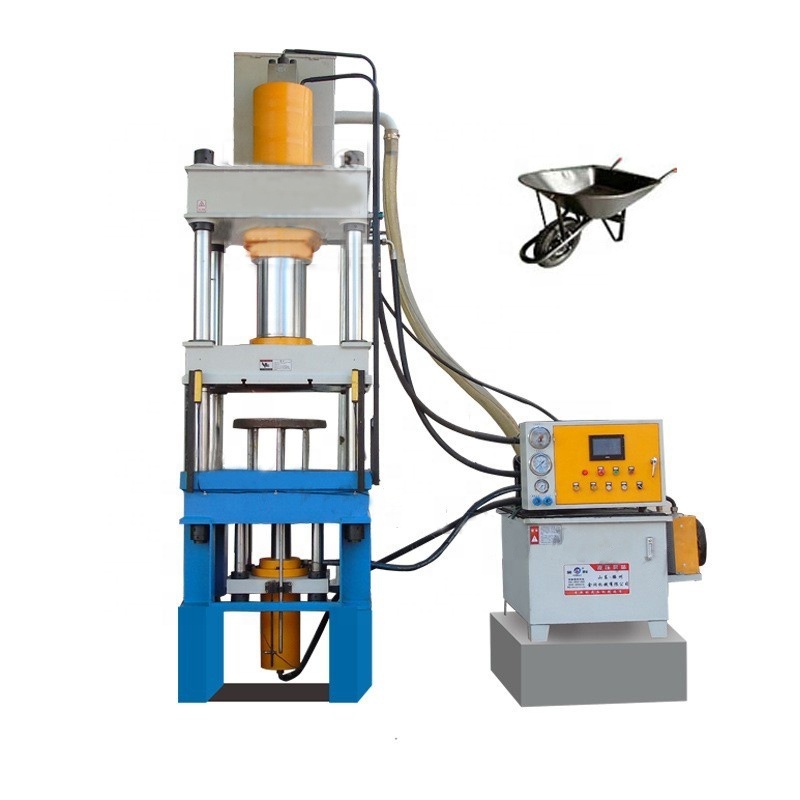

Deep Drawing Hydraulic Press Machine
Three-beam four-column hydraulic press. This series of hydraulic presses are general-purpose hydraulic presses, also known as universal hydraulic presses. It is mainly used for drawing, tumbling, bending and stamping sheet metal parts, and can also be used for general pressing.
Specification
|
Product Name
|
Deep Drawing Hydraulic Press Machine
|
|
Condition
|
New
|
|
Machine Type
|
Hydraulic Press Machine
|
|
Feature
|
Three-beam and Four-column
|
|
Brand Name
|
KEWOSEN
|
|
Key Selling Points
|
High-accuracy
|
|
Warranty
|
2 Years
|
|
Applicable Industries
|
Farms, Food & Beverage Shops, Building Material Shops, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Advertising Company, Restaurant, Printing Shops, Retail, Other, Home Use, Energy & Mining, Construction Works.
|
|
Showroom Location
|
None
|
|
Marketing Type
|
New Product
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
2 Years
|
|
Core Components
|
Bearing, Motor, Pump, Engine
|
|
Place of Origin
|
Shandong, China
|
|
Project
|
63T定制
|
100T
|
100t
|
200t
|
200t
|
200t
|
200t
|
300t
|
315t
|
|
Maximum liquid pressure （Mpa）
|
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
|
Slider stroke (mm)
|
400
|
500
|
500
|
500
|
500
|
500
|
500
|
800
|
800
|
|
Maximum opening height (mm)
|
700
|
800
|
800
|
900
|
900
|
900
|
900
|
1250
|
1250
|
|
Table size (mm)
|
700*620
|
700*620
|
720*580
|
800*800
|
900*700
|
1000*900
|
1000*1000
|
1260*1200
|
1260*1200
|
|
Down speed of empty range (mm / S)
|
240
|
80
|
80
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Working speed (mm / S)
|
15-30
|
16--24
|
16--24
|
6--12
|
6--12
|
6--12
|
6--12
|
6--12
|
6--12
|
|
Return speed (mm / S)
|
180
|
100
|
100
|
100
|
100
|
100
|
100
|
80
|
80
|
|
Motor power (kw)
|
5.5
|
7.5
|
7.5
|
7.5
|
7.5
|
7.5
|
7.5
|
22
|
22
|
|
Hydraulic cushion force (t)
|
20
|
30
|
30
|
63
|
63
|
63
|
63
|
100
|
100
|
|
Hydraulic pad stroke (mm)
|
|
200
|
200
|
250
|
250
|
250
|
250
|
300
|
300
|
|
Structural form of hydraulic pad
|
Lower type
|
Lower type
|
Lower type
|
Lower type
|
Lower type
|
Lower type
|
Lower box type
|
Lower box type
|
Upper type
|
|
Hydraulic pad size(mm)
|
550*500
|
550*500
|
600*450
|
650*650
|
750*550
|
750*750
|
750*750
|
900*900
|
900*900
|
|
Approximate weight (t)
|
2.87
|
3.5
|
3.4
|
5.2
|
5.2
|
6.3
|
6.1
|
12.3
|
12.3
|
Details Images
Packing & Delivery
Ordinary plastic film packaging, fumigated wooden box packaging.
