Quick Details
-
Power:
-
16KW/ 35KW
-
Dimension(L*W*H):
-
19500*3500*2200mm
-
Weight:
-
1000
-
Product name:
-

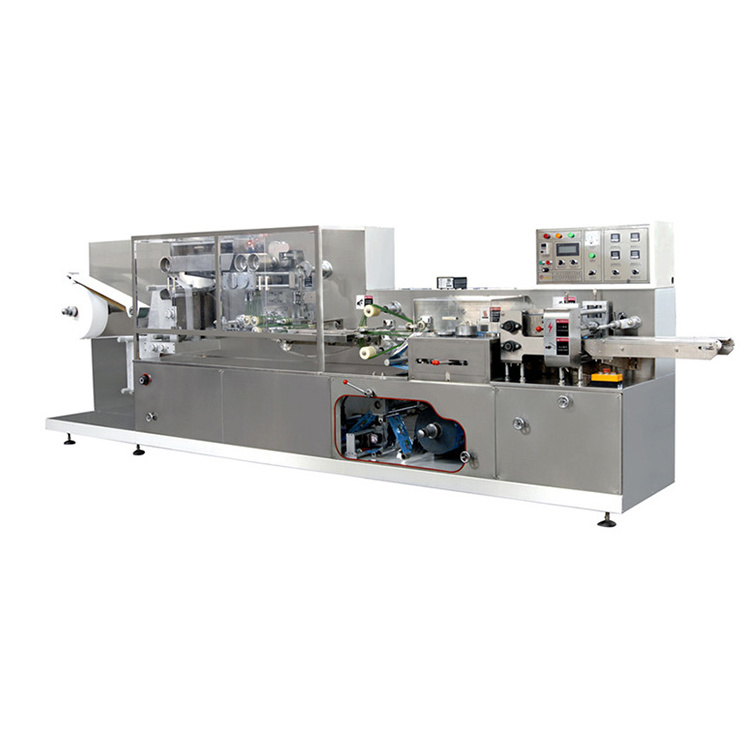

Automatic Wet Wipes Packing Machine
-
Name:
-
Automatic Wet Wipes Production Line
-
Type:
-
Complete Set Baby Wet Wipes Machine
-
Keyword:
-
Wet Wipe Converting Machine
-
Function:
-
Wet Tissue Sprayed
-
Suitable Raw Material:
-
Spunlaced nonwoven, air-laid nonwovens, nonwovens
-
wet wipes size:
-
L120-220mm*W90-120mm
-
Moisture type:
-
Fluid pipes spray independently
-
Flow control:
-
2.5-4.5times flow meter control
-
Packing style:
-
Automatic packing machine full servo reciprocating
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Voltage:
-
220V/380V
-
Power:
-
16KW/ 35KW
-
Dimension(L*W*H):
-
19500*3500*2200mm
-
Weight:
-
1000
-
Product name:
-
Automatic Wet Wipes Packing Machine
-
Name:
-
Automatic Wet Wipes Production Line
-
Type:
-
Complete Set Baby Wet Wipes Machine
-
Keyword:
-
Wet Wipe Converting Machine
-
Function:
-
Wet Tissue Sprayed
-
Suitable Raw Material:
-
Spunlaced nonwoven, air-laid nonwovens, nonwovens
-
wet wipes size:
-
L120-220mm*W90-120mm
-
Moisture type:
-
Fluid pipes spray independently
-
Flow control:
-
2.5-4.5times flow meter control
-
Packing style:
-
Automatic packing machine full servo reciprocating
Wet and dry wipes packing machinery single manufacturers
Wet wipes production line:
1.
Control driving system:PLC,GOT operation interface,precision transmission by servo motor.
2.
Unwinding mechanism:independent drive of unwinding device,automatic control of tension.
3.
Folding and traction mechanism:various adjustable folding ways,synchronous transmission by servo traction.
4.
Quantitative humidifying system:two sets of shower pipes,uniform humidifying in 2.5-4.0 times scope.
5.
Rotary cutting-off system:cut off by rolling cutter synchronously,cutting length controlled precisely,flexible and easy adjustable nonwovens length.
6.
Folding and conveying device:folded neatly by manipulators,synchronous and flexible transmission of wet wipes.
7.
Bag making and forming device:tension of the film and width and height of packing bags can be adjustable automatically.
8.
Packaging,cutting and sealing device:adopting Taiwan Rufong vertical sealing technology,advanced horizontal sealing of Chinese mainland.The seal is firm and beautiful.
9.
Safety guarantee system:Fixed,movable and closed preventive device.
Technical Parameter
| Production speed | 270~400 cuts/minute; about 40-50 bags/minute |
| Number of slitting channels | 12 channels |
| Width | 1000-1520mm |
| Power supply | 380V 50HZ three-phase power or customized |
| Total power | 13KW |
| Applicable raw materials | Spunlace non-woven fabric, hot-rolled non-woven fabric, dust-free paper, etc. |
| Material weight | 35-80 g/m2 |
| Folding method | "Z"-shaped folding (with or without extraction) |
| Humidification method | Preset automatic metering humidification |
| Humidification accuracy | +5% |
| Machine net weight | 9000kg |
| Humidification mixing system | Double mixing barrel with agitator |
| Mixing barrel size | 800×800 (mm, diameter×height) |
| Capacity | 400 liters * 2 pieces |
1. Packaging:
Packed by standard import & export wooden cases or bcontainer
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
