Quick Details
-
Weight:
-
135kg, 135kg
-
Name:
-
mini hay swather
-
Model:
-
KL-80
-
Cutting width (mm):
-
800mm
-
Power:
-
5.5HP
-
Stubble Height:
-
<50mm
-
No. Of divider:
-
2 piece
-
Chain:
-
2rows
-
Capacity:
-
1500-2000m2/h
-
Size:
-
1800*800*800mm
-
Application:
-
Grain harvest
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KELLEN
-
Dimension(L*W*H):
-
1800*800*800mm
-
Weight:
-
135kg, 135kg
-
Name:
-
mini hay swather
-
Model:
-
KL-80
-
Cutting width (mm):
-
800mm
-
Power:
-
5.5HP
-
Stubble Height:
-
<50mm
-
No. Of divider:
-
2 piece
-
Chain:
-
2rows
-
Capacity:
-
1500-2000m2/h
-
Size:
-
1800*800*800mm
-
Application:
-
Grain harvest
Product Description

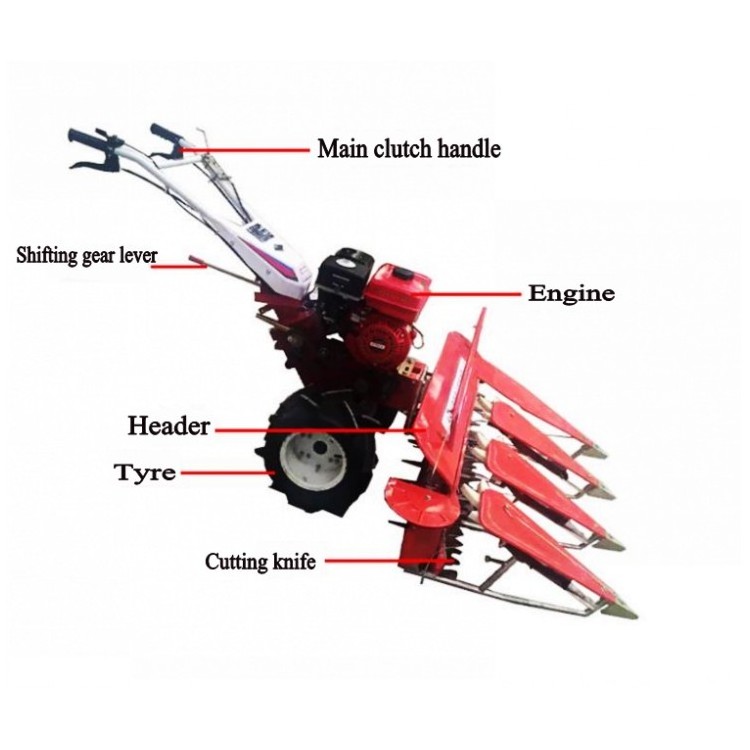

Hand push
swather
is composed of two parts, the main machine and the harvest table. The main engine is composed of a frame, an engine, a variable box, a power transmission device and an operating device. The cutting table is composed of divider, cutter, conveying device and transmission box.
Detailed Images
|
Model
|
KL-80
|
KL-100
|
KL-120
|
|
Power
|
5.5HP
|
5.5HP
|
8-10HP
|
|
Stubble Height
|
<50mm
|
<50mm
|
<50mm
|
|
No. Of divider
|
2 piece
|
3piece
|
4 piece
|
|
Chain
|
2rows
|
2rows
|
2rows
|
|
Width of reaper
|
800mm
|
1000mm
|
1200mm
|
|
Capacity
|
1500-2000m2/h
|
1680-2660m2/h
|
2000-3500m2/h
|
|
Weight
|
135kg
|
145kg
|
148kg
|
|
Size
|
1800*800*800mm
|
1800*1000*800mm
|
2100*1200*800mm
|
1. Anti-skid tires
Anti - slip reinforcement wheel craftsmanship is more robust and labor - saving
2. Strong impetus
Powerful power, long life, full combustion of fuel strong power output
3. Sharp saw blade
A sharp saw blade cuts faster and more efficiently
Product Presentation
Working principle: during operation, the machine is driven forward by the main machine, and the divider separates the crops at the same time, the cutting knife cuts off the crops. Under the action of the upper and lower threshing chain, threshing wheel and spring guide rod, the guide plate transfers the cut crops to the right side of the machine's forward direction and lays them neatly on the ground.
The forward speed and cutting speed of the machine are controlled by the hand throttle size.
