Quick Details
-
Lamp Body Material:
-
Aluminum
-
Input Voltage(V):
-
220
-
Lamp Luminous Flux(lm):
-
500
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TLZ
-
Model Number:
-
TLZ-01AD, TLZ-01AD
-
LED Light Source:
-
LED COB
-
Working Temperature(℃):
-
-30 - 50
-
Beam Angle:
-
24°
-
led up and down light Power:
-
7W/10W/12W/15W/20W/30W
-
led up and down light Shape:
-
Round
-
Energy saving:
-
YES
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Lamp Body Material:
-
Aluminum
-
Input Voltage(V):
-
220
-
Lamp Luminous Flux(lm):
-
500
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TLZ
-
Model Number:
-
TLZ-01AD, TLZ-01AD
-
LED Light Source:
-
LED COB
-
Working Temperature(℃):
-
-30 - 50
-
Beam Angle:
-
24°
-
led up and down light Power:
-
7W/10W/12W/15W/20W/30W
-
led up and down light Shape:
-
Round
-
Energy saving:
-
YES

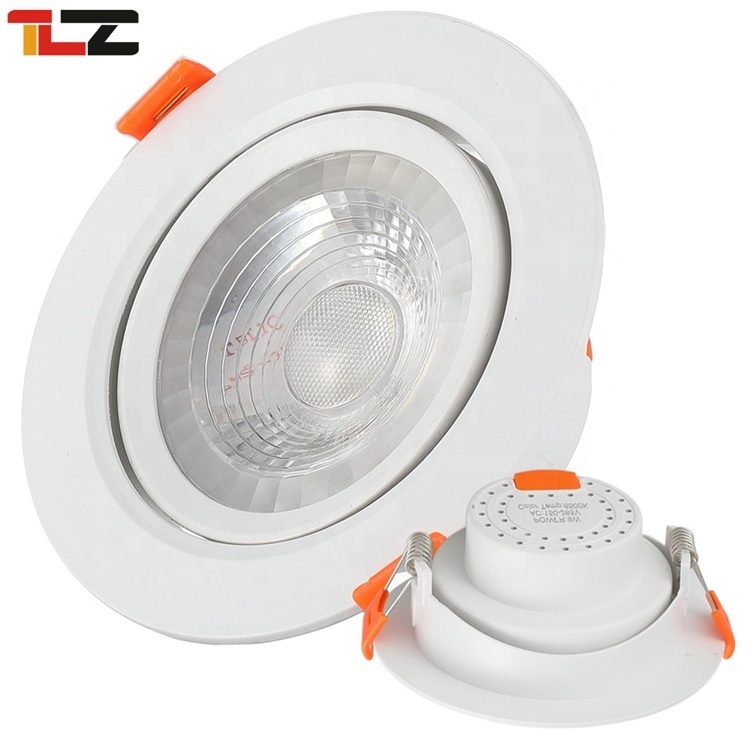

High quality module LED COB white round shape decoration aluminum ceiling recessed spot lights with led light
| Model No. | Power | Size | Cut Size | Lumen | CRI | PF |
Housing Material |
Driver |
Voltage |
|
Round Plastic
Ceiling Light |
3w | 75*40.3mm | 55mm | 95lm/W | Ra>80 | >0.5 | ABS Plastic | non-isolated |
AC165-265V/
AC85-265V |
| 5w | 91*45.7mm | 75mm | 95lm/W | Ra>80 | >0.5 | ABS Plastic | non-isolated |
AC165-265V/
AC85-265V |
|
| 7w | 91*45.7mm | 75mm | 95lm/W | Ra>80 | >0.5 | ABS Plastic | non-isolated |
AC165-265V/
AC85-265V |
|
| 9w | 112*50.7mm | 90mm | 100lm/W | Ra>80 | >0.5 | ABS Plastic | non-isolated |
AC165-265V/
AC85-265V |
|
| 12w | 133*55.7mm | 115mm | 100lm/W | Ra>80 | >0.5 | ABS Plastic | non-isolated |
AC165-265V/
AC85-265V |
|
|
Square Plastic
Ceiling Light |
3W | 75*75*40.3mm | 115mm | 95lm/W | Ra>80 | >0.5 | ABS Plastic | non-isolated |
AC165-265V/
AC85-265V |
| 5W | 91*91*45.7mm | 115mm | 95lm/W | Ra>80 | >0.5 | ABS Plastic | non-isolated |
AC165-265V/
AC85-265V |
|
| 7W | 91*91*45.7mm | 115mm | 95lm/W | Ra>80 | >0.5 | ABS Plastic | non-isolated |
AC165-265V/
AC85-265V |
|
| 9W | 112*112*50.7mm | 115mm | 100lm/W | Ra>80 | >0.5 | ABS Plastic | non-isolated |
AC165-265V/
AC85-265V |
|
| 12W | 133*133*55.7mm | 115mm | 100lm/W | Ra>80 | >0.5 | ABS Plastic | non-isolated |
AC165-265V/
AC85-265V |
Features:
1.2 year warranty.
2. using high lumen SMD LED.
3.Dfferent angles can be adjusted according to the environment.
4.The radiator with hoes, better extend the life time of the product.
