Commercial Industrial Solar Roof exhaust Ventilation Fan for Big Warehouse Garage Factory Ventilation

Commercial Industrial Solar Roof exhaust Ventilation Fan for Big Warehouse Garage Factory Ventilation

FOB Reference Price: Get Latest Price

≥5 Sets

US $200

≥100 Sets

US $160

≥300 Sets

US $140

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

After-sales Service Provided:: Online support

Place of Origin:: Shandong, China

Brand Name:: MUHE

Model Number:: MHB

Voltage:: Other, 220/380V

Application:: Animal Husbandry

Product name:: heavy hammer exhaust fan for poultry farm for ventilation

Usage:: Air Cooling System

Keyword:: Poultry Exhaust Fan

Motor:: Chinese Motor

Material:: Aluminum Alloy

Quick Details

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Farms, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, Other

Electric Current Type:: AC

Mounting:: Wall Fan

After-sales Service Provided:: Online support

Place of Origin:: Shandong, China

Brand Name:: MUHE

Model Number:: MHB

Voltage:: Other, 220/380V

Application:: Animal Husbandry

Product name:: heavy hammer exhaust fan for poultry farm for ventilation

Usage:: Air Cooling System

Keyword:: Poultry Exhaust Fan

Motor:: Chinese Motor

Material:: Aluminum Alloy

Products Description

SHANDONG MUHE Poultry Farming

Heavy Hammer Exhaust Fan

Animal Husbandry Equipment Poultry Farm Fan

Model (Drop Hammer)	Blade Dia(MM)	Blade Rotational Speed(RPM)	Air Flow (M³/H)	Noise (DB)	Input Power (W)	Rated Voltage (V)	Size High-Wide-Thickness(MM)
MHB-620	500(20")	1400	5700	≤ 60	370	220/380	620-620-370
MHB-800	710(28")	650	18000	≤ 60	370	220/380	800-800-400
MHB-900	750(30")	650	20000	≤ 60	550	220/380	900-900-400
MHB-1000	900(36")	640	23000	≤ 60	550	220/380	1000-1000-400
MHB-1100	1000(39")	600	32500	≤ 60	750	220/380	1100-1100-400
MHB-1220	1100(43")	460	38000	≤ 60	1100	220/380	1220-1220-400
MHB-1380	1250(50")	439	44000	≤ 60	1100	220/380	1380-1380-400
MHB-1530	1400(55")	439	55800	≤ 60	1500	220/380	1530-1530-400

FAN MODEL	Dimention(MM)
FAN MODEL		A	B	C	D	E
MHB-620 (20")	620	620	370	255	115
MHB-800 (28")	800	800	400	275	125
MHB-900 (30")	900	900	400	275	125
MHB-1000(36")	1000	1000	400	275	125
MHB-1100(39")	1100	1100	400	275	125
MHB-1220(43")	1220	1220	400	275	125
MHB-1380(50")	1380	1380	400	275	125
MHB-1530(55")	1530	1530	400	275	125

Main Feature

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust;
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

Details Images

FAN BLADES

1. Material : Krupp 430 Stainless Steel, Thickness 1.2 mm

2. Diameter: 1250 mm
Advantage:
Large Air Flow, No Deformation, No fracture, No Dust, Attractive and Durable.
Note:
Blade Material Also Have Galvanized Sheet, Aluminum Alloy for Chooice.

BELT PULLEY

1. Material: High Strength Aluminum-Magnesium Alloy by Die-Casting.
2. Blast-Sanding Treatment, Eliminate Internal Stress to Improve Its Own Rigidity and Stability
Advantage:
Light Weight, Low Vibration ,Attractive appearance.

DYNAMIC-BALANCE TESTER

Fan Blades Are Adjusted by Dynamic-Balance Tester, the Weight Tolerance of Each Blade is Controlled Within 1 g.
Advantage:
Ensure the Fan Smooth Running, Lower Vibration, Less Noise, Increase Stability.

OPENING SYSTEM

1.Material: High Quality Nylon PA66
2.Guide Rod: 304 Stainless Steel with Special Material Outside, High Strength,No Rust, Reduce Friction.
3.Rivet: 304 Stainless Steel , Wear-Resisting, No Rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.

BEARING

Imported Double-Row Bearing With Special Waterproof Design.
Advantage:
High Strength, Low Noise, Free Maintenance and Long Service Life.

BELT

Brand: Mitsuboshi Belt (Japanese)
Type: A type
Advantage:
Famous Brand; Long Service life;

Maintenance Free.

SAFE NET

Material: Hot-Dip Galvanized Wire is Coated With Plastic
Advantage:
Double Protection to Ensure Never Rust.

BLADE SUPPORT BASE

1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-In Connection
Advantage:
Compare With The Traditional Welding Connection , Our New Type Aluminum Magnesium Alloy Base Has Greatly Reduced the Friction Coefficient, Fixed More Firmly,

MOTOR

1. Brand: Chinese Famous motor,

Siemens & ABB & WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor Voltage and Frequency can be Customized.
100% Cupper Wire

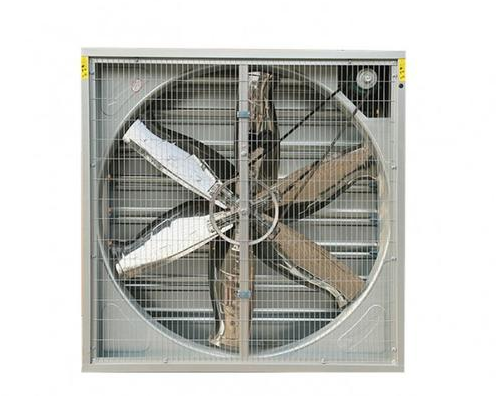

The MHB Fan is mainly composed of a blade, motor, outer frame protecting nets and supporting frames and shutters.The motor drives blade to cause air flow and shutters can open and close automatically to keep the dust from entering. The major parts are made of galvanized steel sheets and stainless steel sheets.
