- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

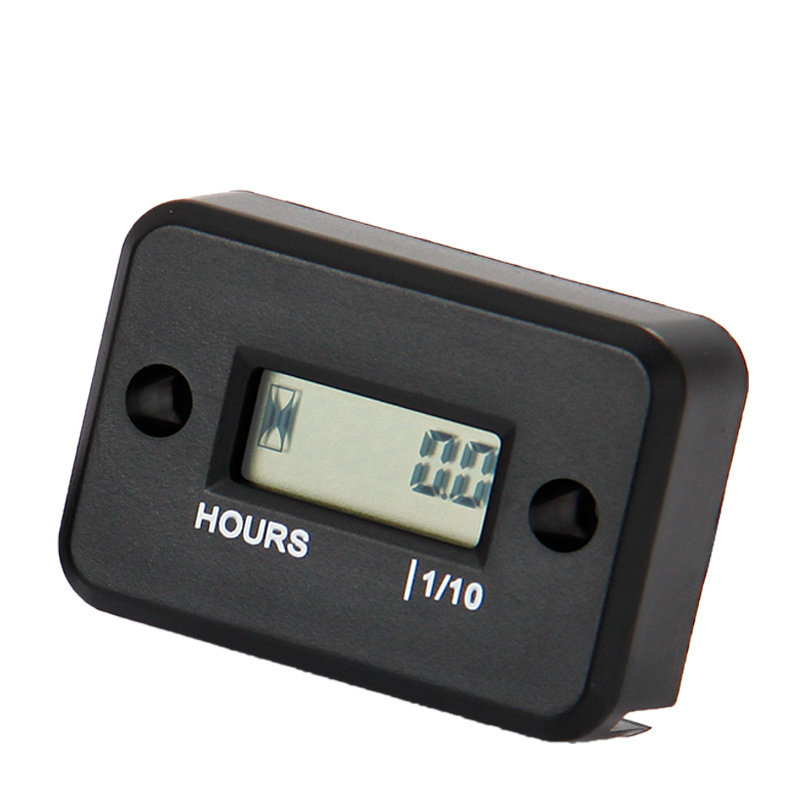

Inductive Hour Meter
-
Housing Material:
-
ABS
-
Timing Range:
-
0-99999.9H
-
Battery Capacity:
-
270mAh
-
Certification:
-
CE&RoHS
-
Theory:
-
Digital
-
Product Color:
-
Black/Orange/Yellow/Red/Blue/Green
Quick Details
-
Brand Name:
-
WUPP
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
HM006A
-
Product name:
-
Inductive Hour Meter
-
Housing Material:
-
ABS
-
Timing Range:
-
0-99999.9H
-
Battery Capacity:
-
270mAh
-
Certification:
-
CE&RoHS
-
Theory:
-
Digital
-
Product Color:
-
Black/Orange/Yellow/Red/Blue/Green
Products Description
There are six colors available for ordering: black, red, yellow, green, blue and orange. Please note the color or contact customer service. The default color is black
Product Function：
1.Dispaly :
2.Timing function:
After continously detecting the sianal from the engine spark plug wire,the hourglass stats to fash and the
meter starts timing.
Record the total working hours,range:0-99999H,non resettable. Timing resolution:0.1H when 00-9999.9H,1H when 10000-99999H.
3.Internal battery
Type:Lithium battery CR2430,capacity"270mAh.
Service life:>5 years(work 8 hours per day).
1.Dispaly :
Displayed by LCD screen,viewing angle:6 O'dock.
Digits:5,digit helght5.5mm.
LCD temperature resistance range : -30℃-80℃.
Digits:5,digit helght5.5mm.
LCD temperature resistance range : -30℃-80℃.
2.Timing function:
After continously detecting the sianal from the engine spark plug wire,the hourglass stats to fash and the
meter starts timing.
Record the total working hours,range:0-99999H,non resettable. Timing resolution:0.1H when 00-9999.9H,1H when 10000-99999H.
3.Internal battery
Type:Lithium battery CR2430,capacity"270mAh.
Service life:>5 years(work 8 hours per day).
*Product accessories：
The ties * 2 screws * 2 induction wires * 1
Please note that the order is divided into high voltage AC110-250V and low voltage AC/DC8-80V. Please note the voltage or contact
customer service!
Product Feature：
Low voltage design, built-in button battery power supply, safe and reliable
It is widely used for most gasoline engine equipment
【It is widely used in garden machinery such as hand propelled mowers, riding lawn movers, chain saws, etc; Road machinery such as tamping machine; Marine industries such as water motor and outboard motor; Motorcycle, off-road vehicle, beach vehicle, snowmobile and other vehicle industries; Portable generator, motorhome generator and other generator industries; Powered paragliding and other sports equipment; Agricultural machinery such as branch breaker, grass hoe, seeder, etc;And other equipment with spark plugs for gasoline engines】
Surface installation, screw fixation, convenient and fast, not easy to fall off
Blister packaging, safe transportation.
Product Parameters
|
Product Name
|
Hour Meter
|
|
Timing Range
|
9999.9 hour
|
|
Type of Battery
|
CR2430
|
|
Battery Capacity
|
270mAh
|
|
Product Number
|
HM006A
|
|
Item
|
Parameter
|
|
Housing material
|
ABS
|
|
Product dimension
|
54mm*37mm*14.5mm
|
|
Visual window size
|
23.7mm*10mm
|
|
Operation temperature
|
-30°℃-80C
|
|
Waterproof level
|
IP67
|
|
Weight
|
59g
|
