Wholesale solar energy system products high flow high pressure booster water pump

1. No MOQ required, Most solar water pumps ready in stock(fast lead time) 2. Two Years Warranty 3. Experienced manufacturer of over 15 years 4. Manufacture more than 50000pcs per year 5. Exported more than 60 countries

1. Where will the pump be used?
2. How much water discharge ( liters or gallon or m3) required per day or per hour?
3. Do you need a submersible pump or surface pump?
4. If you want to pump the water from borehole(deep well), the depth of borehole?
5. The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?
6. The height of tank?

Solar DC surface pump Our Solar surface pump are with special materials used, suitable for salty water.

1）The efficiency is improved 25% by the permanent magnetism,direct current, brushless, non-sensor motor. 2） Adopt double plastic package for rotor and stator,motor insulation ≥300MΩ,the motor security was much improved. 3）100% copper wire, DW-300 cold-rolled silicon steel sheet. - Stainless steel 304 & 316 shaft , motor body, screw.

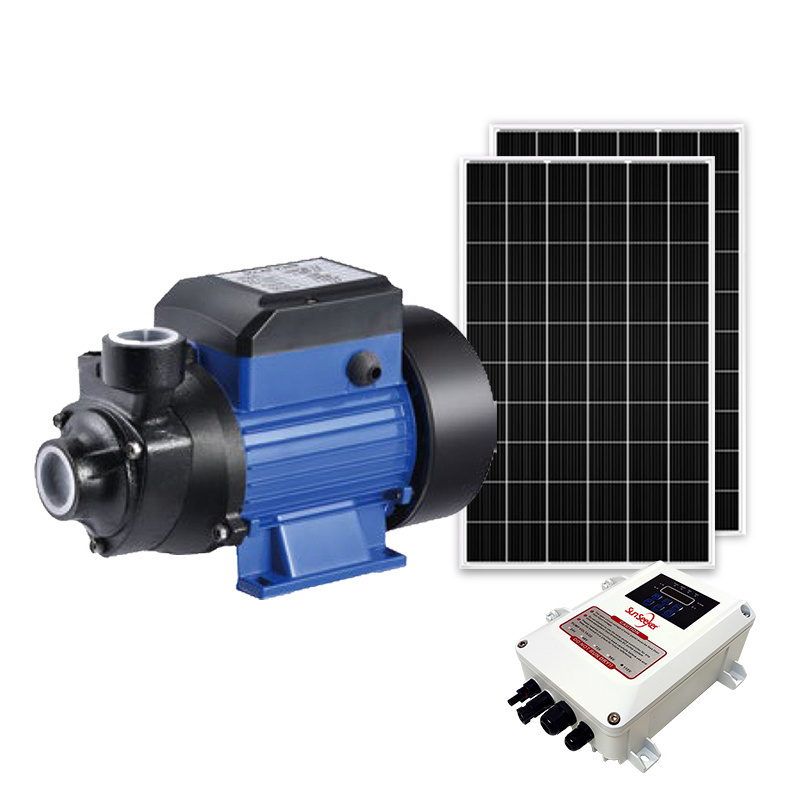

Solar pumping system mainly consists of PV modules, solar pumping controller / inverter and water pumps, Solar panels convert sunlight to electrical energy which is passed to the solar pump controller, The solar controller stabilizes the voltage and output power to drive the pump motor, Even on cloudy days,it can pump 10% water flow per day. Sensors are also connected to the controller to protect the pump from running dry as well as to automatically stop the pump working when the tank is full. Solar panel collects sunlight→DC electricity energy → Solar Controller (rectification,stabilization, amplification,filtering) →available DC electricity→(charge the batteries)→pumping water Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency,The recommended solar panels power = Pump Power * (1.2-1.5)

Brushless DC Pump: 1 PCS Solar pump with 2m cable, longer cable is available if required MPPT Solar Pump Controller: 1 PCS High-efficiency and full-automatic MPPT Solar Pump Controller Installation Accessiories: 1 PCS Water level sensor or float switch 1 PAIR MC4 PV Connector 1 ROPE PTFE Tape 1 ROPE Electric tape 1 PCS screwdriver 1 PCS Pipe Conector 1 PCS Installation Manual
