- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-CG22-POE
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

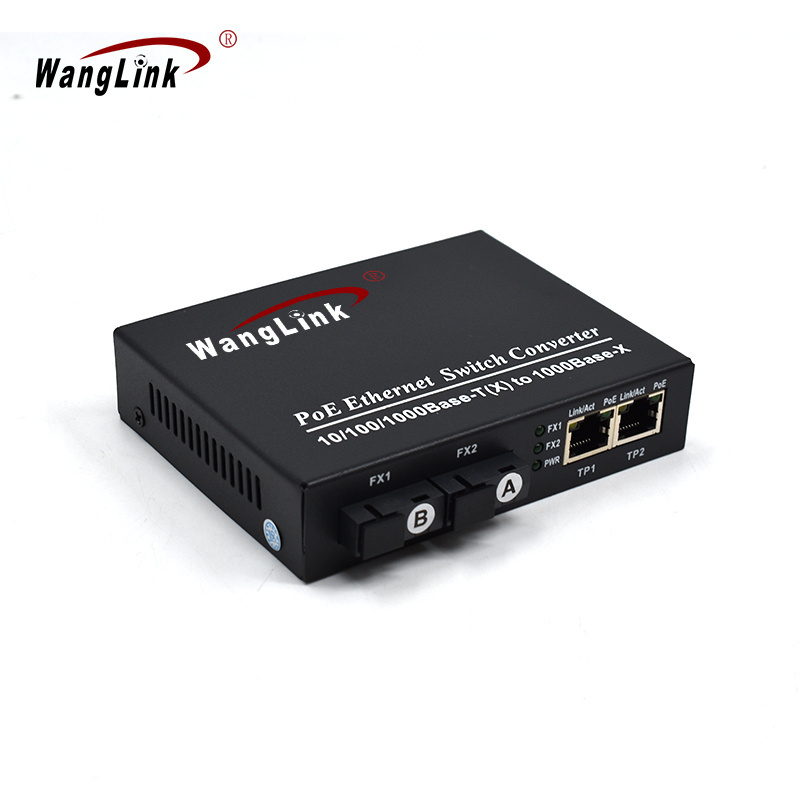

Full Gigabit 2 PoE +2 Fiber Switch
-
Fixed Ports:
-
2*10/100/1000Base-TX RJ45 port (Data/POE)
-
Fiber Ports:
-
2*1000M Optical Fiber Port(optional 1310/1550)
-
PoE Ports:
-
1-2 port supports poe
-
Port Specification:
-
100/1000BaseT(X)Auto
-
Poe standard:
-
IEEE802.3af /IEEE802.3at
-
Power Supply:
-
48V DC (44~57VDC)
-
Color:
-
Black
-
Applications:
-
Support PoE IP Cameras
-
Manufacturer:
-
shenzhen wanglink
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
8G
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-CG22-POE
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Full Gigabit 2 PoE +2 Fiber Switch
-
Fixed Ports:
-
2*10/100/1000Base-TX RJ45 port (Data/POE)
-
Fiber Ports:
-
2*1000M Optical Fiber Port(optional 1310/1550)
-
PoE Ports:
-
1-2 port supports poe
-
Port Specification:
-
100/1000BaseT(X)Auto
-
Poe standard:
-
IEEE802.3af /IEEE802.3at
-
Power Supply:
-
48V DC (44~57VDC)
-
Color:
-
Black
-
Applications:
-
Support PoE IP Cameras
-
Manufacturer:
-
shenzhen wanglink
Recommend Products
Wanglink Gigabit 2 Port PoE Switch with 2 SC SFP Slot Fiber Media Converter For IP Camera CCTV
Let you
simply connect IP camera / IP phone / Wireless AP at remote site where AC or DC power unavailable.
The switch also provide two Fiber Port can transmit data 0~120km from device to control center.
|
Standards
|
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-TX IEEE 802.3z 1000Base-X IEEE802.3x Flow control IEEE802.3af/at PoE |
|
|
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-TX IEEE 802.3z 1000Base-X IEEE802.3x Flow control IEEE802.3af/at PoE |
|
Fiber Port
|
Connector: SC/FC/SFP x 2
|
|
|
Data Rate: 1.25Gbps
|
|
|
Distance: 0～100km
|
|
Copper Port
|
Connector: 2x RJ45
|
|
|
Data Rate: 10/100/1000Mbps
|
|
|
Distance: ≤100m
|
|
|
PoE pairs:1/2+,3/6-
|
|
Performance
|
Processing Type: Store and Forward
|
|
|
Back Bandwidth: 8G
|
|
|
MAC Addresses: 8Kbit
|
|
|
Packet Buffer Memory: 1Mbit
|
|
|
Jumbo Frame Support: 10Kbytes
|
|
|
Time Delay: ≤10us
|
|
Power
|
Input Voltage: 48~56 VDC
|
|
|
PSE Power :15.4W/25.4W (IEEE802.3af/at)
|
|
Environment
|
Operating temperature : 0~65ºC
|
|
|
Storage Temperature: -40~85ºC
|
|
|
Relative Humidity: 5-95% (no condensation)
|
