Quick Details
-
Warranty:
-
1years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhongxin
-
Model Number:
-
YJP200
-
Rated line pull:
-
196KN/20000KG/45000LBS
-
Line speed(1st layer):
-
6m/min
-
Response pressure of brake:
-
2.5Mpa/25Bar
-
Oil pressure:
-
17Mpa/170Bar
-
Oil flow:
-
120L/min
-
Drum capacity:
-
45m
-
Net weight:
-
295kg
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
AUTO
-
Capacity:
-
20000KG
-
Warranty:
-
1years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhongxin
-
Model Number:
-
YJP200
-
Rated line pull:
-
196KN/20000KG/45000LBS
-
Line speed(1st layer):
-
6m/min
-
Response pressure of brake:
-
2.5Mpa/25Bar
-
Oil pressure:
-
17Mpa/170Bar
-
Oil flow:
-
120L/min
-
Drum capacity:
-
45m
-
Net weight:
-
295kg

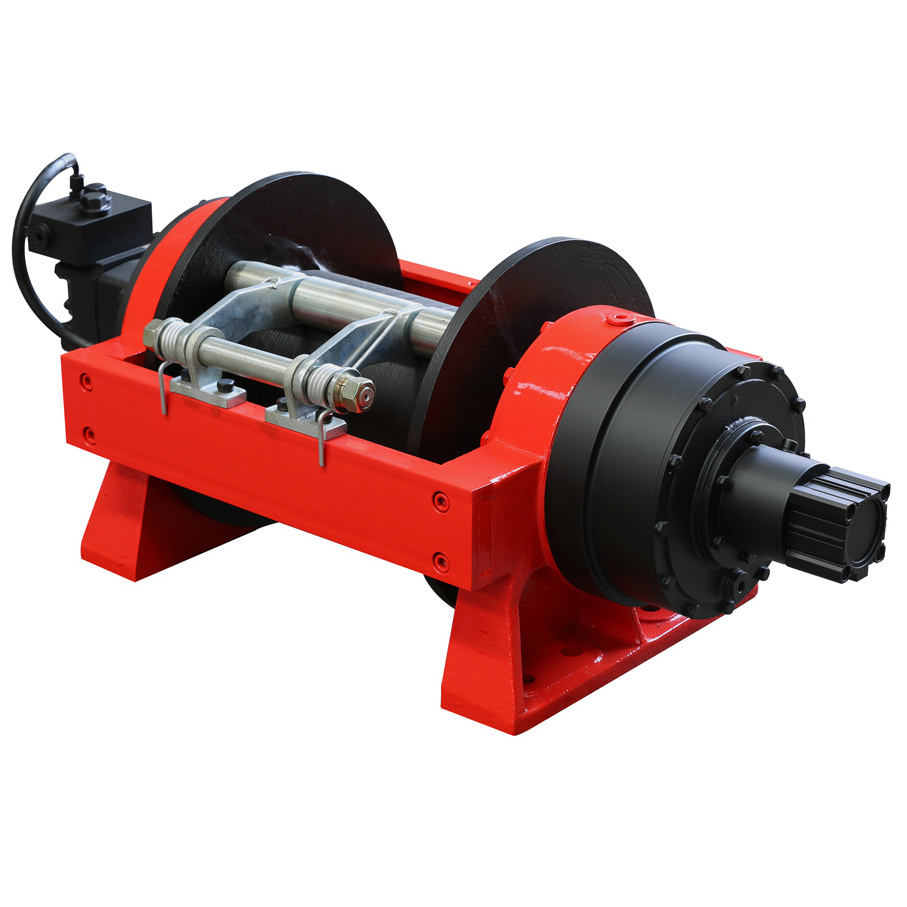

45000lb H ydraulic anchor winch pulling for truck winch
» Brief Introduction
The hydraulic winch is converted into mechanical energy by the hydraulic energy obtained by the hydraulic motor through the hydraulic system,and it is decelerated by the planetary reducer to increase the torsion,which produces a great torque on the drum,and achieves the purpose of dragging heavy objects by winding the steel wire rope on the drum.
» Main Application
Hydraulic winch is a vehicle tool used in automobiles and special vehicles for self-rescue and self-discharge in off-road driving under difficult road conditions.
It can also be used for lifting and pulling heavy objests in construction site,such as engineering installation,oil field drilling,road clearing etc.
It is characterized by compact structure,small size,light weight,large pulling force,simple installation,flexible operation,convenient maintenance,and the hydraulic system of the car itself.
» Product structural drawing
» Performance parameters sheet
| Rated line pull (1st layer) | KN/Kgs/Lbs | 196/20000/45000 |
| Line speed(1st layer) | m/min | 6 |
| Response pressure of brake | Mpa/Bar | 2.5/25 |
| Oil pressure | Mpa/Bar | 17/170 |
| Oil flow | L/min | 120 |
| Drum diameterxBottom diameterxLengh(internal) | mm | 400x210x340 |
| Drum capacity | m | 45 |
| Suggested high-intensity wire rope diameter | mm | ∅26 |
| Net weight | Kg | 295 |
»
Features of Hydraulic Winch
1. Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable.
2. Adopt multidisc-typed friction normally-closed arrester makes the brake torque larger, safer and more reliable.
3. The product is featured by its small size, compact construction and high transmission efficiency.
4. Adopt motor with long use life.
5. The installation bracket can be manufactured according to the customer's requirement.
6. According to the requirement of customers, manufacture the balance valve and shuffle valve.
