Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Amtrue
-
Model Number:
-
ATP1203-01KB
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
3A
-
OEM/ODM:
-
Available
-
Metal Box Color:
-
white for factroy setting , but can be OEM
-
Led Indicator:
-
Yes
-
Appplication:
-
Main for door acess control
-
Fuse:
-
no
-
Package:
-
Retail
-
Protection:
-
over-current/short curcuit/over voltage protection
-
Quality:
-
High
-
Product:
-
Access Control Power Supply
-
Service:
-
Good
Quick Details
-
Output Power:
-
1 - 50W
-
Input Voltage:
-
100-240VAC
-
Output Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Amtrue
-
Model Number:
-
ATP1203-01KB
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
3A
-
OEM/ODM:
-
Available
-
Metal Box Color:
-
white for factroy setting , but can be OEM
-
Led Indicator:
-
Yes
-
Appplication:
-
Main for door acess control
-
Fuse:
-
no
-
Package:
-
Retail
-
Protection:
-
over-current/short curcuit/over voltage protection
-
Quality:
-
High
-
Product:
-
Access Control Power Supply
-
Service:
-
Good

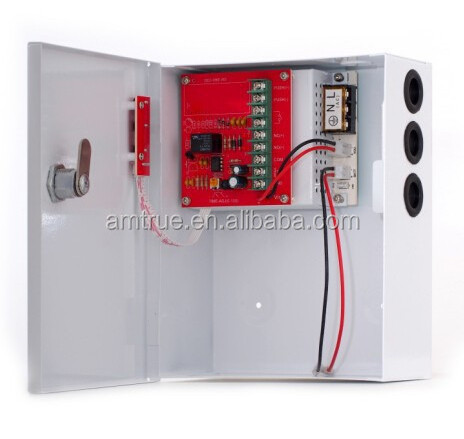

High Quality DC 12V 3A Door Access Control Switching Power Supply
Features:
Use of efficient, environmental protection switching power supply circuit frame
Optimization of the shape and structure to facilitate the construction systems
Small ripple & noise -- video output signal more stable, clearly images
Splitter output -- by-pass failure to protect other equipment to work
Power protection -- Output over-voltage protection, over-current protection, short circuit protection
Specification:
|
Model |
ATP1203-01KB |
|
Product |
Access Control Power Supply |
|
Input Voltage |
110-240V AC |
|
Output Voltage |
12 VDC |
|
Output Current |
3A |
|
Output Channel |
SINGLE |
|
Batetery Backup |
12V 7AH Acid Battery |
|
Product Dimension |
265*195*75mm |
|
Package |
10pcs in a carton |
|
Charging Voltage/Current |
13.8V/1A |
|
Conversion Efficiency |
≥85% |
|
Ripple Wave |
(mVp-p): <1% |
|
Working Temperature |
-20~60℃ |
|
Storage Temperature |
-35~85℃ |
|
Humidity |
0%~95%RH |
|
Overload Protection
|
100%~150% rated output power, Auto Recovery |
|
Overvoltage Protection
|
>115%~135% Rated Output Voltage |
|
Temperature Coefficiency
|
±0.003% (0~50℃) |
