Quick Details
-
Dimension(L*W*H):
-
1380*1280*2550
-
Weight:
-
820 kg
-
Product name:
-
dust collector
-
Usage:
-
Laser Cleaning Dust Fume
-
Keyword:
-
industrial dust collector
-
Color:
-
customizable
-
Power:
-
11kW
-
Model:
-
DJS1100
-
Function:
-
Industrial Dust Collector System
-
Motor:
-
Centrifugal fan
-
Filter clean type:
-
Automatic Pulse jet Filter Clean System
-
Filter:
-
HEAP FILTER
Quick Details
-
Minimum Particle Size:
-
0.1-0.3mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YYVAC
-
Dimension(L*W*H):
-
1380*1280*2550
-
Weight:
-
820 kg
-
Product name:
-
dust collector
-
Usage:
-
Laser Cleaning Dust Fume
-
Keyword:
-
industrial dust collector
-
Color:
-
customizable
-
Power:
-
11kW
-
Model:
-
DJS1100
-
Function:
-
Industrial Dust Collector System
-
Motor:
-
Centrifugal fan
-
Filter clean type:
-
Automatic Pulse jet Filter Clean System
-
Filter:
-
HEAP FILTER
Products Description

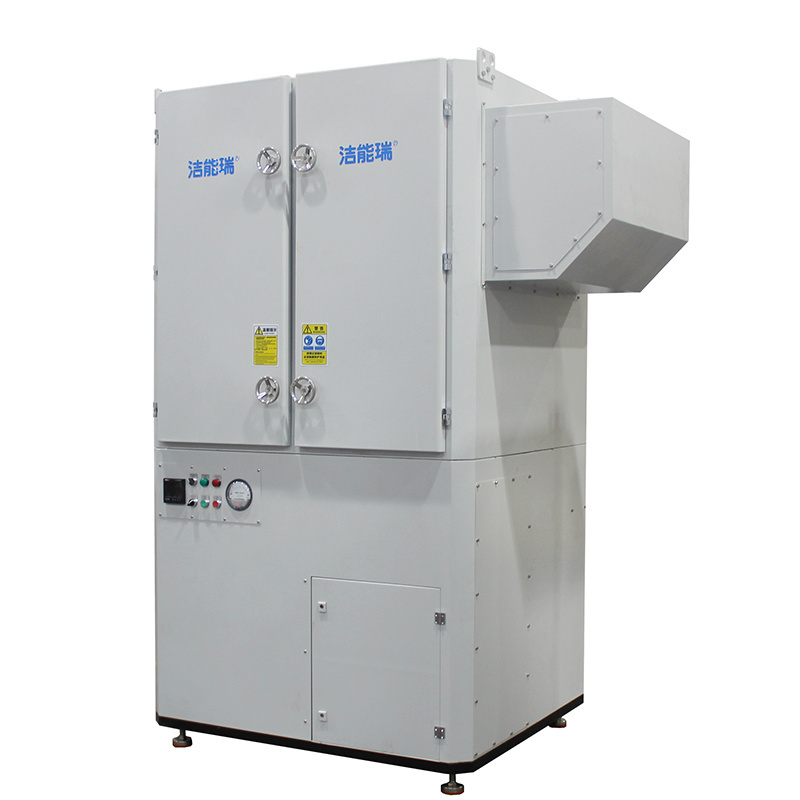

Product Introduction
Category:
Industrial Dust Collector
Model: DJS1100 | DJS1500
Brand: 洁能瑞/YYVAC
Installation: Indoor, Outdoor
S uitable for combustible dust: No
Function : Used as an online system for collecting high volume process-generated dust or impurities from the source point on a continuous basis to enhance the air quality.
Application: Dust, Fumes
Welding robot workstation dust control, large welding workshop dust purification, large laser cutting machine, plasma laser cutting machine dust removal, flame cutting dust removal etc.
Model: DJS1100 | DJS1500
Brand: 洁能瑞/YYVAC
Installation: Indoor, Outdoor
S uitable for combustible dust: No
Function : Used as an online system for collecting high volume process-generated dust or impurities from the source point on a continuous basis to enhance the air quality.
Application: Dust, Fumes
Welding robot workstation dust control, large welding workshop dust purification, large laser cutting machine, plasma laser cutting machine dust removal, flame cutting dust removal etc.
Product Paramenters
|
Description
|
Unit
|
DJS1100
|
DJS1500
|
|
|
Current type
|
Ph - V - Hz
|
3 - 380 - 50/60
|
|
|
|
Power
|
kW / HP
|
11 / 15
|
15 / 20
|
|
|
Airflow
|
m³/h (l/s) / CFM
|
6000-9000 (1667-2500) / 3531-5297
|
7500-11500 (2083-3194) / 4414-6769
|
|
|
Vacuum
|
kPa / inH2O
|
2.9-4.1 / 11.6-16.5
|
3.3-4.6 / 13.2-18.5
|
|
|
Sound pressure level
|
dB(A)
|
74
|
76
|
|
|
Container capacity
|
l / gal
|
50 / 13.2
|
|
|
|
Filter area
|
m2 / ft2
|
100 / 1076
|
120 / 1292
|
|
|
Filter efficiency
|
μm
|
0.1-0.3
|
|
|
|
Filter type
|
|
15 HEPA Filters
|
18 HEPA Filters
|
|
|
Filter cleaning system
|
|
Automatic Pulse Jet (Compressed air requirement: 4-6 bar)
|
|
|
|
Inlet diameter
|
mm / in
|
300 / 11.8
|
400 / 15.7
|
|
|
Cable length
|
m / ft
|
10 / 32.8
|
|
|
|
Dimensions (L × W × H)
|
mm / in
|
1380*1280*2550
|
1590*1350*2580
|
|
