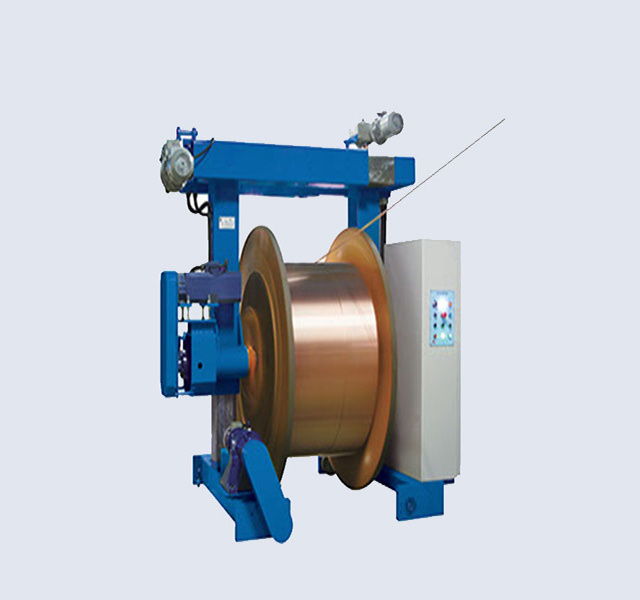

Gantry Type Take up and Pay off Stand Unit

Gantry Type Take up and Pay off Stand Unit

FOB Reference Price: Get Latest Price

≥1 Sets

US $70000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: LSF

Application:: Cable production

Motor:: A B B & Siemens

Bearing:: NSK

Quick Details

Use:: WINDING

Place of Origin:: Jiangsu, China

Brand Name:: RLB

Model Number:: LSF

Application:: Cable production

Motor:: A B B & Siemens

Bearing:: NSK

Product Description

Application:
For winding and reeling of various wires and cables.
Structure characteristics:
1. Gantry type, ground rail moving, two columns, upper and lower casing .
2. Collar, cross beam and column adopt hipped-plate structure with neat and beautiful appearance.
3. Take up gearbox adopts hard tooth surface gearbox with large transmission torque and low noise.
4. Take-up primary motor.
A. It adopts DC motor, DC driver is EUROTHERM products.
B. It adopts frequency control motor, Drivers are Siemens or Danfoss product.
5. Winding motor adopts frequency motor, driver is Siemens or Danfoss product, winding traces take-up speed automatically. Winding pitch and take-up tension can be set on touch screen (Siemens), PLC can be connected with various hosts.

Technical Parameters

Type & Size	Cable OD (mm)	Bobbin diameter (mm)	Bobbin width (mm)	Take up Speed (m/min)	Precision of wires displacing (%)	Load capacity Light/Heavy (T)
830/1250	≤3-30	≤830-1250	475-950	≤100	1-2	3
800/1800	≤50	≤800-1000	800-1180	≤80	1-2	4/8
1000/1200	≤70	≤1000-2000	750-1500	≤80	1-2	8/10
1250/2500	≤100	≤1250-2500	850-1900	≤85	1-2	12/15
1800/3150	≤120	≤1800-3150	1180-2300	≤80	1-2	15/20
1800/3500	≤130	≤1800-3150	1180-2300	≤50	1-2	18/20
2000/3500	≤180	≤2000-3500	1500-2300	≤40	1-2	30/40
2000/4200	≤180	≤2000-4200	1500-2300	≤35	1-2	40/50
2000/4500	≤200	≤2000-4500	1500-2300	≤30	1-2	40/50
2500/5000	≤200	≤2500-5000	1900-3000	≤30	1-2	40/80
