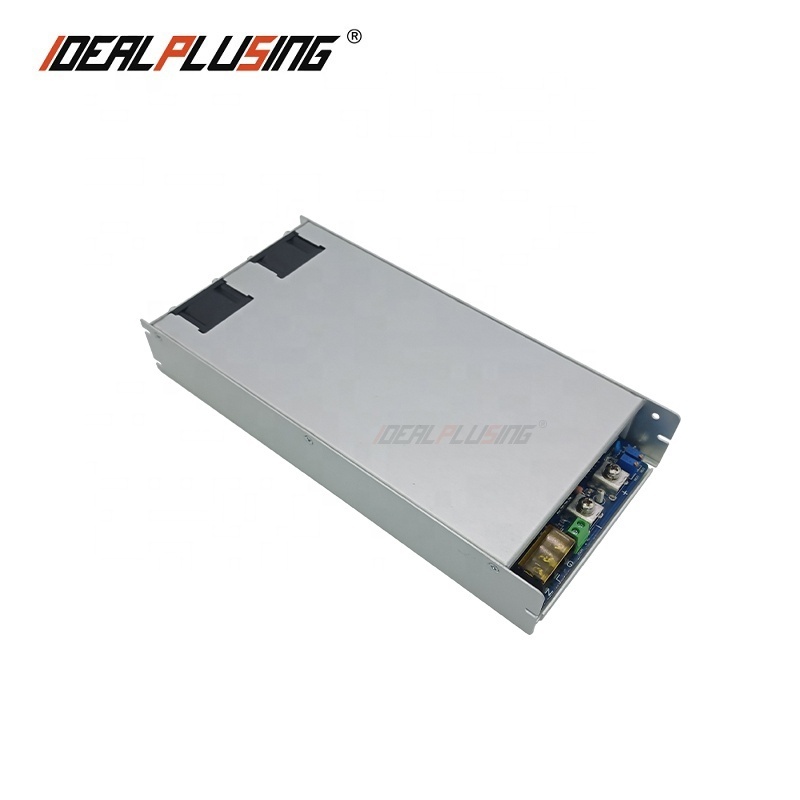

Adjustable Constant Current PFC Switch 750W 1000W 42A DC Switching 110/220V AC DC 24v 30a 720w DC Power Supply

MODEL

IPS-PFC1000-12

IPS-PFC1000-24

IPS-PFC1000-36

IPS-PFC1000-48

IPS-PFC1000-54

IPS-PFC1000-60

IPS-PFC1000-72

IPS-PFC1000-110

IPS-PFC1000-150

/

OUTPUT

PARAMETERS

DC OUTPUT VOLTAGE

12VDC

24VDC

36VDC

48VDC

54VDC

60VDC

72VDC

110VDC

150VDC

/

RATED OUTPUT CURRENT

75A

42A

28A

21A

18.5A

17A

13.8A

9A

6.6A

/

MAXIMUM OUTPUT CURRENT

87.5A

48A

32A

24A

20A

19A

16A

10.4A

7A

/

RATED OUTPUT POWER

900W

1000W

1000W

1000W

1000W

1000W

1000W

1000W

1000W

/

MAXIMUM OUTPUT POWER

1050W

1150W

1150W

1150W

1080W

1150W

1150W

1150W

1050W

/

CONVERSION EFFICIENCY

86%

89%

90.5%

92%

92%

92.5%

92.5%

93%

93%

/

RIPPLE (FULL LOAD)

180mv

200mv

230mv

250mv

280mv

280mv

300mv

330mv

350mv

/

LINEAR ADJUSTMENT RATE

1%

LOAD ADJUSTMENT RATE

±1.5%

VOLTAGE STABILIZATION ACCURACY

±3%

START UP, RISE TIME

2s 100ms

HOLDING TIME

10ms

OUTPUT WIRING MODE

M6 riveting terminal

INPUT

PARAMETER

INPUT VOLTAGE

AC 110v-240v (wide voltage adaptive, no conversion required)

AC INPUT FREQUENCY

50/60Hz

INPUT WIRING MODE

3pin hb-9500 terminal with protective cover

Please connect the ground wire when using

INPUT CURRENT

(MAXIMUM)

POWER FACTOR

(PF VALUE)

Full load 1000W output, using 220VAC input, input current 5A

Full load 1000W output, using 110VAC input, input current 10A

Ac110-240v input, when the power supply is 100% full load, the power factor pf value ≥

0.98 (see the PF value curve in the figure below)

SURGE CURRENT

Cold start, 40A at 230V, 20A at 110V

FUNCTION

PS-ON

PS-on terminal short circuit: no output voltage of power supply

PS-on terminal open circuit : The power supply has an output voltage

Refer to the picture below

explain: ps-on can control the output voltage of the power supply on and off. When the

output voltage is turned off, the power supply is in a very low power (less than 10W) standby

state. Only the auxiliary power supply is working inside, and the cooling fan will work

normally. The power supply of ac110-240v input terminal is not disconnected.

OUTPUT VOLTAGE REGULATION

The output voltage can be adjusted in a full range. The adjv potentiometer can be adjusted

manually or externally 0-5V or 0-10V to adjust the output voltage (need to be modified)

OUTPUT CURRENT REGULATION

The output current is adjustable in the whole process, and the ADJI potentiometer is

adjusted manually. When the load reaches the current setting value, the power supply keeps

constant current output

PROTECTION

FUNCTION

OUTPUT HIGH VOLTAGE

PROTECTION

When the output voltage reaches 125%, the output is turned off,

Automatic recovery after troubleshooting.

OUTPUT SHORT CIRCUIT

PROTECTION

When the output terminal is short circuited, the power supply has no voltage output, and

the power supply recovers the output voltage after the short circuit is removed

OVER LOAD PROTECTION

The overload protection mode is constant current limiting mode, the locked output current

value does not rise, and the output voltage decreases with the increase of load

OVERHEATING PROTECTION

When the temperature of the heat sink of PWM transistor reaches 85 ℃, the output voltage

will be turned off, and when the temperature drops to 75 ℃, it will automatically recover

SECURITY

AND EMC

STANDARD

EMC STANDARD

Does not conform to EMC standards

INSULATION IMPEDANCE

I/P-O/P,I/P-FG,0/P-FG:100M Ohms /500VDC /25℃/70%RH

LEAKAGE CURRENT

≤3.5MA/AC220V

WITHSTAND VOLTAGE

Input and output: 3000VAC   Input and ground: 1500vac

Between output end and housing: 500VAC

SEISMIC BEHAVIOR

10 ~ 500Hz, 2G 10 min / cycle, 60 min for each axis of XYZ

OTHER

HEAT DISSIPATION MODE

Fan heat dissipation (temperature control automatic speed regulating fan, double fan,

internal air blowing mode)

NOISE VALUE OF COOLING FAN

In the indoor environment of about 20-25 dB, when two fans rotate at full speed, about 37

DB is measured at 50cm away from the power supply

WORKING TEMPERATURE

-30-35℃, the power should be reduced when over temperature. Refer to the temperature

load reduction curve below

WEIGHT

Light and thin type 1.4kg (excluding package and accessories)

SIZE

Length 268mm * width 130mm * height 40mm

INSTALLATION HOLE POSITION

The long spacing is 260mm, and the width spacing is 120mm. The U-shaped groove and

screw hole at the four corners of the shell are used to install and fix

Tips

1.Pay attention to ventilation and heat dissipation when using. Do not install the power supply in a fully sealed box. There should be no object blocking the position of the heat dissipation outlet and fan air inlet of the power supply

2.There is high-voltage electricity in the casing. Non professional personnel are not allowed to dismantle the machine at will and can not operate with electricity to prevent electric shock
