Good Price Small Hydraulic Press Brake Machine Factory With CNC Mini Press Brake Machine For Small Box And Pan Brake

Good Price Small Hydraulic Press Brake Machine Factory With CNC Mini Press Brake Machine For Small Box And Pan Brake

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

≥5 Sets

US $9900

≥10 Sets

US $9800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Throat Depth (mm):: 400 mm

Width of Working Table (mm):: 0 mm

Place of Origin:: Jiangsu, China

Brand Name:: HARSLE MACHINE

Year:: 2022

Weight (KG):: 5000

Motor Power (kw):: 7.5 kw

Application:: Steel Plate Sheet Bending

Control system::: TP10s

After-sales Service Provided:: Video technical support, Online support

Color:: customizable

Quick Details

Machine Type:: hydraulic

Length of Working Table (mm):: 3200

Slider Stroke (mm):: 200 mm

Throat Depth (mm):: 400 mm

Width of Working Table (mm):: 0 mm

Place of Origin:: Jiangsu, China

Brand Name:: HARSLE MACHINE

Year:: 2022

Weight (KG):: 5000

Motor Power (kw):: 7.5 kw

Application:: Steel Plate Sheet Bending

Control system::: TP10s

After-sales Service Provided:: Video technical support, Online support

Color:: customizable

Products Description

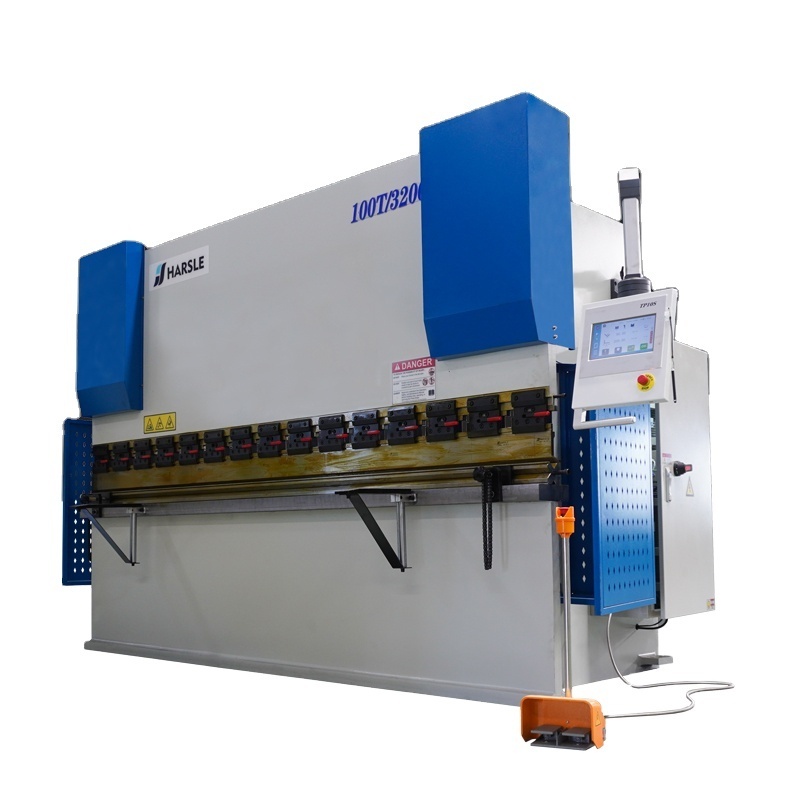

HARSLE ECONOM NC Press Brake with TP10S

HARSLE ECONOM press brake is the economic level of the bending machine, it features simple program, low-maintenance and easy operation. Customer can choose the backgauge from X and Manual R axis. And the controller can be from CT8, HS-15T, E21, E300P, E22. HARSLE Bending machine helps you to ease the bending process and improve the bending efficiency largely.

Specifications

Axes	X1(X)	X2	R1(R)	R2	Z1	Z2
Stroke(mm)	750	750	150	150	/	/
Speed(mm/s)	500	500	180	180	2000	2000
Accuracy(mm)	0.02	0.02	0.05	0.05	0.05	0.05
Motor	servo motor	servo motor	servo motor	servo motor	servo motor	servo motor
Mechanical System	ball screw	ball screw	rack	rack	rack	rack

Product Details

Torsion-Bar with Rack Structure

1. Less friction, longer lifespan 2. Less resistance, Fast moving speed 3. Multi point control, Easy gap adjustment 4. Less maintenance

Siemens Main Motor

1. The high efficiency level reduces energy consumption and saves costs for the user. 2. The high protection level ensures safe and reliable use for the customer.

Manual R-Axis

Manual R-axis controls the up and down movement of the back-gauge. The material is robust and smooth to use, and high

Standard Punch and Multi-V Die

1. HARSLE has a complete range of tooling of good quality. You can choose from HARSLE tooling catalog.

TP10S Controller

1. Bending angle programming 2. Backgauge and Ram Servo control 3. Touch screen control 4. Tooling library available

Foot Switch with Emergency Button

1. The foot switch is flexible and durable. Emergency button makes operation safe and secure.

CNC Crowning System(Optional)

Bending machine is an important equipment in sheet metal processing, its work accuracy directly affects the bending accuracy of the workpiece. Bending machine in the workpiece bending process, due to the maximum force on both ends of the slider, the reaction force of the plate bending leads to concave deformation on the lower sur-face of the slider, the middle part of the slider deformation variable is the largest, The stress can cause the ram and worktable some deformation during the process of bending; the crowning can make relevant compensation to the ram deformation, which improves the precision of press brake by a wide margin. It is specially applied to make some high precision products such as stainless steel.

Controller Comparison

HARSLE Bending division offers different controllers for NC press brake, you can find more details about each controller from the following chart. HARSLE is always focusing on the high quality machine and the cordial service for you.

Our Company

HARSLE is a professional enterprise which manufactures various kinds of NC and CNC press brakes, shearing machines, hydraulic presses, power presses, ironworkers and other metal-working machines. We follow innovations and grow together with our customer and we follow the developments in the industry and technology and support the development of creativity skills based on the principles of continuous learning, innovation and improvement. HARSLE cares about the active and competent participation of employees in management and decision processes, ensuring clarity in decisions and transparency in practice with this approach.

That is the reason why our product quality moves to a higher level constantly. HARSLE has the philosophy of production with the best quality and latest technology. It crowns this with the ISO 9001 quality management system and following European safety standards. HARSLE is a leading Chinese brand in sheet metal working machinery industry.

As a total supplier for sheet metal manufac turing with almost 15 years of experience, HARSLE understands and recognizes the challenges, requirements and expectations of the industry. We strive to satisfy the higher demands of our customers by continuously improving our products and processes while researching and implementing the latest technologies. From the innovations developed at our Research & Development Center to the technical support given by our worldwide distribu tors, we all have one common mission: to be your preferred partner.

HARSLE machines are working all around the world.

Our Certificate

FAQ

What will be the payment method for the transaction?
We can accept T/T, Irrevocable Letter of credit(LC), Cash, Bank guarantee, Western Union and etc.

How is about the quality of HARSLE machines？
We hare world-class R&D team to support the quality of our machines, our products have got CE, ISO and SGS certification to prove
the advantages of HARSLE machines.

How can I visit HARSLE factory in China?
-Take high speed train from other city to Nanjing south railway station, HARSLE factory is around 40KM far from this station.
-Take plane to Nanjing Lukou international airport, HARSLE factory is around 20KM far from this airport.

How can I get after-sales service from HARSLE?
You can contact HARSLE via phone or Email, HARSLE will certainly give you reply in 24 hours. You can show your questions or
problems in the form of video or picture that would be better for both of us to solve your problems promptly. Customers can also
contact our local agent directly, they will give you reply ASAP.

What is the warranty about HARSLE machine?
We will provide 3 years warranty for HARSLE machines, during the warranty period, customers can get thorough and timely service
and HARSLE will send the spare parts for replacement of any broken parts on the machine for free.
