Quick Details
-
Warranty:
-
25 YEARS
-
Brand Name:
-
Huge Solar
-
Model Number:
-
M182H654-375-385W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Product name:
-

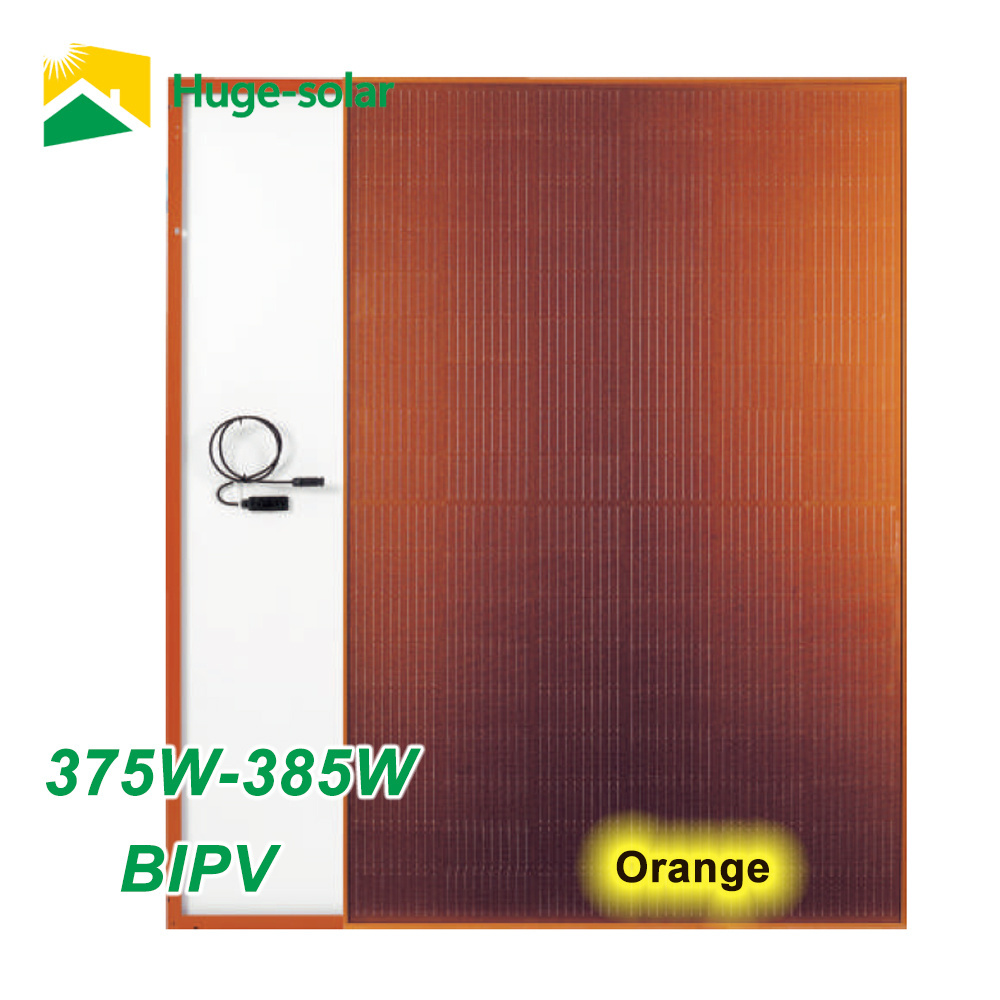

Huge Solar 375W 380W 385W High Efficiency Mono BIPV Solar Panel
-
Number of Cells:
-
54 pcs
-
Weight:
-
20.8kg
-
Glass:
-
Orange colour, tempered, thickness, 3.2 mm
-
Blacksheet:
-
White
-
Frame:
-
Varnished aluminium frame with mounting and drainage holes
-
Junction Box:
-
IP 68 approved, 3 bypass diodes
-
Cable:
-
Length 1100 mm or customized
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
4mm² compatible connectors
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, BIPV
-
Panel Efficiency:
-
18.95-19.46%
-
Warranty:
-
25 YEARS
-
Brand Name:
-
Huge Solar
-
Model Number:
-
M182H654-375-385W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Product name:
-
Huge Solar 375W 380W 385W High Efficiency Mono BIPV Solar Panel
-
Number of Cells:
-
54 pcs
-
Weight:
-
20.8kg
-
Glass:
-
Orange colour, tempered, thickness, 3.2 mm
-
Blacksheet:
-
White
-
Frame:
-
Varnished aluminium frame with mounting and drainage holes
-
Junction Box:
-
IP 68 approved, 3 bypass diodes
-
Cable:
-
Length 1100 mm or customized
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
4mm² compatible connectors
Product Paramenters
Model:
HS-M182H654-375-385W
|
Electrical Specification (STC*)
|
|
|
|
|
||||
|
Maximum Power
|
Pmax (W)
|
375
|
380
|
385
|
||||
|
Maximum Power Voltage
|
Vmp (V)
|
37.86
|
38.01
|
38.16
|
||||
|
Maximum Power Current
|
Imp (A)
|
12.49
|
12.60
|
12.72
|
||||
|
Open Circuit Voltage
|
Voc (V)
|
31.22
|
31.32
|
31.42
|
||||
|
Short Circuit Current
|
Isc (A）
|
12.03
|
12.15
|
12.27
|
||||
|
Module Efficiency
|
(%)
|
19.20
|
19.46
|
19.71
|
||||
|
Power Output Tolerance
|
(W)
|
0~+5
|
|
|
||||
|
*Irradiance 1000W/m2, Module Temperature 25°C, Air Mass 1.5.
|
|
|
|
|
||||
|
Electrical Specification (NOCT*)
|
|
|
|
|
||||
|
Maximum Power
|
Pmax (W)
|
285
|
289
|
293
|
||||
|
Maximum Power Voltage
|
Vmp (V)
|
35.57
|
35.70
|
35.83
|
||||
|
Maximum Power Current
|
Imp (A)
|
9.80
|
9.88
|
9.96
|
||||
|
Open Circuit Voltage
|
Voc (V)
|
29.19
|
29.28
|
29.36
|
||||
|
Short Circuit Current
|
Isc (A)
|
9.77
|
9.87
|
9.98
|
||||
|
*Irradiance 800W/m2, Ambient Temperature 20°C, Wind Speed 1m/s.
|
|
|
|
|
||||
|
Temperature Ratings
|
|
|
|
Temperature Coefficientof Pmax
|
-0.350% /ºC
|
|
|
Nominal Operating Cell Temperature(NOCT)
|
45ºC
|
|
|
Temperature Coefficient of Isc
|
＋0.05%/ºC
|
|
|
Temperature Coefficient of Voc
|
-0.28%/ºC
|
|
|
Maximum Ratings
|
|
|
|
Operational Temperature
|
-40~+85"C
|
|
|
Maximum System Voltage
|
1000V DC -(H)
|
|
|
Max Series Fuse Rating
|
25A
|
|
Warranty
12 years product warranty,
25 years power linear warranty.
Products Description
GLASS
*Antireflective glass
* Self-cleaning function
*Module efficiency is increased by 2%
*Service life is as long as 25 years(30 years optional)
*Translucency of normal luminance is increased by 2%
SOLAR CELL
*uniform color
*High pid resistant
*low breakage rate
*high shunt-resistance
*high model efficiency up to 20%
FRAME
*conventional frame
*Seal-lip design glue injection
*Silver or black frames are optional
*Serrated-clip design tensile strength
* Boost bearing capability and prolong service life
JUNCTION BOX
*Heat dissipation
*Long service life
*>IP67 PROTECTION LEVEL
*Innovative full glue filled
*Waterproof junction box
