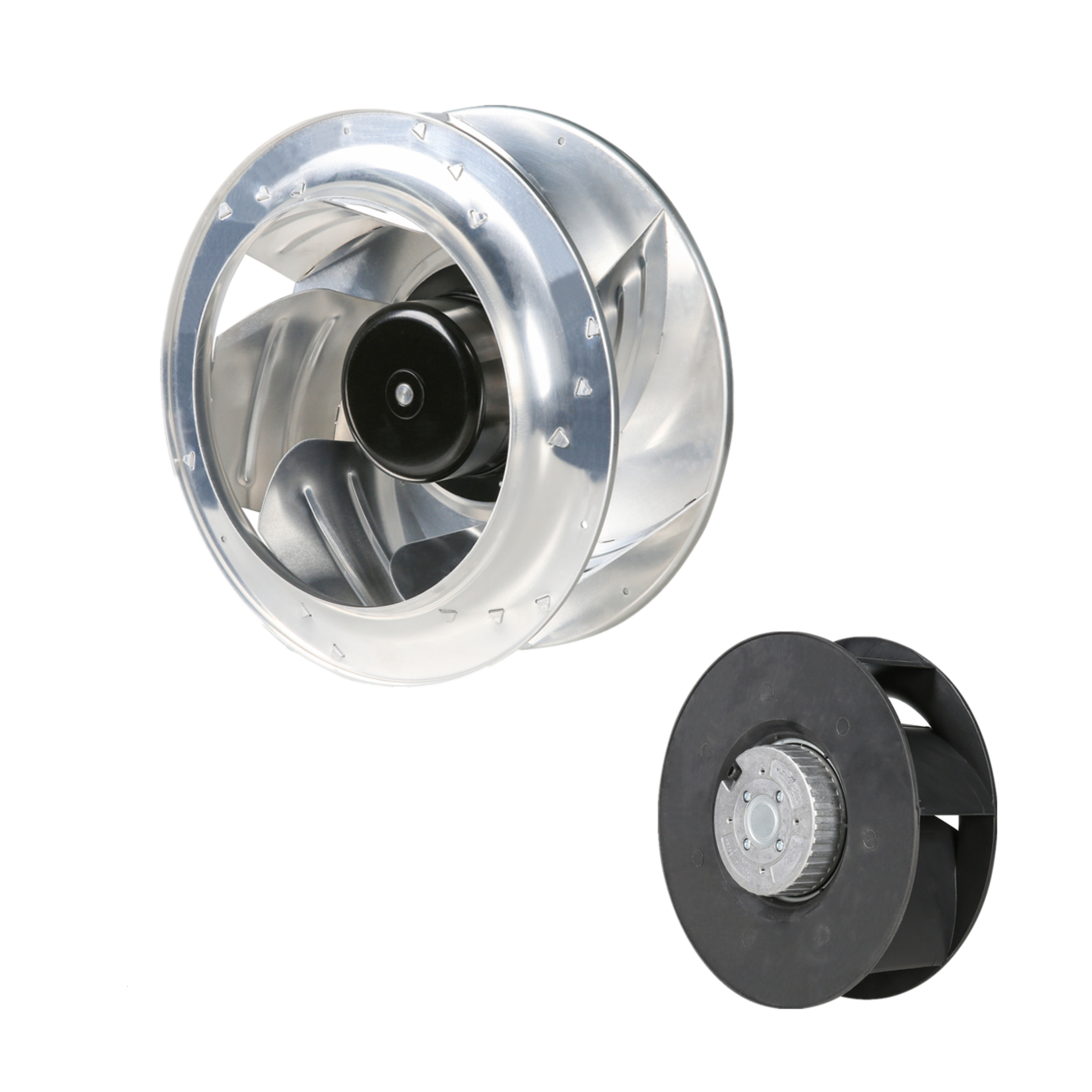

High Quality Ac Dc 115/230V Circular Inline Centrifuge Air Blower The Backward Tilting Centrifugal Fan

High Quality Ac Dc 115/230V Circular Inline Centrifuge Air Blower The Backward Tilting Centrifugal Fan

FOB Reference Price: Get Latest Price

≥1 Pieces

US $80

≥50 Pieces

US $40

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: GP MOTOR

Model Number:: RB1D190045/RB3E190045

Voltage:: 115/230V

Motor:: Brushless External Rotor Motor

Rotor:: Black Paint

Bearing:: NMB maintenance-free ball bearing

Impeller:: PA66 Propylene with Fibreglass reinforce

Type of protection:: IP44

Insulation Class:: Class "B" or "F"

Speed Control:: 0-10v or PWM signal

Life time:: 50000 hours (L10) at 40°C room

Quick Details

Applicable Industries:: Hotels, Machinery Repair Shops, Farms, Restaurant, Home Use, Retail, Construction works , Other, Advertising Company

Electric Current Type:: AC/DC/EC

After-sales Service Provided:: Online support

Place of Origin:: Zhejiang, China

Brand Name:: GP MOTOR

Model Number:: RB1D190045/RB3E190045

Voltage:: 115/230V

Motor:: Brushless External Rotor Motor

Rotor:: Black Paint

Bearing:: NMB maintenance-free ball bearing

Impeller:: PA66 Propylene with Fibreglass reinforce

Type of protection:: IP44

Insulation Class:: Class "B" or "F"

Speed Control:: 0-10v or PWM signal

Life time:: 50000 hours (L10) at 40°C room

High Quality Ac Dc 115/230V Circular Inline Centrifuge Air Blower The Backward Tilting Centrifugal Fan

Product Overviews

Centrifugal Blower Sizes	133mm~400mm (or Customized)
Centrifugal Fan Sizes	133mm~630mm (or Customized)
Gas Blower Sizes	85mm~150mm (or Customized)
Voltage	AC Input: 210V,220V,230V,380V,400V DC Input: 12V,24V,48V EC input: 210V,220V,230V,380V,400V
Power	Up to 2300W (or Customized)
Air Flow	Up to 7000m3/h (or Customized)
Speed control	Speed controller (AC) or PWM/0-10V Input (DC EC)

Specification
Item Code: RB3E355/096
Rated Voltage	Frequency (Hz)	Rated Current(A)	Input Power(W)	Speed (RPM)	Air Flow (CFM)	Air Flow (m3/h)	Static Pressure (Pa)	Noise dB(A)	Net Weight (Kg)
230V	50/60	≤1.65	386	2050	1912	3250	830	76	5.7
Item Code: RB3E355/120
230V	50/60	≤2.03	466	1920	2188	3720	740	73	5.8
Item Code: RB1D355096
48V	/	≤3.14	165	1580	1529	2600	480	69	4.6
Item Code: RB1D355120
48V	/	≤3.66	174	1440	1694	2880	410	66	4.8

Outline Drawing

Characteristic Curves	Wire Diagran
	Cable Color	Function
	Brown	L
	Blue	N
	Yellow / Green	PE
	Red	+10V output
	Yellow	0-10VDC / PWM
	Blue	GND
	White	Tach output

Customized Solutions

Customized Motor and Fan Solutions

All of the designs in the GP Motors portfolio of OEM electric motors, custom fans and blowers, custom controllers, custom electromechanical motor assemblies and components are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the motors or fans in our portfolio, enables OEMs to meet their custom motor or fan requirements while allowing for faster development times.
