mil standard nitinol rod bar for sale

FOB Reference Price: Get Latest Price

≥1 Kilograms

US $195

≥10 Kilograms

US $185

≥50 Kilograms

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shaanxi, China

Brand Name:: Baoji hanz

Model Number:: NITi-01, NITI-02, NiTI-SS

Grade:: Titanium Nickel Alloy, nitinol

weight:: As Dimension

Density:: 6.5g/cm3

Material:: Nitinol Ti-Ni Alloy

Standard:: ASTM F2063

Surface:: black, polished, oxidized

Keywords:: Nitinol Shape Memory, nitinol wire, nickel titanium alloy wire

Supply Status:: Full annealed

The Max recovery stress:: 600 MPa

Transformation temperature:: -20-110 degree celsius

Name:: mil standard nitinol rod bar for sale

Quick Details

Application:: Industrial

Length:: 2000mm max

Technique:: Forged

Place of Origin:: Shaanxi, China

Brand Name:: Baoji hanz

Model Number:: NITi-01, NITI-02, NiTI-SS

Grade:: Titanium Nickel Alloy, nitinol

weight:: As Dimension

Density:: 6.5g/cm3

Material:: Nitinol Ti-Ni Alloy

Standard:: ASTM F2063

Surface:: black, polished, oxidized

Keywords:: Nitinol Shape Memory, nitinol wire, nickel titanium alloy wire

Supply Status:: Full annealed

The Max recovery stress:: 600 MPa

Transformation temperature:: -20-110 degree celsius

Name:: mil standard nitinol rod bar for sale

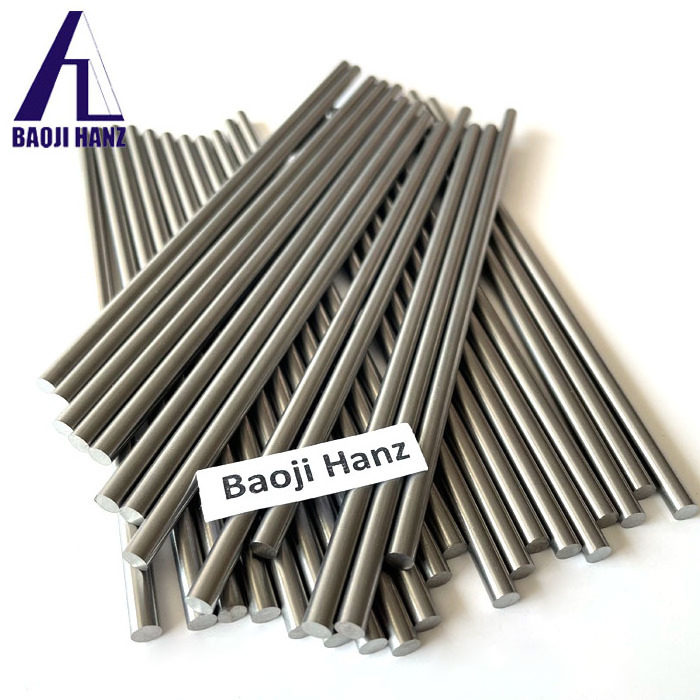

Product Show

Products Description

Item name	superelastic shape memory alloy nitinol round bar price
Grade	AAA grade
Content	Ti (Min)45%, Ni:55.4%--56.2%
Density	6.5g/cm3
Material	Nitinol Ti-Ni Alloy
Standard	ASTM F2063-2012
Surface	black, polished, oxidized
Supply Status	Full annealed
The Max recovery stress	600 MPa
Transformation temperature	-20-110 degree celsius
Application	industry, medical, research, fishing, eye glass frame
Package	nitinol wre in coil, nitinol wire on spool, nitinol straight wire

Technical information ^{superelastic shape memory alloy nitinol round bar price}

_Name	_Grade	Transformation Temperature AF	_Form	_Standard
Shape Memory Nitinol Alloy	Ti-Ni-01	20 °C~ 40 °C	Wire	Customer specified or _{Industry standard}
Shape Memory Nitinol Alloy		Ti-Ni-02			45 °C~ 90 °C
Superelastic Nitinol Alloy	TiNi-SS	-5 °C~ 5 °C
Superelastic Nitinol Alloy		TN3			-5°C~ -15°C
Low Temperature Superelastic Nitinol Alloy	_TNC	_{-20°C~ -30°C}
Medical Nitinol Alloy	TiNi-SS	33 ± 3 °C	Wire	ASTM F2063

Application & Feature

^{superelastic shape memory alloy nitinol round bar price}

Nitinol alloy is a shape memory alloy.

It will be transformed from customized shape into original shape when at some special temperature.

The stretch rate Nitinol alloy can be up to 20% and more.

It is an excellent function material, because its good corrosion resistance is the best medical stainless steel currently, Nitinol alloy can meet most kinds of request on engineer and medical fields.

Features:

1.Super elastic

2.Shape memory

3.Good corrosion resistance

4.Wear-resistance

5.High damping property

6.Nonmagnetic
7.Biocompatible
8.Tensile Strength: 850MPa
9.Yield strength:195-690MPa
10.Elongation:25-50%

^{super elastic nitinol shape memory wire}

Application:

1.Aerospace field

2.Telegram communication

3.Medical treatment
