Quick Details
-
Weight (KG):
-
1400
-
Brand Name:
-
Ruixin
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
50 - 120 mm
-
Model Number:
-
700 model
-
Year:
-
2024
-
Voltage:
-
380V /220V /415V
-
Dimension(L*W*H):
-
4200mm x 2800mm x 3900mm
-
Name:
-
Film Blowing Extruder Machine
-
Material:
-
HDPE LDPE LLDPE PE
-
Key words:
-
Film Blowing Machine
-
Usage:
-
Package film /Plastic bag
-
After-sales Service Provided:
-
24 Hours online service
-
Screw material:
-
38 CrMoAlA Bimetal /SCM645
-
Roller Width:
-
700mm
-
Die head:
-
60/80/100/120
-
Power consumption:
-
15-18Kw/H
-
Color:
-
Blue /White /Orange
Quick Details
-
Output (kg/h):
-
30 - 40
-
Number of Layers:
-
Single-layer
-
Screw diameter (mm):
-
50
-
Weight (KG):
-
1400
-
Brand Name:
-
Ruixin
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
50 - 120 mm
-
Model Number:
-
700 model
-
Year:
-
2024
-
Voltage:
-
380V /220V /415V
-
Dimension(L*W*H):
-
4200mm x 2800mm x 3900mm
-
Name:
-
Film Blowing Extruder Machine
-
Material:
-
HDPE LDPE LLDPE PE
-
Key words:
-
Film Blowing Machine
-
Usage:
-
Package film /Plastic bag
-
After-sales Service Provided:
-
24 Hours online service
-
Screw material:
-
38 CrMoAlA Bimetal /SCM645
-
Roller Width:
-
700mm
-
Die head:
-
60/80/100/120
-
Power consumption:
-
15-18Kw/H
-
Color:
-
Blue /White /Orange

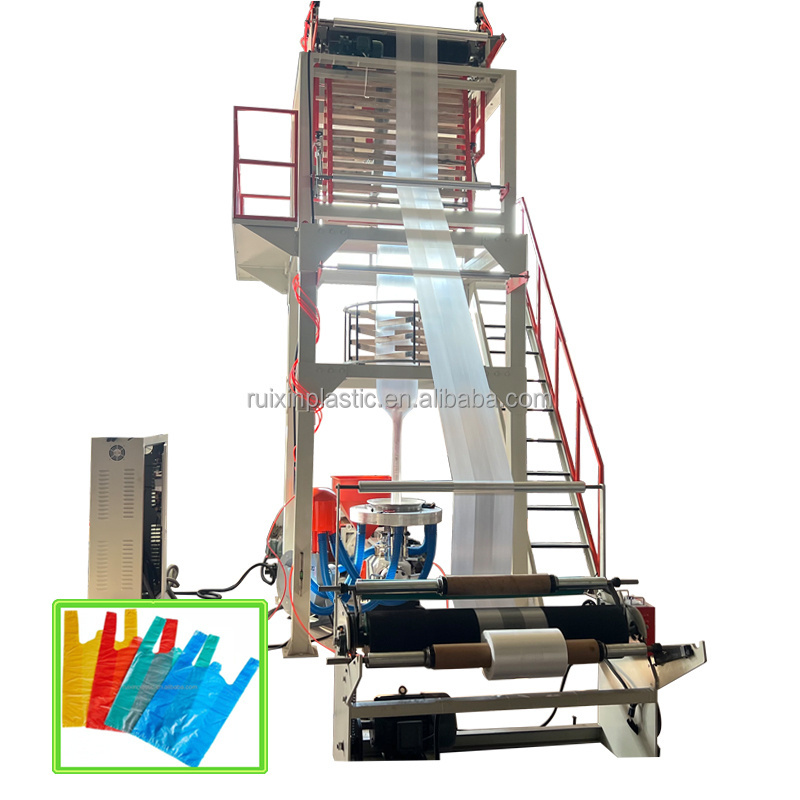

Full Automatic High Speed Plastic Bag HDPE Film Blowing Extruder Machine With High output
It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopt thick iron plate with more stable and good quality , The die head adopt 40cr steel with plating chrome ,with advantage -abrasive resistance ,high hardness and pefect plasticizing capacity !
|
Model |
RSJ50-700 |
RSJ55-900 |
RSJ60-1100 |
RSJ65-1400 |
|
Screw Diameter (mm) |
Φ50 |
Φ55 |
Φ60 |
Φ65 |
|
Screw Length (L/D) |
28:1 |
28:1 |
28:1 |
28:1 |
|
Film Width(mm) |
100-600 |
200-800 |
300-1000 |
400-1200 |
|
Film Thickness(mm) |
0.008-0.10 |
0.008-0.10 |
0.008-0.10 |
0.008-0.10 |
|
Max.Extrusion Output(kg/h) |
30 |
50 |
70 |
80 |
|
Cylinder Cooling (Kw) |
0.25 |
0.25 |
0.25*2 |
0.25*3 |
|
Driving Motor(kw) |
11 |
15 |
18.5 |
22 |
|
Temperature Control |
3 |
4 |
5 |
5 |
|
Average Power-consume(kw) |
14 |
22 |
26 |
37 |
|
Die Size(mm) |
Φ50/120 |
Φ70/150 |
Φ80/180 |
Φ100/250 |
|
Winding Speed(m/min) |
10-80 |
10-80 |
10-80 |
10-80 |
|
Take-up Motor(kw) |
0.75 |
1.1 |
1.5 |
2.2 |
|
Weight of machine(kg) |
1800 |
2200 |
2800 |
3400 |
|
Cover Dimension(m) |
5.0*2.1*3.8 |
5.0*2.3*4.2 |
5.5*3.3*4.8 |
5.8*3.6*5.4 |
Film Extrusion Unit
Film Blowing Machine
Film Coming out from Die Head /Mould
The Traction And Winder Unit of Extrusion
Bag Samples done by Film Blowing Machine
Screw Plating High Quality Bimetallic Plating 80micro Chrome (High hardness and Good Plastify )
Siemens Motor Schneider Electric component
