Quick Details
-
Nominal Capacity (Ah):
-
48V 100Ah
-
Battery quantity:
-
16S1P-3.2V 100Ah Cells
-
BMS Inside:
-
48V 16S 150A BMS
-
Rated Power:
-
5000W
-
Application 2:
-
patrol wagon; black maria; paddy wagon
-
Application 3:
-
Cruiser car,electric security patrol vehicles
-
Weight:
-
38KGS
-
Battery Case:
-
Customized Metal Box
-
Battery Name:
-
48v e rickshaw battery
-
Application:
-
electric patrol vehicles
Quick Details
-
Nominal Voltage:
-
48V
-
Nominal Capacity:
-
100Ah
-
Place of Origin:
-
China
-
Nominal Capacity (Ah):
-
48V 100Ah
-
Battery quantity:
-
16S1P-3.2V 100Ah Cells
-
BMS Inside:
-
48V 16S 150A BMS
-
Rated Power:
-
5000W
-
Application 2:
-
patrol wagon; black maria; paddy wagon
-
Application 3:
-
Cruiser car,electric security patrol vehicles
-
Weight:
-
38KGS
-
Battery Case:
-
Customized Metal Box
-
Battery Name:
-
48v e rickshaw battery
-
Application:
-
electric patrol vehicles

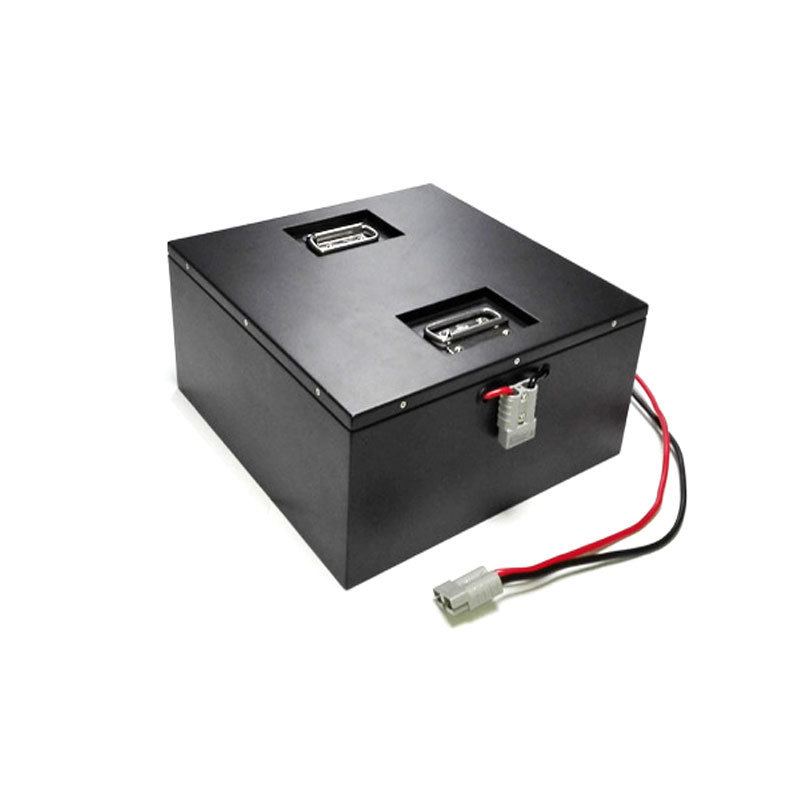

Customized electric patrol vehicles 48v 100ah 200ah 300ah lithium ion battery for 3000w 4000w 5000w motors
Advantage of lifepo4 electric security patrol vehicles battery
long cycle life
customized size
lightweight
CANBUS communication protocol is available
We can design any 12V 24V 36V 48V 60V 72V 96V 144V 196V nmc/lifepo4 battery with the same SLA case size to replace old SLA battery! provide the best price with high quality products, can accept small orders.
Maintenance-free
No memory effect
Low self discharge and longer service lifespan
High discharge rate
Wide operation temperature range
RS485/CAN BMS / Bluetooth BMS /Standard Commen BMS are welcome .
protection from voltage, current detection, including over-current, overvoltage, under-voltage and short circuit protection, Monitor the drama
Application as below
Cruiser car ,
electric security patrol vehicles,
electric patrol vehicles,
electric security patrol vehicles,
electric security patrol vehicles,
paw patrol electric vehicles,
trikke patrol electric vehicles,
3 wheel electric patrol vehicle
Battery can be customized as your requirement
more questions please contact with us directly
| Battery type | 48V 100Ah |
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Cell size |
201x131x37.2mm |
| Battery inside | 3.2V 100Ah LiFePO4 battery |
| Cell combine | 16S1P-16PCS cells |
| Battery weight |
38KGS |
| Battery size | Accept Customized(380x240x180mm) |
| Battery case | Customized IP65 or IP67 or IP68 metal connectors / case |
| BMS inside |
48V 16S 100A BMS, |
| Rated power |
5000W |
| Application | 5000W 4000W 3000W 2500W 2000W electric security patrol vehicles |
| Application | paw patrol electric vehicles |
| Charger | 1PC 48V 10A or 20A charger |
| CANBUS communication protocol | 1PC Master BMS |
| Warranty | 1 year |
| Voltage | Dimension | range | BMS | Cell |
| 48V 100Ah | 473 x 440 x 221mm | 10W-5000W | 100A | 100Ah |
| 48V 200Ah | 340x450 x650mm | 10W-5000W | 100A | 200Ah |
|
48V 300Ah |
770 x 480 x 360mm | 10W-5000W | 100A | 300Ah |
| 48V 400Ah | 998 x 778 x 379mm | 10W-5000W | 100A | 400Ah |
| 48V 600Ah | 670 x 400 x 900mm | 10W-12KW | 250A | 300Ah |
| 48V 800Ah | 760 x350x900mm | 10W-12KW | 250A | 400Ah |
| 80V 400Ah |
1066 x 990 x 537mm |
10W-16000W | 200A | 400Ah |
| 83.2V 700Ah | 1180 x 600 x 674mm | 10W-16000W | 200A | 350Ah |
| Warranty : 2-5 years warranty | ||||
|
BMS: With functions of protection from voltage, current detection, including over-current, overvoltage, under-voltage and short circuit protection. RS485/CAN BMS :Monitor the drama |
||||
|
Customized as your requirement Include capacity ,power,size,shape,voltage . OEM are welcome |
||||
|
Charging/ Discharge
Temperature
Range: 0~45°C / -20~65°C
Cycle Life: More than 3000 times Passed ISO9001, UL 1642, CE, ROSH, UN38.3 for Cells |
||||
|
Cells: 3.2v 3300mah 40ah 60ah 100ah 200ah 300ah 400ah / OEM ODM
Outer size: Accept to OEM/ODM PCM/BMS: Included and accept to OEM ODM customized Fit For: electric vehicle, scooter, balance vehicle, golf cart, electric equipment ,UPS,solar wind inverter syster etc. |
||||
