Quick Details
-
Rated Output Voltage:
-
28 V
-
Place of Origin:
-
Ho Chi Minh City, Vietnam
-
Brand Name:
-
Hong Ky
-
Dimensions:
-
See details page
-
Use:
-
See details page
-
Weight (KG):
-
8.8 KG
-
Function:
-
Inverter IGBT Welding Machine
-
Type:
-
TIG
-
MOQ:
-
50
-
Weld method:
-
ARC WELDING
-
Color:
-
BLUE
-
Duty cycle:
-
20% /200A
-
Hot start:
-
YES
-
AC Input Voltage(V):
-
240V / 120V
-
OEM:
-
YES
Quick Details
-
Rated Duty Cycle @40°C:
-
20% /200A
-
Rated Input Voltage:
-
120V/240V
-
Max. Load Power Capacity:
-
7.24KVA
-
Rated Output Voltage:
-
28 V
-
Place of Origin:
-
Ho Chi Minh City, Vietnam
-
Brand Name:
-
Hong Ky
-
Dimensions:
-
See details page
-
Use:
-
See details page
-
Weight (KG):
-
8.8 KG
-
Function:
-
Inverter IGBT Welding Machine
-
Type:
-
TIG
-
MOQ:
-
50
-
Weld method:
-
ARC WELDING
-
Color:
-
BLUE
-
Duty cycle:
-
20% /200A
-
Hot start:
-
YES
-
AC Input Voltage(V):
-
240V / 120V
-
OEM:
-
YES
Product Description
|
Product Name
|

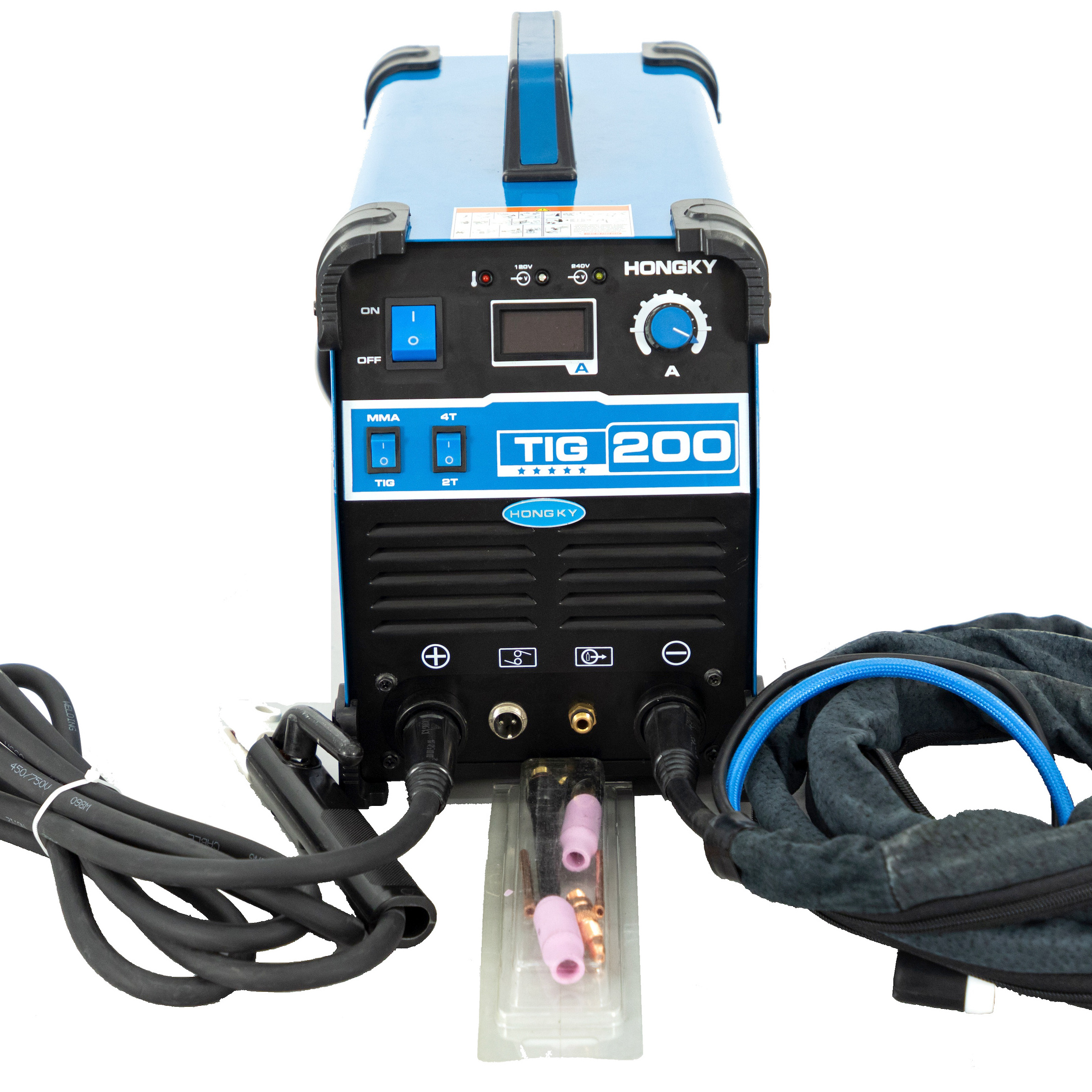

120V/240V input ARC TIG200 welding machines
|
|
Brand Name
|
Hong Ky
|
|
Model Number
|
TIG200USA - 120V/240V
|
Model TIG (DC) MMA Inverter 200 Ampe 120V - 240V - TIG200USA
SKU SKU : 9970037
Rated Supply Voltager: 120V ± 15%, Single-phase
240V ± 15%, Single-phase
Rated Supply Current Max: 47.0A
Rated Output: Rated Output (TIG) : 240VAC : 10A - 200A, 10.4V - 18.0V
120 VAC: 10A - 90A, 10.4V - 18.0V
Rated Output (MMA) : 240VAC : 10A - 200A, 20.4V - 28.0V
120 VAC: 10A - 90A, 20.4V - 28.0V
Duty Cycle: Rated Duty Cycle of max I2/U2: 20% / 200A
Power Consumption: Max Power Consumption: 7.24 KW
Machine Measurement: 427*200*316 mm
Machine Net weight : Machine Net weight : 8.8Kg
FEATURES - USAGE - ACCESSORIES
Base Current - 60A, 25mS
Arc Force
Thermal protection
MMA stick : 1.6-5.0mm
TIG : 1.6-3.2mm, 2T/4T
Accessories : Electrode Holder (300A) and Work clamp (300A) : DKJ 10 -25(male), welding cable size 16mm2. length : 3m for Electrode Holder, 2m for Work clamp, Brush, 4m of WP-27 Gun Tig torch, 16mm2
Power Cord with NEMA6-50P Plug, 7.9 feet(2.4m), 12AW
