- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
DJF-6A Mid-Power IP & Resistivity Transmitter
-
Model:
-
DJF-6A
-
Feature:
-
Large LCD
-
Color:
-
Red
-
Dimension:
-
430*260*180mm
-
Weight:
-
10.5kg
-
Brand:
-
SAMYON
-
MOQ:
-
1
-
Packing:
-
Carton
Quick Details
-
Warranty:
-
1 Year, 1 year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SAMYON
-
Product name:
-
DJF-6A Mid-Power IP & Resistivity Transmitter
-
Model:
-
DJF-6A
-
Feature:
-
Large LCD
-
Color:
-
Red
-
Dimension:
-
430*260*180mm
-
Weight:
-
10.5kg
-
Brand:
-
SAMYON
-
MOQ:
-
1
-
Packing:
-
Carton

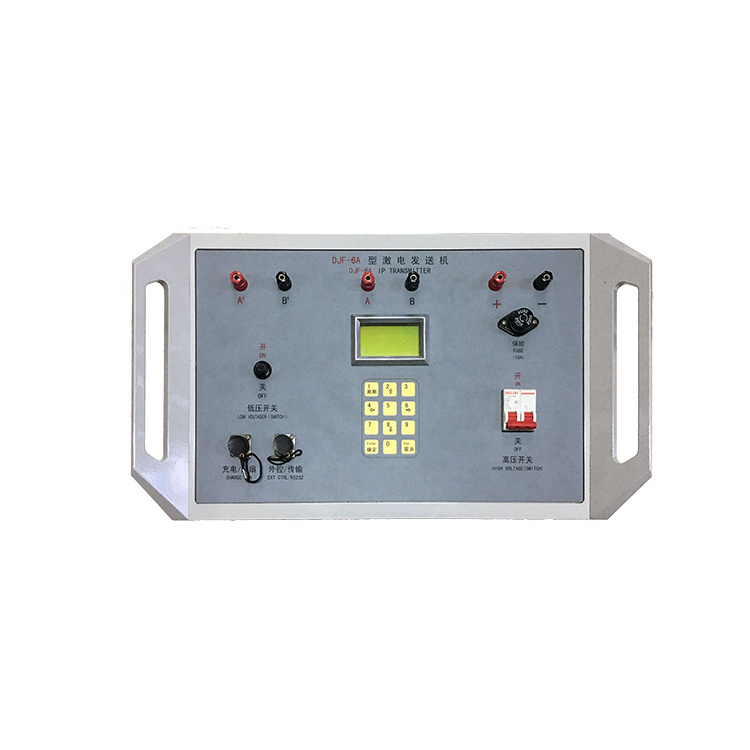

DJF-6A Mid-Power IP & Resistivity Transmitter
Product Description
1.On-board computer control;
2.accurate timing,high reliability
3.Large LCD,English menu,
4.Digital display of output voltage,current,
5.Power supply resistance,power supply time
6.Power supply period and battery voltage
7.Big power supply current,overload protectic
8.Big output voltage(1000V)
Specification
|
Time control Precision
|
0<±0.01%(quartz crystal controller)
|
power supply periods
|
√4“，8”，16“，32” and 64“（input 0-996 by hand）
√MIPI external contro
|
|
Rated output power
|
5KW(500V,10A)
|
|
|
|
Maximum output voltage
|
±1000V
|
High-capacity data memory
|
9000 groups current data (Include the year,month,day, hour,minute and second of the measurement time).
It has ac dump protecting function,can store the data for 25 years.
|
|
Maximum output current
|
±10A
|
|
|
|
Maximum output voltage
|
=<150mA
|
|
|
|
Work temperature
|
-5℃-45℃
|
|
|
|
Power pulse width
|
1-32s bipolar;duty ratio of 1:1
|
Internal power consumption
|
√16V,130mA
√Power supply:16V,4.4A
√Rechargeable lithium battery
|
|
Additional function
|
Input voltage,output current measurement
|
|
|
|
Voltage indication accuracy
|
±0.2%±1 word
|
Dimension
|
430*260*180mm
|
|
Current indication accuracy
|
±0.2%±1 word
|
Weight
|
10.5kg
|
|
Current memory interval
|
memory as period interval
|
Insulation resistance
|
>100MΩ
|
