Quick Details
-
Size:
-
6500*3500*3200mm
-
Material:
-
hot-dip galvanized steel
-
Warranty:
-
three years
-
Output Power:
-
16.5kw
-
Usage:
-
car washing
-
Washing speed:
-
3-6 minutes
-
Total weight:
-
1500kg
-
Power supply:
-
380V/25kw/60HZ
-
Control system:
-
PLC+HMI control
-
Drive system:
-
frequency inverter control
-
Water consumption:
-
100-180L
-
Electricity consumption:
-
0.4-1kw H/car
-
Package:
-
≤8CBM
-
Type:
-
Car Washer
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Huaye
-
Model Number:
-
L1-50
-
Size:
-
6500*3500*3200mm
-
Material:
-
hot-dip galvanized steel
-
Warranty:
-
three years
-
Output Power:
-
16.5kw
-
Usage:
-
car washing
-
Washing speed:
-
3-6 minutes
-
Total weight:
-
1500kg
-
Power supply:
-
380V/25kw/60HZ
-
Control system:
-
PLC+HMI control
-
Drive system:
-
frequency inverter control
-
Water consumption:
-
100-180L
-
Electricity consumption:
-
0.4-1kw H/car
-
Package:
-
≤8CBM
-
Type:
-
Car Washer
Product Description

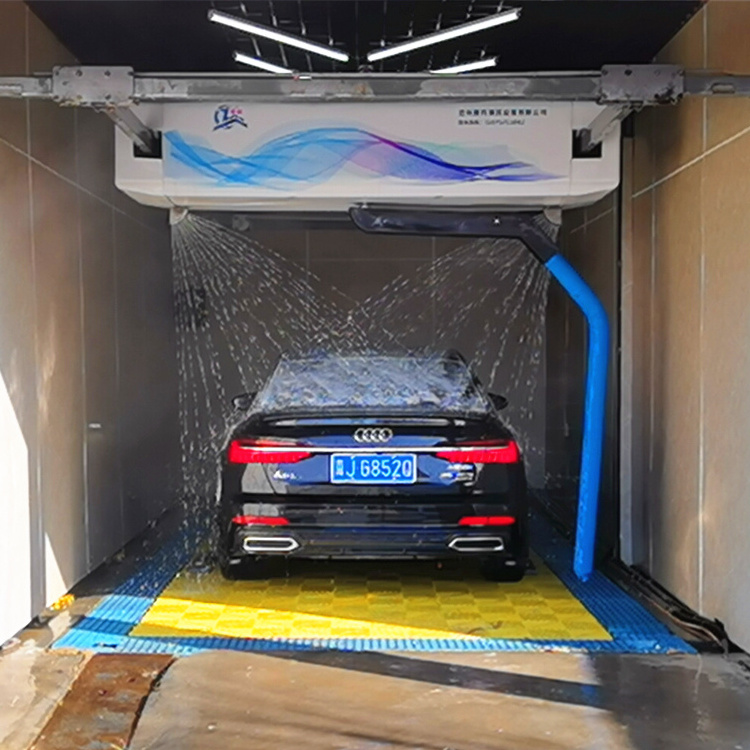

The new generation of touchless system stands out in so many ways: looks, mechanics, flexibility, and versatility. It has been created to satisfy the needs of the most demanding professionals in the wash world. What’s more, this new series has a special quality which makes it different to anything the market has ever known before: its adaptability. The interior immediately appeals with its stylish modern design, which combines the latest technology and maximum reliability in the wash.
Specification
|
|
Item
|
Parameters
|
|
1
|
Dimension（L*W*H）
|
2800*1300*1000mm
|
|
2
|
Layout(L*W*H)
|
6500*3500*3200mm
|
|
3
|
Max. Wash height
|
2000mm
|
|
4
|
Max. Wash width
|
2200mm
|
|
5
|
Max. Wash length
|
5900mm
|
|
6
|
Washing speed
|
3-6 min.(depend on the operation mode or procedure chosen )
|
|
7
|
Total weight
|
1500kg
|
|
8
|
Power supply
|
380V/25kw
|
|
9
|
Air switch
|
100A
|
|
10
|
Water pump motor power
|
15kw
|
|
11
|
Fan motor power
|
5.5kw*3 sets frequency control
|
|
12
|
Moving motor power
|
0.37kw frequency control
|
|
13
|
Rotation motor power
|
0.37kw frequency control
|
|
14
|
Control system
|
PLC+HMI control system
|
|
15
|
Drive system
|
Frequency inverter control
|
|
16
|
Detection system
|
Ultrasonic intelligent three-dimensional detection
|
|
17
|
Water consumption
|
100-180L/car
|
|
18
|
Electricity consumption
|
0.4-1kw•H/car
|
|
19
|
Packing
|
≈8CBM
|
Products Description
|
1
|
Self-parking and detecting system
|
√
|
||
|
2
|
Vehicle collision avoidance system
|
√
|
||
|
3
|
360° high pressure washing
|
√
|
||
|
4
|
Chassis washing
|
√
|
||
|
5
|
Detergent spraying
|
√
|
||
|
6
|
Colorful/high Foam spraying
|
√
|
||
|
7
|
Wax spraying
|
√
|
||
|
8
|
Inbuilt air dry system
|
√
|
||
|
9
|
LED indicator system
|
√
|
||
|
10
|
Operation permission setting function
|
√
|
||
|
11
|
Voice prompts function
|
√
|
||
|
12
|
Freeze Prevention system
|
√
|
||
|
13
|
Lubrication-free
|
√
|
||
|
14
|
Equal pressure anti blocking nozzle
|
√
|
||
|
15
|
Safe alarm system
|
√
|
||
|
16
|
Throughput info.
|
√
|
||
|
17
|
Automatic standby system
|
√
|
||
|
18
|
Remote control
|
√
|
||
|
19
|
Breakdown self check
|
√
|
||
|
20
|
Galvanized steel frame
|
√
|
||
|
21
|
Self-service payment system
|
●
|
||
|
22
|
Colorful lights
|
●
|
||
|
23
|
Water recycle system
|
●
|
||
|
Standard √ Optional ●
|
|
|
||
