Quick Details
-
Product Weight（kg）:
-
0.5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunricher
-
Connection Mode:
-
Wiring
-
Product name:
-
4 Channels DALI Phase Dimmer
-
Input Voltage:
-
100-240VAC
-
Output Voltage:
-
4x(100-240)VAC
-
Max. Load Current:
-
4x1.8A
-
IP Rating:
-
IP20
-
DALI Consumption:
-
< 2mA
-
Size:
-
145.4x90x66.4mm
-
Features:
-
Digital Display; DALI-2 interface
-
Channel:
-
4CH
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
Phase Dimmer
-
Max. Load Power:
-
4x400W @ 230V, 4x400W @ 230V
-
Product Weight（kg）:
-
0.5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunricher
-
Connection Mode:
-
Wiring
-
Product name:
-
4 Channels DALI Phase Dimmer
-
Input Voltage:
-
100-240VAC
-
Output Voltage:
-
4x(100-240)VAC
-
Max. Load Current:
-
4x1.8A
-
IP Rating:
-
IP20
-
DALI Consumption:
-
< 2mA
-
Size:
-
145.4x90x66.4mm
-
Features:
-
Digital Display; DALI-2 interface
-
Channel:
-
4CH
Product Description
1. In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
2. Built-in DALI-2 interface, DALI DT6 device.
3. Match all DALI systems in the market.
3. Match all DALI systems in the market.
4. Safe and reliable full isolation design.
5. DALI phase dimmer, trailing edge dimming.
6. Supports resistive loads and capacitive loads.
7. DALI signal input, DALI address can be set with buttons and displayed on the digital display.
8. Waterproof grade: IP20
9. Din rail installation, easy and fast.
10.To dim and switch single color dimmable LED lamps, dimmable LED driver, traditional incandescent and halogen lights.
11.4 channels AC100-240V output.
12.DALI address quantity can be set as 1/2/3/4 to control 4 channels load simultaneously or separately.
7. DALI signal input, DALI address can be set with buttons and displayed on the digital display.
8. Waterproof grade: IP20
9. Din rail installation, easy and fast.
10.To dim and switch single color dimmable LED lamps, dimmable LED driver, traditional incandescent and halogen lights.
11.4 channels AC100-240V output.
12.DALI address quantity can be set as 1/2/3/4 to control 4 channels load simultaneously or separately.
Product Presentation
|
|

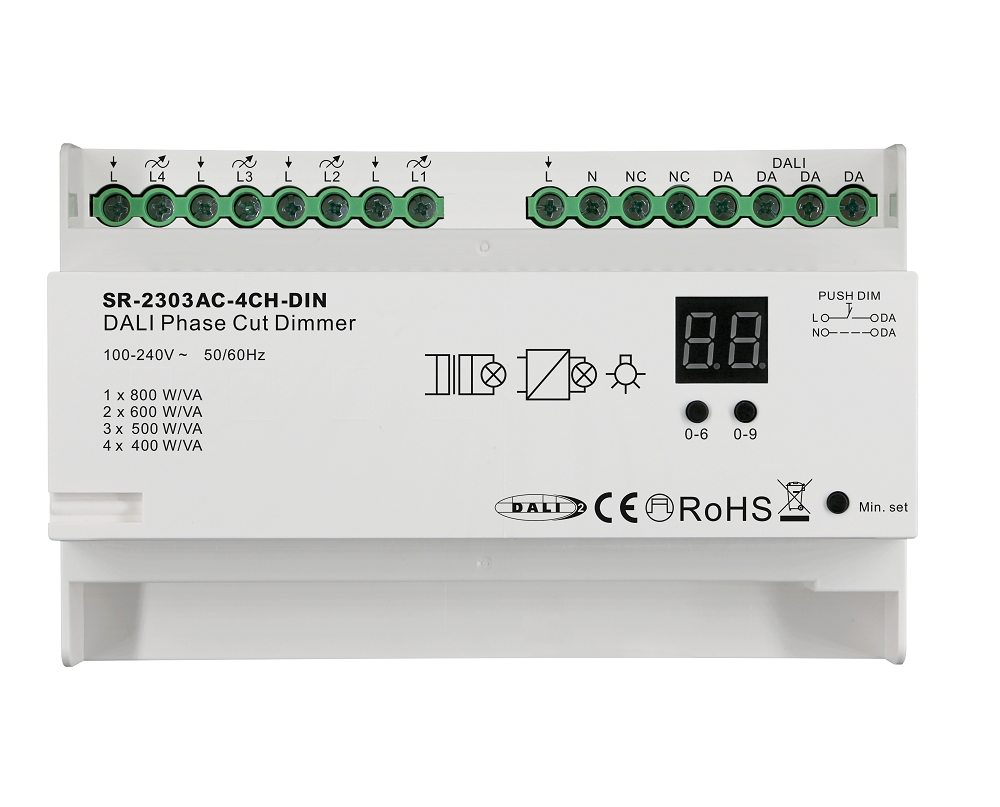

4 Channels DALI Phase Dimmer
|
|
Max. Load Current
|
|
|
|
|
|
|
|
|
DALI Consumption
|
|
|
|
|
|
Feature
|
|
