Quick Details
-
Table Travel (Z) (mm):
-
500 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2022
-
Range of Spindle Speed(r.p.m):
-
600 r.p.m
-
Spindle Motor Power(kW):
-
3.75
-
Production Capacity:
-
5 Sets/month
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Premier Machines
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2680*1500 *2200mm
-
Weight (T):
-
3.8 T
-
Range of boring diameter:
-
42 to 180 mm
-
Max. boring depth:
-
500mm
-
Rotational speed of spindle:
-
175, 230, 300, 350, 460, 600rpm (Optional stepless:140-610 r/min)
-
Spindle feed:
-
0.05,0.10,0.20 mm
-
Table size:
-
1680 x 450mm
-
Rapid travel of guide slide:
-
2800 mm/min
-
Rapid travel of table:
-
1400 mm/min
-
Main motor:
-
3.75 Kw
Quick Details
-
Table Size (mm):
-
1680x450
-
Table Travel (X) (mm):
-
1100 mm
-
Table Travel (Y) (mm):
-
100 mm
-
Table Travel (Z) (mm):
-
500 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2022
-
Range of Spindle Speed(r.p.m):
-
600 r.p.m
-
Spindle Motor Power(kW):
-
3.75
-
Production Capacity:
-
5 Sets/month
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Premier Machines
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2680*1500 *2200mm
-
Weight (T):
-
3.8 T
-
Range of boring diameter:
-
42 to 180 mm
-
Max. boring depth:
-
500mm
-
Rotational speed of spindle:
-
175, 230, 300, 350, 460, 600rpm (Optional stepless:140-610 r/min)
-
Spindle feed:
-
0.05,0.10,0.20 mm
-
Table size:
-
1680 x 450mm
-
Rapid travel of guide slide:
-
2800 mm/min
-
Rapid travel of table:
-
1400 mm/min
-
Main motor:
-
3.75 Kw

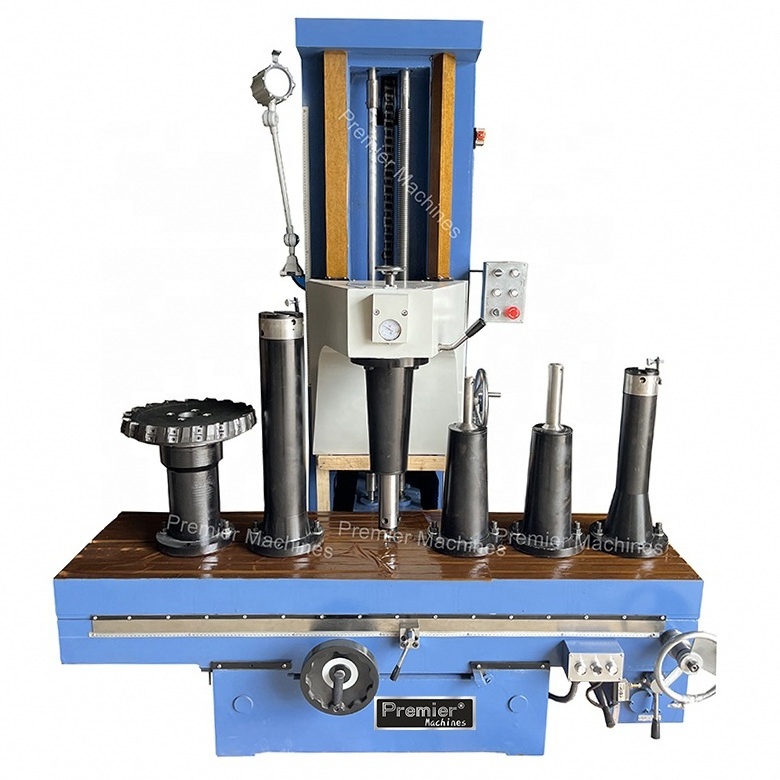

Vertical Fine Cylinder Boring Machine
Model:T8018C
T8018C is mainly used to bore high accurate holes of cylinder body and
engines sleeve and other accurate holes.
1. The table longitudinal and latitudinal moving device;
2. The workpiece fast centering device;
3. Boring measuring device;
4. Also provides optional digital readout for the table's longitudinal and
cross moving accessories to serve the users
|
Model |
T8018C |
|
|
Range of boring diameter |
42 to 180 mm |
|
|
Max. boring depth |
500 mm |
|
|
The rotational speed of spindle |
175, 230, 300, 350, 460, 600rpm
|
|
|
Spindle feed |
0.05,0.10,0.20 mm |
|
|
Table size |
1680 x 450mm |
|
|
Rapid travel of guide slide |
2800 mm/min |
|
|
Rapid travel of table |
1400 mm/min |
|
|
Machine power |
Main motor |
3.75 Kw |
|
Overall dimensions(L x W x H) |
2680x1500x2325 mm |
|
|
Packing dimensions(L x W x H) |
1578x1910x2575 mm |
|
|
N.W./G.W. |
3500/3700 kg |
|
|
Model |
Standard accessories |
Optional accessories |
|
PM-TX180 |
6,7 |
1,4,8,9,10,11,12 |
