Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OL
-
Voltage:
-
110V-220V
-
Dimension(L*W*H):
-
990*900*1330mm
-
Weight:
-
120 kg
-
PLC Brand:
-
OTHER
-
model:
-
OL-GY01
-
speed:
-
0~2200 sheets/minute
-
max paper size:
-
546*788MM
-
min paper size:
-
100*150MM
Quick Details
-
Type:
-
Other
-
Production Capacity:
-
Other
-
Max. workable width:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OL
-
Voltage:
-
110V-220V
-
Dimension(L*W*H):
-
990*900*1330mm
-
Weight:
-
120 kg
-
PLC Brand:
-
OTHER
-
model:
-
OL-GY01
-
speed:
-
0~2200 sheets/minute
-
max paper size:
-
546*788MM
-
min paper size:
-
100*150MM

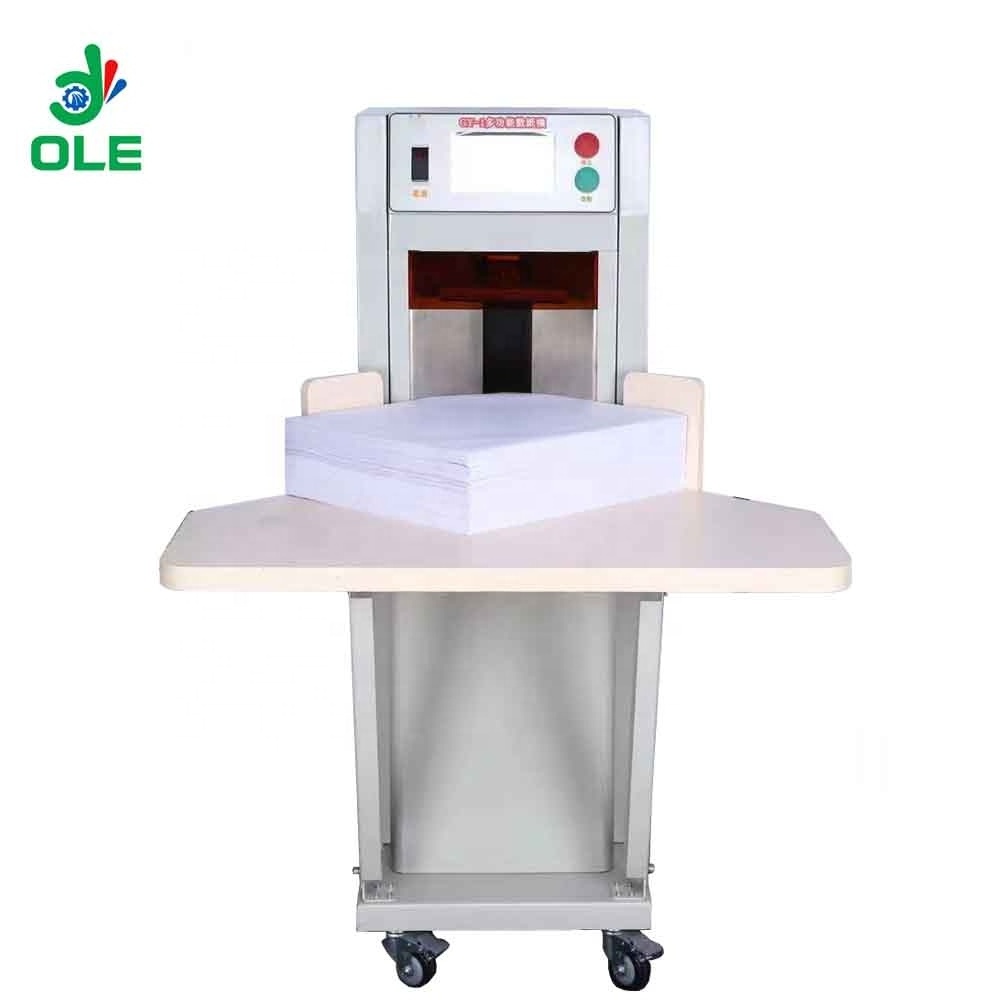

Multifunctional Paper Counting Machine Fast Speed Paper Numbering Machine Paper Sheet Counting Fascicle Machine
Product Paramenters
|
Model
|
OL-GY01
|
|
Max paper size
|
546mm*788mm
|
|
Min paper size
|
100mm*150mm
|
|
speed
|
2000pcs/min
|
|
dimension
|
990*900*1330mm
|
|
Paper range
|
25g/m2-120g/m2
|
|
Insert tab
|
Each 2-1000pcs
|
|
Max paper height
|
250mm
|
|
table height
|
760mm
|
|
Weight
|
120kg
|
Details Images
Counting mold:
1. Counting and paper counting mode: This mode is a pure counting function. If this mode is selected, the machine will not insert the sub-book function.
2. Random processing mode: This mode is the function of unequal volume division, that is, the number of sub-books inserted in each volume is not equal, and one set is set (each group can set 500 different volumes of paper). Regularly repeat this (2-9 times).
3. The number of each volume, the number of inserts, and the total number of papers can be set arbitrarily on the touch screen and can be modified. This machine also has the functions of setting the label tape length, pressing board operation mode, data storage, high-speed and low-speed selection, etc.
2. Random processing mode: This mode is the function of unequal volume division, that is, the number of sub-books inserted in each volume is not equal, and one set is set (each group can set 500 different volumes of paper). Regularly repeat this (2-9 times).
3. The number of each volume, the number of inserts, and the total number of papers can be set arbitrarily on the touch screen and can be modified. This machine also has the functions of setting the label tape length, pressing board operation mode, data storage, high-speed and low-speed selection, etc.
