Quick Details
-
Model Number:
-
YVP-200L2-2
-
Frequency:
-
50HZ, 50HZ(can be customized)
-
Product Name:
-
YVP Series ac industrial electric motor with frequency inverter
-
Protection Level:
-
IP54/IP55
-
Center Height of Frame:
-
H80~H255mm
-
Power range:
-
0.55KW-315KW
-
Supply voltage:
-
380V
-
Thermal Class:
-
155 (F)
-
Cooling:
-
IC416
-
Certification:
-
ISO9001
-
Features:
-
variable frequency and speed
Quick Details
-
AC Voltage:
-
380v
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Leadgo
-
Model Number:
-
YVP-200L2-2
-
Frequency:
-
50HZ, 50HZ(can be customized)
-
Product Name:
-
YVP Series ac industrial electric motor with frequency inverter
-
Protection Level:
-
IP54/IP55
-
Center Height of Frame:
-
H80~H255mm
-
Power range:
-
0.55KW-315KW
-
Supply voltage:
-
380V
-
Thermal Class:
-
155 (F)
-
Cooling:
-
IC416
-
Certification:
-
ISO9001
-
Features:
-
variable frequency and speed

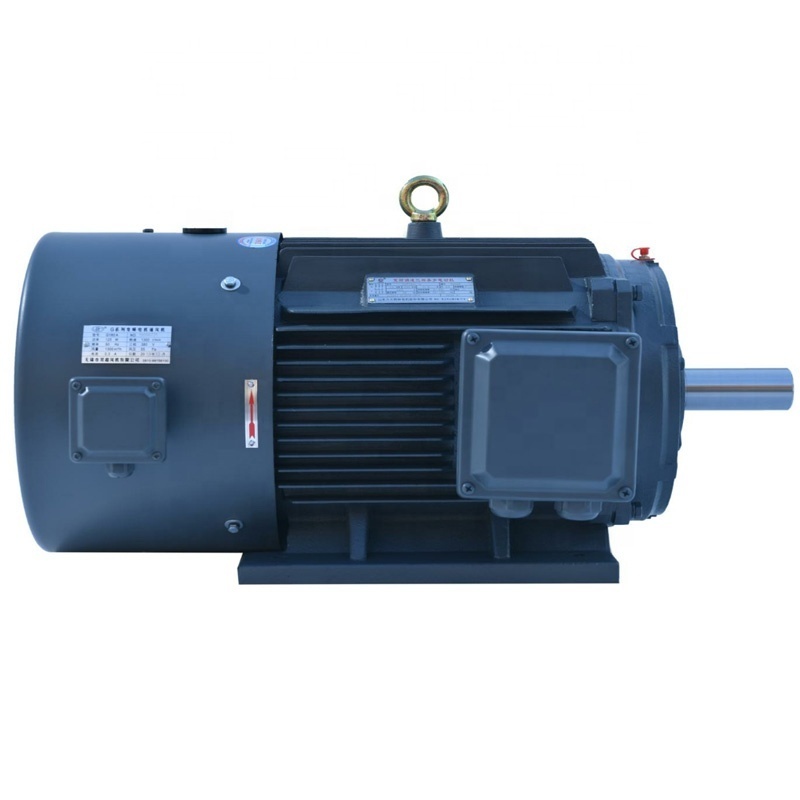

YVP Series Variable Frequency and Variable Speed Three Phase Asynchronous Motor
OEM acceptable, all our motors are custom made products, we will always fulfill your need.
Product Description
YVP series motors are AC variable frequency step less speed regulation motors which are specially designed and mating with asynchronous frequency inverter. The motors can run under variable frequency power source and have two types: with encoder and without encoder. Speed range, constant torque running in 5-50Hz and constant power running in 50-100Hz, stably and with small torque pulsation. According to usage requirement, it has two types: with encoder and without encoder. It can be equipped with independent fan cooling device to ensure better cooling effects under different speed. With encoder, the motor starts smoother and the control is more precious. This series motors apply to fan blower, water pump, hydraulic pressure station, plastic machinery, paper machinery, rubber machinery which need step less speed regulation, The motors with higher efficiency and accuracy can replace YCT electric motors.
|
YVP Series
|
|
|
|
Center Height of Frame
|
H80 - H355mm
|
|
|
Rated Power
|
0.55KW --315KW
|
|
|
Supply Voltage, Frequency
|
380V, 50Hz (can be customized)
|
|
|
Protection Grade
|
IP55.IP54
|
|
|
Thermal Class
|
155 (F)
|
|
|
Cooling
|
IC416
|
|
Why Choose Us
|
Rich Case Applications
|
1. Supplier of CNPC and SINOPEC
2. Provide electrical products and motor control system solutions for 30 000 enterprises |
|
Professional Strength
|
Build a first-class experimental equipment and equipped with the world's top testing equipment
|
|
Scientific Production
|
1. Implement ERP and PDM system
2. Meet customer demand for product customization. |
|
Comprehensive strength
|
1. Specialize in manufacturing electric motor with more than 40 years.
2.Have 68 national patents and participated in the development of sixteen national and industry standards. |
