Product Description

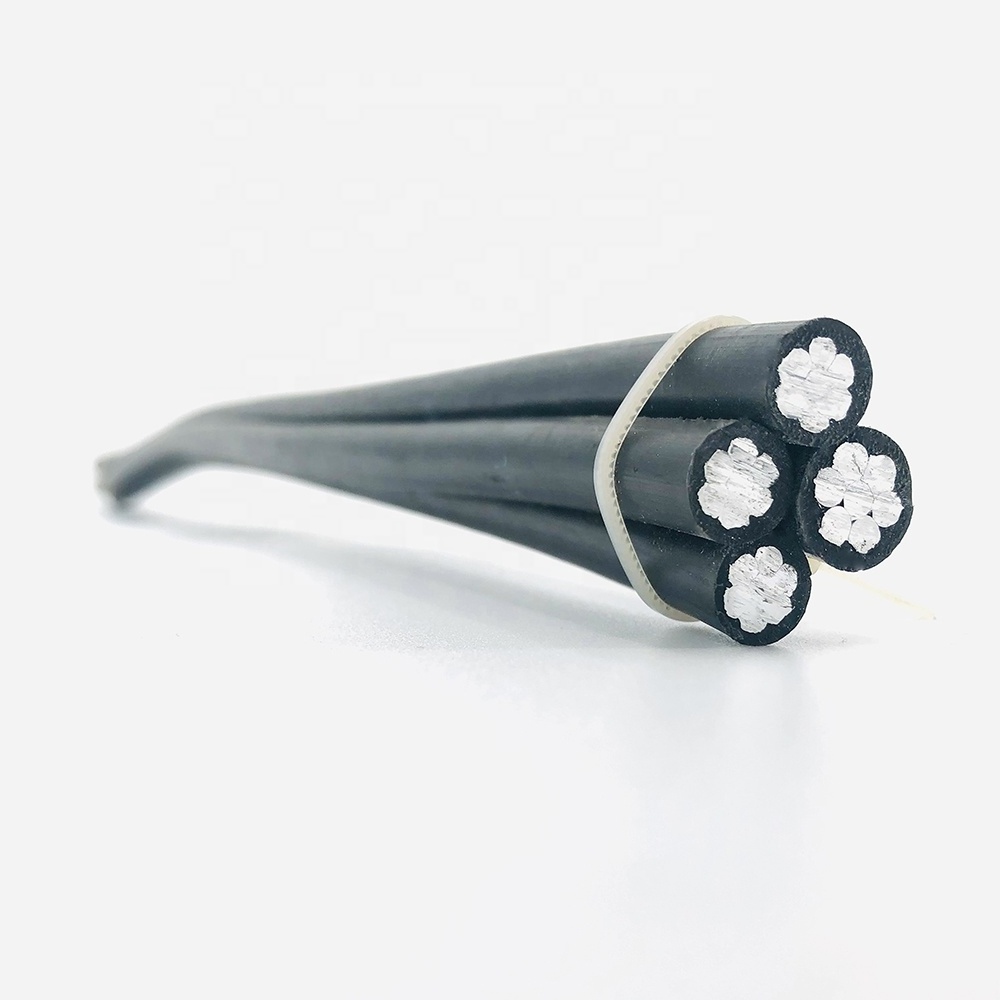

^{10 mm 35 mm 50mm 3 Phase Aluminium Conductor Triplex Service Drop Wire ABC Aerial Bundled Power Cable

for Overhead}

_{Overhead insulated cables are composed of copper or aluminum conductors, inner shielding layer, weather-resistant insulating material and outer shielding layer.

Aerial insulated cable

have not only the power transmission characteristics of power cables, but also the strong mechanical characteristics of overhead cables.
Compared with bare wires, overhead insulated cables have many advantages such as small laying span, high reliability, and good anti-aging performance. They are the types of cables that are actively selected for urban power projects.}

^{Product Name}	^{Aerial Cable}
^Model	^{JKTRYJ; JK(L)YJ; JK(L)Y; JKLGYJ; JKLGY; JKLYJ/Q; JKLY/Q; JKLGYJ/Q; JKLGY/Q;} JKLGYJ / JKV / JKLV / JKLHV / JKY / JKLY / JKLHY / JKYJ / JKIYJ / JKLHYJ / JKTRYJ
^{Section ( aluminum / steel ) mm2}	^{10-240mm2 10/2-500/65 ( JKLGYJ-10 ) 25-240 25-120 ( JKYJ JKTRYJ )}
^Insulation	^{cross-linked polyethylene(XLPE) insulated, covered for weather proofing with polyethylene(PVC), high density polyethylene(HDPE)}
^Conductor	^{HD Copper Wire, 1350-H19 Aluminum Wire ,or ACSR conductors, concentrically stranded}
^Standard	^{GB/T12527-2008 GB/T1179-2008 GB/T14049-2008 / IEC 60502 / IEC 60227}

^Type	^Name	^Nominal ^{cross-section} ^area ^mm2	^Application
^JKTRYJ	^{Soft copper conductor XLPE insulation aerial cable}	^10~120	^{The transformer leads to connect the line}
^JK(L)YJ	^{Cu (Al) conductor XLPE insulation Aerial cable}	^16~240	^{In fixedly laying the cable, The user must keep certain distance between cable and trees. During power transmission, allow the cable with the multifarious contact in tree}
^JK(L)Y	^{Cu (Al) conductor XLPE insulation Aerial cable}	^16~240
^JKLGYJ	^{Steel-Al conductor XLPE insulation Aerial cable}	^25/4~300/40
^JKLGY	^{Steel-Al conductor HDPE insulation Aerial cable}	^25/4~300/40
^JKLYJ/Q	^{Al conductor light XLPE insulation Aerial cable}	^16~240	^{In fixedly laying the cable, The user must keep certain distance between cable and trees. During power transmission, the cable can be allowed in contact with trees just for a short time.}
^JKLY/Q	^{Al conductor light HDPE insulation Aerial cable}	^16~240
^JKLGYJ/Q	^{Steel-Al conductor light XLPE insulation Aerial cable}	^16~240
^JKLGY/Q	^{Steel-Al conductor light HDPE insulation Aerial cable}	^16~240

^NCS-Area

^mm2

^{Conductor DC resistance}

^{Insulate resistance}

^Conductor

^Ω/km

^MΩ.km

^{Min Splitting Source}

Hard Cu

^Cu

^Al

^700C

^900C

^{Hard Cu}

^Al

¹⁰

^1.906

^1.83

^3.08

^0.0067

^0.67

³⁴⁷¹

¹⁶⁵⁰

¹⁶

^1.198

^1.15

^1.91

^0.0065

^0.65

⁵⁴⁸⁶

²⁵¹⁷

²⁵

^0.749

^0.727

^1.2

^0.0054

^0.54

⁸⁴⁶⁵

³⁷⁶²

³⁵

^0.54

^0.524

^0.868

^0.0054

^0.54

¹¹⁷³¹

⁵¹⁷⁷

⁵⁰

^0.399

^0.387

^0.641

^0.0046

^0.46

¹⁶⁵⁰²

⁷⁰¹¹

⁷⁰

^0.276

^0.268

^0.443

^0.004

^0.4

²³⁴⁶¹

¹⁰³⁵⁴

⁹⁵

^0.199

^0.193

^0.32

^0.0039

^0.39

³¹⁷⁵⁹

¹³⁷²⁷

¹²⁰

^0.158

^0.153

^0.253

^0.0035

^0.35

³⁹⁹¹¹

¹⁷³³⁹

¹⁵⁰

^0.128

^0.206

^0.0035

^0.35

⁴⁹⁵⁰⁵

²¹⁰³³

¹⁸⁵

^0.1021

^0.164

^0.0035

^0.35

⁶¹⁸⁴⁶

²⁶⁷³²

²⁴⁰

^0.0777

^0.125

^0.0034

^0.34

⁷⁹⁸²³

³⁴⁶⁷⁹

³⁰⁰

^0.0619

^0.1

⁹⁹⁷⁸⁸

⁴³³⁴⁹

_{Aerial Bundled Cable}

_{Overhead insulated cables, overhead wires equipped with an insulating layer and protective sheath, are a new power transmission method between overhead wires and underground cables.

Overhead cables are single-core, and can be divided into hard aluminum wire structure, hard drawn copper wire structure, aluminum alloy wire structure, steel core or aluminum alloy core support structure and self-supporting three-core pattern structure (wire The core can be hard aluminum or hard copper wire) and so on.}

_{It has the main characteristics of high power supply reliability, good power supply safety, convenient installation and maintenance, and reasonable economy.}

^{ABC ALUMINUM CABLE

STANDARDS}

_{COVERED LINE WIRE-ALUMINUM CONDUCTOR:}

_{ASTMB-230,B-231,B-232 and B-399}

_{ICEA S-61-402 and S-66-524}

_{DUPLEX SERVICE DROP-ALUMINUM CONDUCTOR:}

_{ASTMB-230,B-231B-232and B-399}

_ICEAS-76-474

_{TRIPLEXSERVICEDROP-ALUMINUM CONDUCTOR:}

_{ASTMB-230B-231,B-232and B-339}

_ICEAS-76-474

_{QUADRUPLEX SERVICE DROP-ALUMINUM CONDUCTOR:}

_{Quadruplex service drop cable

meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for electrical Purposes.
B-231 Aluminum conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum.
Service Drop cable meets or exceeds all applicable requirements of ICEA S-79-474.}

^{DUPLEX SERVICE DROP-ALUMINUM CONDUCTOR:}

^{Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strsand

AAC,ACSR,or 6201 alloy neutral messenger.} ^{*

Applications:}

_{To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volt

or lower at a conductor temperature of 75℃ maximum.}

^{Nominal cross section}

^{Neutral core}

^{Phase core}

^{weight (kg/km)}

^{Allowable ampacity (A)}

^AAC

^LBS

^AAC

^{Insulation thickness(mm)}

^XLPE

^PE

^NO

^diameter

^(mm)

^NO

^diameter(mm)

^{1*6AWG+1*6AWG}

⁷

^1.56

563

4.11

^1.14

⁹²

⁸⁵

⁷⁰

^{1*6AWG+1*6AWG}

⁷

^1.56

563

1.56

^1.14

⁹⁴

⁸⁵

⁷⁰

^{1*4AWG+1*4AWG}

⁷

^1.96

881

5.19

^1.14

¹³⁹

¹¹⁵

⁹⁰

^{1*4AWG+1*4AWG}

⁷

^1.96

881

1.96

^1.14

¹⁴¹

¹¹⁵

⁹⁰

^{1*2AWG+1*2AWG}

⁷

^2.47

1350

2.47

^1.14

²¹⁶

¹⁵⁰

¹²⁰

^{1*1/0AWG+1*1/0AWG}

⁷

^3.12

1990

1.89

^1.52

³⁴⁷

²⁰⁵

¹⁶⁰

^{TRIPLEXSERVICEDROP-ALUMINUM CONDUCTOR:}

_{Concentric strand or compressed 1350-H19 conductor polyethylene or crosslinked polyethylene insulation, concentric strand AAC,ACSR

or 6210 alloy neutral messenger.}

*Applications:

_{To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volt or less (phase to phase) at a conductor temperature of75℃ maximum for polyethylene insulation or 90℃ maximum for crosslinked insulation.}

^{AWG or kcmil}

_{Bare Neutral Messenger}

^{Phase Conductor}

^{Weight kg/km}

^{Allowable Ampacities(A)}

^AAC

_{Rated Strength lbs.}

^AAC

_{Insul. Thick. mm}

^XLPE

^PE

^NO.

^Dia.mm

^NO.

^Dia.mm

^{2*6AWG+1*6AWG}

⁷

^1.56

⁵⁶³

^4.11

^1.14

¹⁴⁶

⁸⁵

⁷⁰

^{2*6AWG+1*6AWG}

⁷

^1.56

⁵⁶³

⁷

^1.56

^1.14

¹⁵⁰

⁸⁵

⁷⁰

^{2*4AWG+1*4AWG}

⁷

^1.96

⁸⁸¹

^5.19

^1.14

²¹⁹

¹¹⁵

⁹⁰

^{2*4AWG+1*4AWG}

⁷

^1.96

⁸⁸¹

⁷

^1.96

^1.14

²²⁴

¹¹⁵

⁹⁰

^{2*2AWG+1*2AWG}

⁷

^2.47

¹³⁵⁰

⁷

^2.47

^1.14

³³⁸

¹⁵⁰

¹²⁰

^{2*1/0AWG+1*1/0AWG}

⁷

^3.12

¹⁹⁹⁰

⁷

^3.12

^1.52

⁵⁴⁴

²⁰⁵

¹⁶⁰

^{2*1/0AWG+1*1/0AWG}

⁷

^3.12

¹⁹⁹⁰

¹⁹

^1.89

^1.52

⁵⁴⁵

²⁰⁵

¹⁶⁰

^{2*2/0AWG+l*2/0AWG}

⁷

^3.5

²⁵¹⁰

⁷

^3.5

^1.52

⁶⁷¹

²³⁵

¹⁸⁵

^{2*3/0AWG+l*3/0AWG}

¹⁹

^2.39

³³¹⁰

¹⁹

^2.39

^1.52

⁸³⁰

²⁷⁵

²¹⁵

^{2*4/0AWG+l*4/0AWG}

¹⁹

^3.25

⁴⁰²⁰

¹⁹

^3.25

^1.52

¹⁴⁷⁶

³¹⁵

²⁴⁵

^{2*336.4+1*336.4}

¹⁹

^3.38

⁶¹⁴⁶

¹⁹

^3.38

^2.03

¹⁶⁴⁹

⁴²⁰

³²⁵

^{^{QUADRUPLEX SERVICE DROP-ALUMINUM CONDUCTOR:}}
_{Conductors are concentrically stranded. compressed 1350-H19 aluminum. insulated with either polyethylene or XLPE crosslinked

polyethylene. Neutral messengers are concentrically stranded 6201,AAC, orACSR. One conductor is manufactured with an extruded

ridge for phase identification.}

_{*

APPLICATIONS:}

_{Used to supply 3 phase power, usually from a polemounted transformer, to the user's service head where connection to the service

entrance cable is made.

To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75℃ for polyethylene

insulated conductors or 90℃ for crosslinked polyethylene (XLPE)insulated conductors.}

^{AWG or kcmil}

_{Bare Neutral Messenger}

_{Phase Conductor}

_{Weight kg/km}

^{Allowable Ampacities(A)}

^ACSR

_{Rated Strength lbs.}

^AAC

_{Insul. Thick. mm}

^XLPE

^PE

^No.

^{Dia. mm}

^No.

^{Dia. mm}

^{3*6AWG+1*6AWG}

^1,6

^1.68

¹¹⁹⁰

^4.11

^1.14

²²¹

⁷⁵

⁶⁰

^{3*6AWG+1*6AWG}

^1,6

^1.68

¹¹⁹⁰

⁷

^1.56

^1.14

²²⁷

⁷⁵

⁶⁰

^{3*4AWG+1*4AWG}

^1,6

^2.12

¹⁸⁶⁰

^5.19

^1.14

³³¹

¹⁰⁰

⁸⁰

^{3*4AWG+1*4AWG}

^1,6

^2.12

¹⁸⁶⁰

⁷

^1.96

^1.14

³³⁸

¹⁰⁰

⁸⁰

^{3*2AWG+1*2AWG}

^1,6

^2.67

²⁸⁵⁰

⁷

^2.47

^1.14

⁵¹¹

¹³⁵

¹⁰⁵

^{3*1/0AWG+1*1/0AWG}

^1,6

^3.37

⁴³⁸⁰

¹⁹

^1.89

^1.52

⁸²⁴

¹⁸⁰

¹⁴⁰

^{3*2/0AWG+l*2/0AWG}

^1,6

^3.78

⁵³¹⁰

¹⁹

^2.13

^1.52

¹⁰¹⁵

²⁰⁵

¹⁶⁰

^{3*3/0AWG+l*3/0AWG}

^1,6

^4.25

⁶⁶²⁰

¹⁹

^2.39

^1.52

¹²⁵⁴

²³⁵

¹⁸⁵

^{3*4/0AWG+l*4/0AWG}

^1,6

^4.77

⁸³⁵⁰

¹⁹

^2.68

^1.52

¹⁵⁵⁴

²⁷⁵

²¹⁰

^{3*336.4+1*336.4}

^1,18

^3.47

⁸⁶⁸⁰

¹⁹

^3.38

^2.03

²³²¹

³⁷⁰

²⁸⁰

^{3*336.4+l*4/0AWG}

^1,6

^4.77

⁸³⁵⁰

¹⁹

^3.38

^2.03

²²²¹

³⁷⁰

²⁸⁰

Packing

^{Material:

Steel wooden drum (fumigation) Cable length in each drum: 500m/1000m or as per actual cable length requirements.

Drum size:

As per cable length and container size

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!}

Delivery

Port:

_{Tianjin, or other ports as per your requirements.

Sea freight:}

_{FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get

from local shipping agency.}
