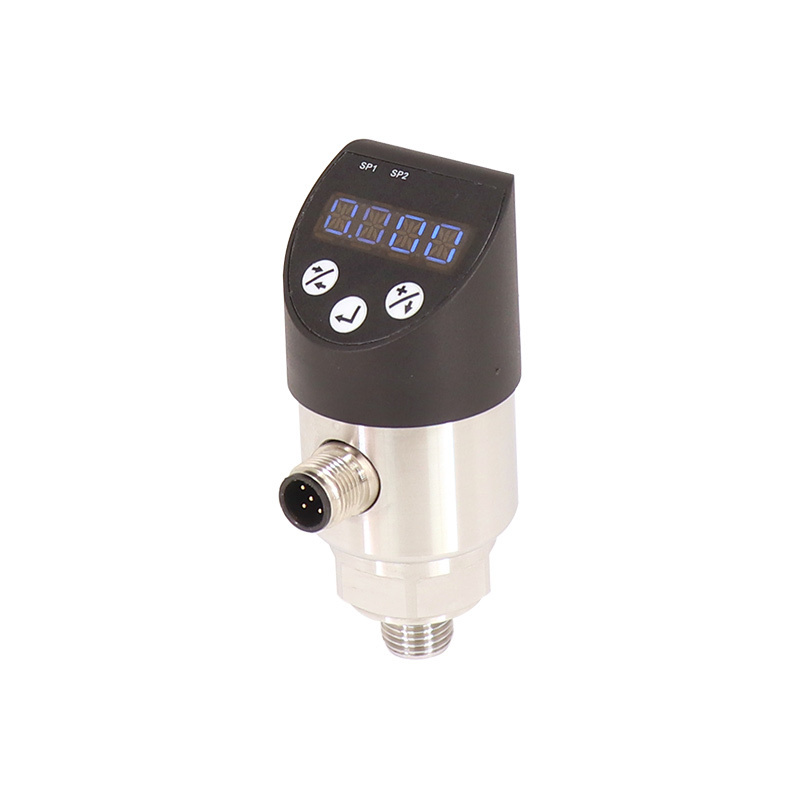

The WNk805N pressure sensor adopts an imported chipset, reflecting world-class transmitter technology. The sensitive chip is
equipped with a diffusion siliconstrain bridge, with a delicate and reliable structure. The product is widely used formeasuring
gauge or absolute pressure in fields such as aerospace,communication, water conservancy, petroleum, chemical, electricity,
meteorology.and laboratories. lt can also measure negative pressure, vacuum degree. etc. Thestructure is compact, sturdy, easy to
install and use. The zero range canbe continuously adjusted externally. with a wide migration range. suitable forvarious
occasions. all weather, harsh hazardous environments, and variouscorrosive media.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
WNK
-
Model Number:
-
WNK-805N
-
Max. Current:
-
1.0A(Max.)
-
Max. Working Pressure:
-
-100kPa~60MPa
-
Applicable media:
-
Liauid, gas, steam
-
Pressure measurement:
-
Gauge pressure, absolute pressure
-
Accuracy:
-
±0.2%FS
-
Display:
-
OLED
-
Pressure range:
-
-100kPa~60MPa
-
Stability:
-
±0.2%FS/year
-
Power Supply:
-
12...32V DC
-
Protection rating:
-
IP65
-
Process Connection:
-
M20*1.5,G1/2,G1/4,1/2NPT,G1/2,other
-
Operating Temperature:
-
0-80℃
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
30VDC
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WNK
-
Model Number:
-
WNK-805N
-
Max. Current:
-
1.0A(Max.)
-
Max. Working Pressure:
-
-100kPa~60MPa
-
Applicable media:
-
Liauid, gas, steam
-
Pressure measurement:
-
Gauge pressure, absolute pressure
-
Accuracy:
-
±0.2%FS
-
Display:
-
OLED
-
Pressure range:
-
-100kPa~60MPa
-
Stability:
-
±0.2%FS/year
-
Power Supply:
-
12...32V DC
-
Protection rating:
-
IP65
-
Process Connection:
-
M20*1.5,G1/2,G1/4,1/2NPT,G1/2,other
-
Operating Temperature:
-
0-80℃
Product Description
|
Pressure Range
|
-100KPa...60MPa
|
|
Output Signal
|
4...20mA
|
|
Accuracy
|
+0.2%FS
|
|
Applicable Media
|
Liquid/Gas
|
|
Power Supply
|
12...32V DC
|
|
Process Connection
|
M20*1.5，G1/2，G1/4，1/2NPT，G1/2，others
|
|
IP Rating
|
IP65
|
|
Electrical Connection
|
M12
|
|
Operating Temperature
|
0-80°C
|
|
Overload Pressure
|
2.5X
|
|
Burst Pressure
|
10X
|
Dimension
Application
