Quick Details
-
Dimension(L*W*H):
-
none
-
Power (kW):
-
150 kW
-
Weight (KG):
-
22500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
capacity:
-
500-1000kg/h
-
floor area:
-
260 SQ.M
-
equipped with:
-
water cooling system
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
eenor
-
Voltage:
-
220V to 510V
-
Dimension(L*W*H):
-
none
-
Power (kW):
-
150 kW
-
Weight (KG):
-
22500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
capacity:
-
500-1000kg/h
-
floor area:
-
260 SQ.M
-
equipped with:
-
water cooling system
Newest Design Waste Tire Recycling Machine For Rubber Granules
Application :
Semi-auto waste tyre recycling production line is used to make the waste tyres to rubber power and separate the fiber and steel wire, to achieve the recycling.
Structure:
| No. | Machine | Model | Quantity | Power |
| Whole tire cut processing, get <50*50mm rubber crumb | ||||
| 1 | Ring cutter | QQJ-1200 | 1 | 5.5kw |
| 2 | Steel wire separator | YQJ-295 | 1 | 15kw |
| 3 | Strip cutter | QTJ-370 | 1 | 5.5kw |
| 4 | Rim cutter | QKJ-200 | 1 | 11kw |
| Rubber power processing, get 20-30 mesh rubber power | ||||
| 5 | Tire crusher | XKP400 | 1 | 45kw |
| XKP450 | 55kw | |||
| XKP560 | 75kw | |||
| 6 | Big conveyor belt | BCL-8 | 1 | 2kw |
| 7 | Small conveyor belt | BCL-3 | 1 | 1.1kw |
| 8 | Big oscillating screen | BSS-8 | 1 | 7.5kw |
| 9 | Small oscillating screen | BSS-3 | 1 | 3KW |
| 10 | Big magnetic plant | BMS-22 | 1 | 2.2kw |
| 11 | Small magnetic plant | SMS-1 | 1 | 1.1kw |
| 12 | Fiber Separator | FS110 | 1 | 11kw |
You can according to the below data of the 3 type tyre crusher to chose:
1).XKP400 rubber crusher: Output: 4500-6000kg/24 hour for about 20 mesh granule.
2).XKP450 rubber crusher: Output :7000-12000kg/24 hour for about 20 mesh granule.
3).XKP560 rubber crusher: Output : 10000-17000kg/24 hour for about 20 mesh granule.
Features:
1), iron/steel removing ratio>99.5%, fiber removing ratio>98%
2),adopt automatic control system for whole line, reduce labor cost;
3),no sewage and waste gas discharge, environment protection.
4), available capacity range of our tyre recycling lines at present: 400~3000kg/h
5), available finial rubber powder size: 20~120mesh.

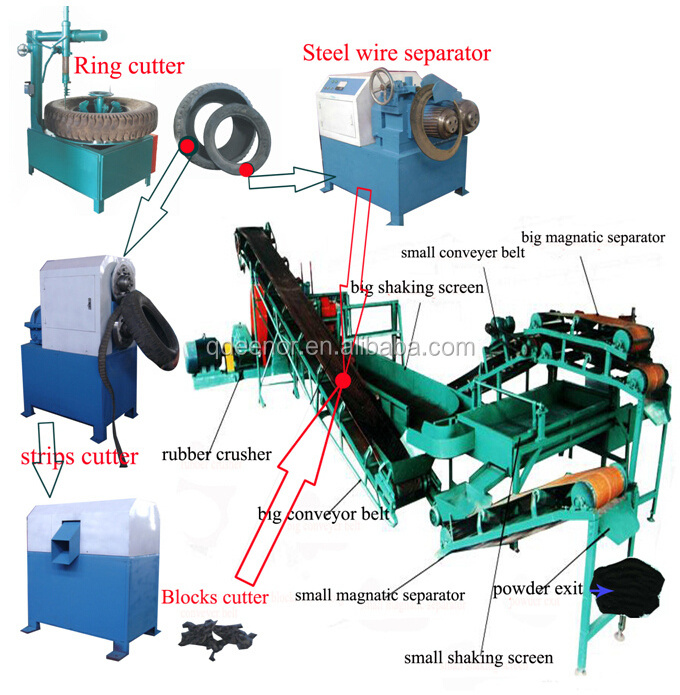

Pictures:
1. ring cutter: To cut the two sides of tyre which has steel wire ring (the steel wire ring is the main supportance for the tyre).
2. steel wire separator: To separator the tyre sides steel wire ring and rubber which is cut from the ring cutter.
3. stripe cutter: Make the whole tyre which is cutted two sides from ring cutter to stripes.
4. rim cutter: To make the stripe to block.
5. tyre crusher: Milling the rubber block to power.
6. conveyor belt, oscillating screen, magnetic roller: To separator the iron power and rubber power and screening the rubber power, make the big rubber power re-milling.
7. fiber separator: separator the fiber from rubber power.
Packing:
