Quick Details
-
Model Number:
-
YE3-225M-4
-
Frequency:
-
50HZ/60HZ
-
Product Name:
-
Three Phase Induction Motor Electric Motor
-
Certification:
-
CCC CE
-
Application:
-
General Machinery
-
Usage:
-
Electric Tool
-
Rated Voltage:
-
380V/50HZ
-
Rated Power:
-
0.75kW~315kW
-
Insulation grade:
-
F
-
Protection class:
-
IP55
-
Speed:
-
750-1000-1500-3000 R/min
-
Color:
-
Customer Request
Quick Details
-
AC Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gexin
-
Model Number:
-
YE3-225M-4
-
Frequency:
-
50HZ/60HZ
-
Product Name:
-
Three Phase Induction Motor Electric Motor
-
Certification:
-
CCC CE
-
Application:
-
General Machinery
-
Usage:
-
Electric Tool
-
Rated Voltage:
-
380V/50HZ
-
Rated Power:
-
0.75kW~315kW
-
Insulation grade:
-
F
-
Protection class:
-
IP55
-
Speed:
-
750-1000-1500-3000 R/min
-
Color:
-
Customer Request

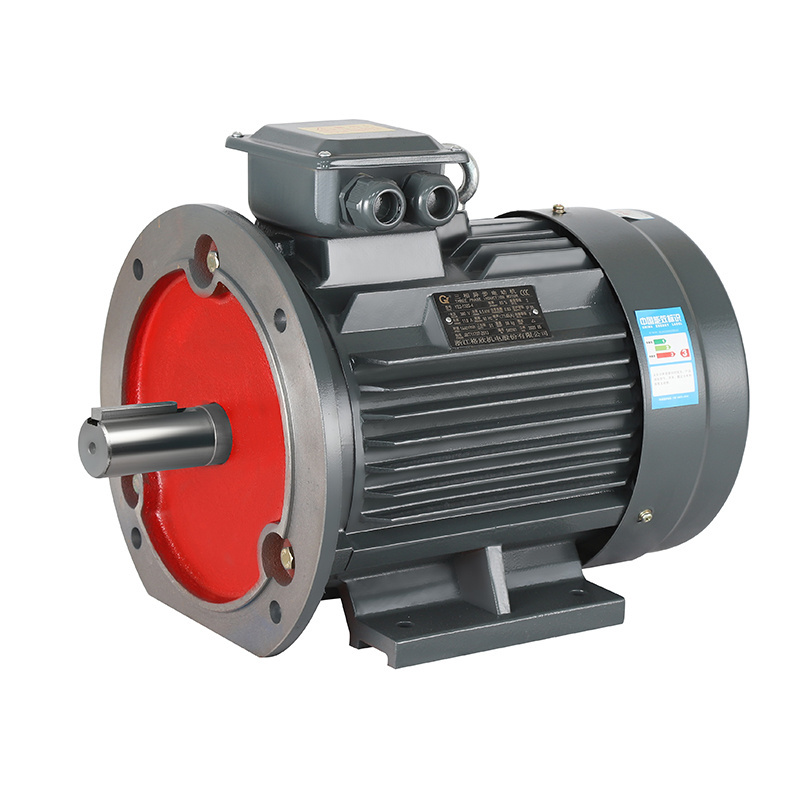

YE3 Three-phase Asynchronous AC Induction Motor
Related Products
Products Details
Three-phase asynchronous motor is by simultaneously access 380V three-phase AC power supply (phase difference of 120 degrees) a type of motor power, because the rotor of three-phase asynchronous motor and stator rotating magnetic field in the same direction,different speed into rotation, there is slip, so called three-phase asynchronous motor.
YE3 Series high efficiency motor is more energy saving, low carbon and environmental protection. The installation size, power level and ordinary motor are exactly the same, in line with the International Electrotechnical Commission IEC60072-1 standard, can be directly replaced to achieve the purpose of energy saving, power saving, easy to promote the market. The motor with center height H160 and above can be equipped with uninterrupted oil filling and discharging device, and the space for installing thermistor and moisture-proof heating belt is reserved, which is convenient for users to choose.
|
item
|
YE3 Three-phase Asynchronous Induction Motor
|
|
Warranty
|
1year
|
|
Place of Origin
|
China
|
|
Brand Name
|
GEXIN
|
|
Type
|
Asynchronous Motor
|
|
Frequency
|
50/60Hz
|
|
Phase
|
Three-phase
|
|
Certification
|
CCC, ce, RoHS
|
|
Protect Feature
|
Drip-proof
|
|
AC Voltage
|
380 / 220 V
|
|
Efficiency
|
Ie 3
|
|
Frame
|
63-355mm
|
|
Output
|
0.12-400kw
|
|
Efficiency
|
Ie1,Ie2,Ie3,Ie4
|
|
Poles
|
2,4,6,8,10
|
|
Protection Degree
|
IP44 IP54 IP55
|
|
Housing
|
Cast Iron,Aluminum Shell,Stainless Steel
|
|
Mount
|
B3 B5 B14 B34 B35
|
|
Transport Package
|
Carton/Wooden Case/Plywood Case/Pallet
|
|
HS Code
|
8501400000
|
