Quick Details
-
Width of bed (mm):
-
350 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
350
-
Travel (X Axis)(mm):
-
240 mm
-
Travel (Z Axis)(mm):
-
400 mm
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2600*2000*2000
-
Brand Name:
-
DRC MACHINERY
-
Model Number:
-
TCK50A
-
Voltage:
-
380V
-
Weight (KG):
-
2800
-
Marketing Type:
-
New Product 2023
-
Max. turning diameter on the bed:
-
560
-
The max. turning diameter of the slide:
-
260
-
Top distance:
-
500
-
Max. disc machining diameter:
-
400
-
Max. turning length:
-
500
-
Spindle end type:
-
A2-6
-
Hydraulic chuck:
-
10 inch
-
Guide rail form:
-
Linear Guides
-
Tailstock sleeve diameter:
-
70
-
X/Z motor torque:
-
7.5/10
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
500
-
Max. Spindle Speed (r.p.m):
-
3000 r.p.m
-
Width of bed (mm):
-
350 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
350
-
Travel (X Axis)(mm):
-
240 mm
-
Travel (Z Axis)(mm):
-
400 mm
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2600*2000*2000
-
Brand Name:
-
DRC MACHINERY
-
Model Number:
-
TCK50A
-
Voltage:
-
380V
-
Weight (KG):
-
2800
-
Marketing Type:
-
New Product 2023
-
Max. turning diameter on the bed:
-
560
-
The max. turning diameter of the slide:
-
260
-
Top distance:
-
500
-
Max. disc machining diameter:
-
400
-
Max. turning length:
-
500
-
Spindle end type:
-
A2-6
-
Hydraulic chuck:
-
10 inch
-
Guide rail form:
-
Linear Guides
-
Tailstock sleeve diameter:
-
70
-
X/Z motor torque:
-
7.5/10
Product Description

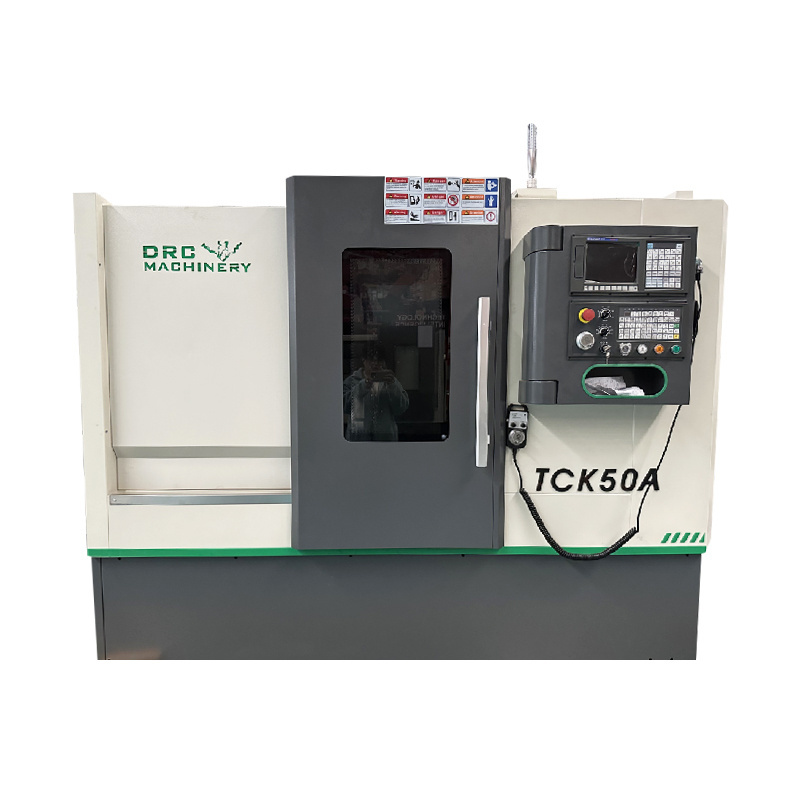

This series of machine tools is a mature product mainly exported by Dalian R&C Machinery CO.,LTD. The whole machine has compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent precision retention.
Specification
|
Parameters
|
|
Unit
|
TCK50A/500
|
|
|
Max. turning diameter on the bed
|
|
mm
|
Φ560
|
|
|
The max. turning diameter of the slide
|
|
mm
|
Φ
|
|
|
Top distance
|
|
mm
|
500
|
|
|
Max. disc machining diameter
|
|
|
Φ400
|
|
|
Max. turning length
|
|
mm
|
500
|
|
|
Spindle end type
|
|
|
A2-6
|
|
|
Spindle through hole diameter
|
|
mm
|
Φ66
|
|
|
Bar diameter
|
|
mm
|
Φ55
|
|
|
Hydraulic chuck
|
|
mm
|
10 inch
|
|
|
Hydraulic chuck pull rod through hole
|
|
mm
|
Φ55
|
|
|
Guide rail form
|
|
|
Linear Guides
|
|
|
Spindle taper
|
|
No
|
Metric 70; 1：20
|
|
|
Spindle limit speed
|
|
rpm
|
3000rpm
|
|
|
Tailstock sleeve diameter
|
|
mm
|
70
|
|
|
Tailstock sleeve inner hole taper
|
|
No
|
Mohs 5#
|
|
|
Tailstock sleeve travel
|
|
mm
|
80
|
|
|
Tailstock form
|
|
|
hydraulic
|
|
|
Tool turret
|
|
Station
|
8
|
|
|
Tool square size
|
|
mm
|
|
|
|
Screw model
|
X direction
|
|
3210
|
|
|
|
Z direction
|
|
4010
|
|
|
Guide rail model
|
X direction
|
|
RGH35CA2R680
|
|
|
|
Z direction
|
|
RGH35CA2R1120
|
|
|
X/Z motor torque
|
|
N.M
|
7.5/10
|
|
|
X/Z rapid traverse speed
|
|
m/min
|
18/18
|
|
|
X travel
|
|
mm
|
240
|
|
|
Z travel
|
|
mm
|
540
|
|
|
Min. setting unit
|
|
mm
|
0.0001
|
|
|
Main motor power
|
|
KW
|
11
|
|
|
Total power
|
|
KW
|
18
|
|
|
Machine net weight
|
|
Kg
|
3000
|
|
|
Dimensions (L×W×H)
|
|
mm
|
2700*2000*2000
|
|
